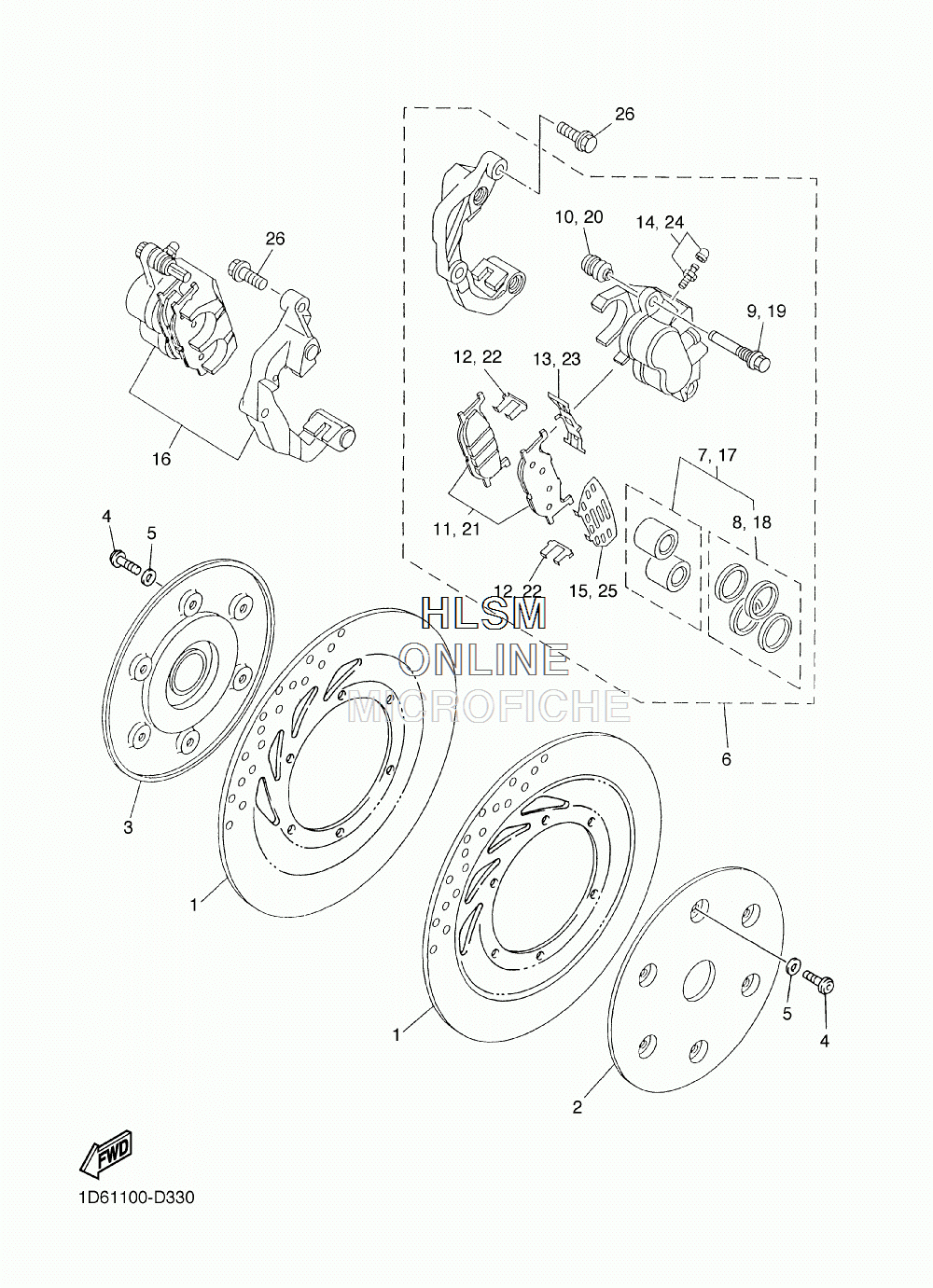

BRAKE - FRONT CALIPER для Yamaha ROYAL STAR MIDNGHT VENTURE (2C9D/2C9E) [XVZ13TFMW/C] - 2007 года выпуска`
-
№АртикулНазвание
-
15BN-2582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
24NK-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
34NK-2515A-00-00 RING, WHEEL 2RING, WHEEL 2
-
490109-08006-00 BOLTBOLT
-
590201-08014-00 WASHER, PLATEWASHER, PLATE
-
64WM-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
73JB-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
83JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
95JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
104TT-25937-00-00 ...BOOT 2...BOOT 2
-
114WM-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
124BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
133YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1451L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
155BN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
164WM-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
173JB-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
183JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
195JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
204TT-25937-00-00 ...BOOT 2...BOOT 2
-
214WM-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
224BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
233YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
2451L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
255BN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
2690105-10638-00 BOLT, FLANGEBOLT, FLANGE
