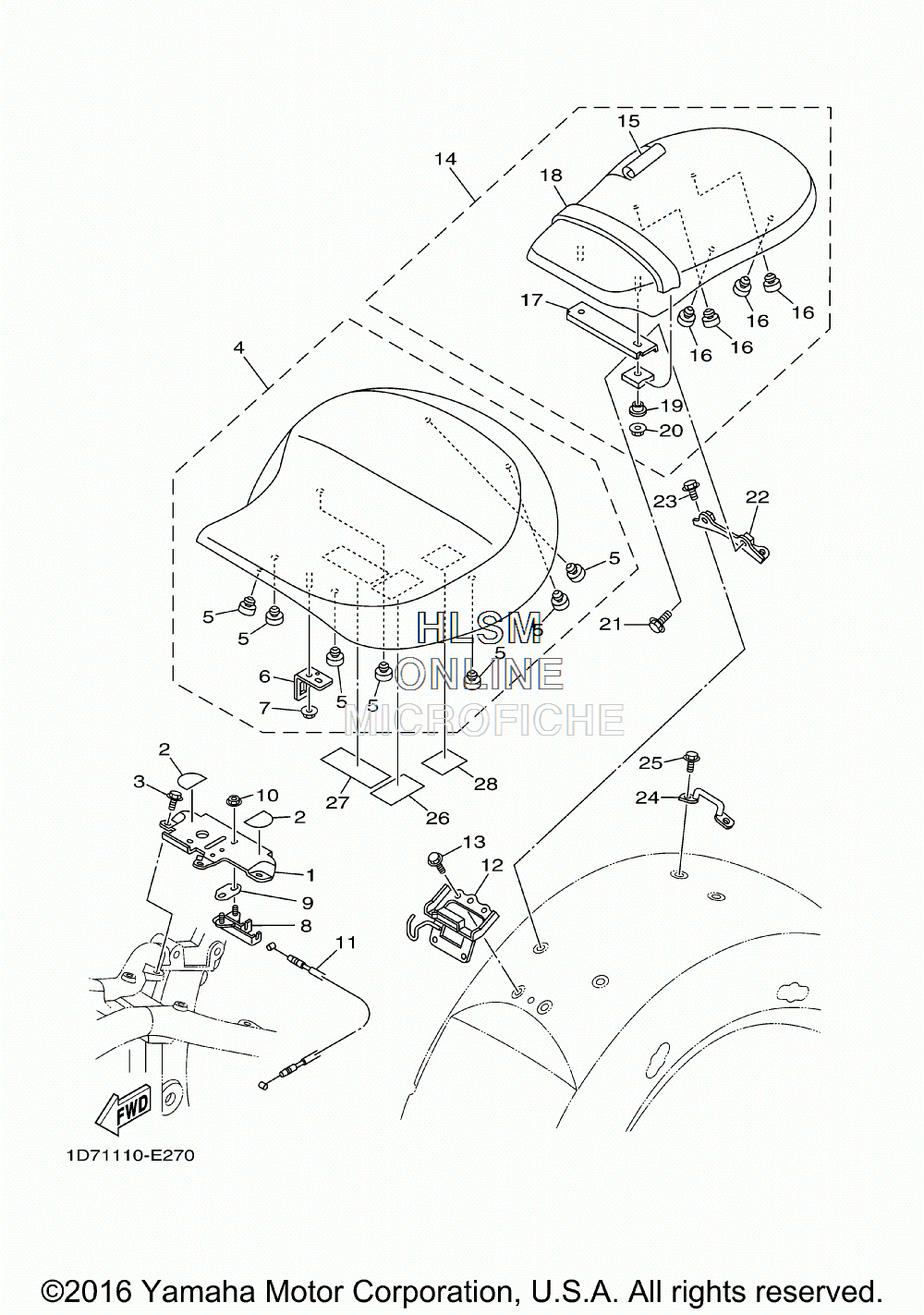

SEAT для Yamaha ROADLINER (4D45/4D46) [XV19W/C] - 2007 года выпуска`
-
№АртикулНазвание
-
11D7-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
25PX-21735-00-00 SEAL 2SEAL 2
-
390105-08485-00 BOLT, FLANGEBOLT, FLANGE
-
41D7-24710-01-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
64NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
795602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
84BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
94BP-24792-00-00 PLATEPLATE
-
1095707-06500-00 NUT, FLANGENUT, FLANGE
-
115PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
121D7-2475N-00-00 BRACKETBRACKET
-
1395022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
141D7-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
151D7-2470H-00-00 ...SEAT COVER COMP. ,2...SEAT COVER COMP. ,2
-
1622W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
171D7-2475J-00-00 ...BRACKET, SEAT LEVER 2 (NOT AVAILABLE SEPARATELY)...BRACKET, SEAT LEVER 2 (NOT AVAILABLE SEPARATELY)
-
181D7-24734-00-00 ...BAND, SEAT (NOT AVAILABLE SEPARATELY)...BAND, SEAT (NOT AVAILABLE SEPARATELY)
-
191D7-2471N-00-00 ...COLLAR 1 (NOT AVAILABLE SEPARATELY)...COLLAR 1 (NOT AVAILABLE SEPARATELY)
-
2095602-06200-00 ...NUT, SELF-LOCKING (NOT AVAILABLE SEPARATELY)...NUT, SELF-LOCKING (NOT AVAILABLE SEPARATELY)
-
2195022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
221D7-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
2395022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
241D7-2475R-00-00 BRACKET 6BRACKET 6
-
2595022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
261D7-21668-00-00 LABEL, TIRELABEL, TIRE
-
271D7-2179R-10-00 PLATE, EPA 2 (CALIFORNIA)PLATE, EPA 2 (CALIFORNIA)
-
271D7-2179W-10-00 PLATE, EPA (NON CALIFORNIA)PLATE, EPA (NON CALIFORNIA)
-
285PX-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
