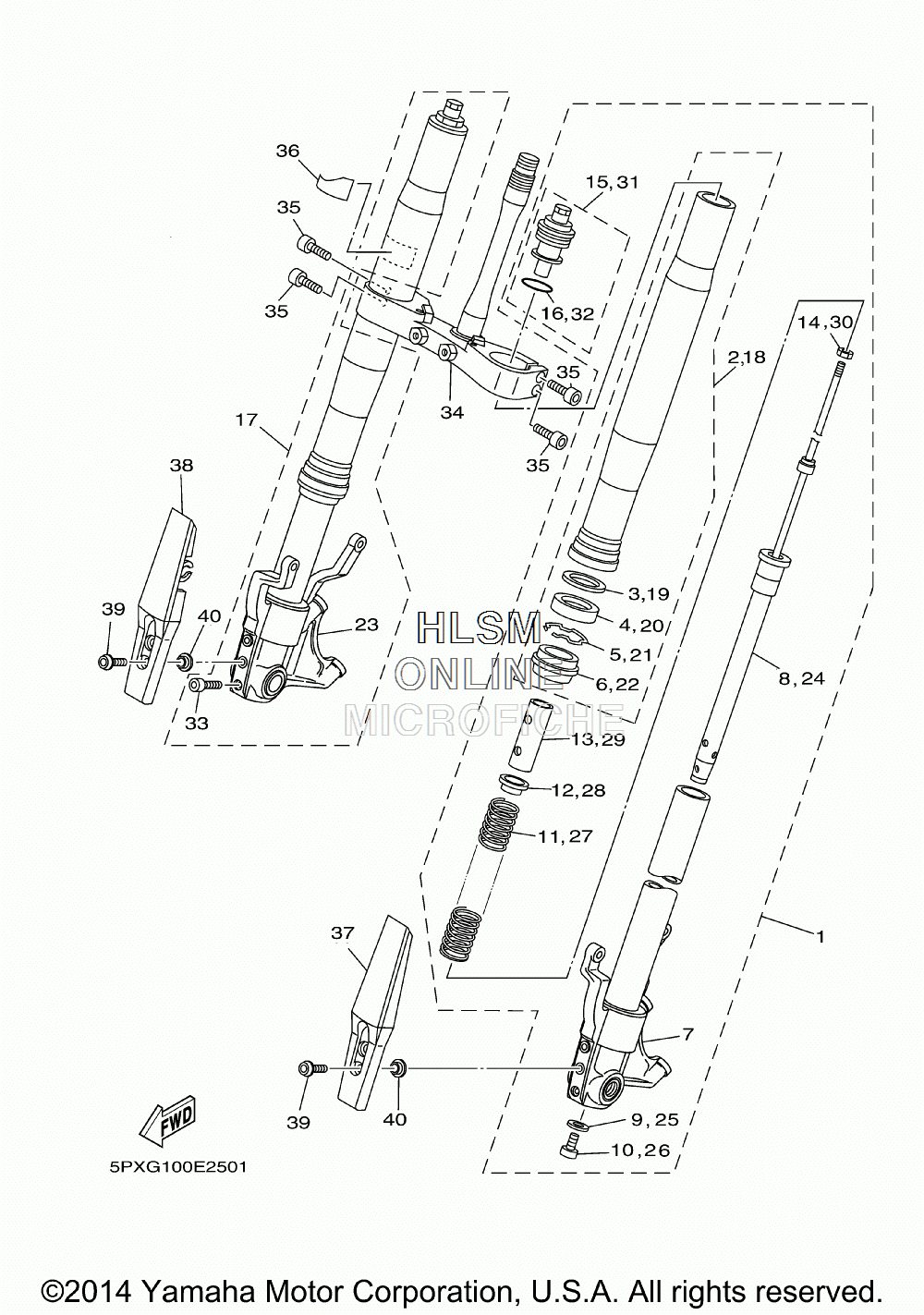

SUSPENSION - FRONT FORK для Yamaha ROAD STAR WARRIOR (5PXL) [XV17PCWC] - 2007 года выпуска`
-
№АртикулНазвание
-
15PX-23102-20-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
25PX-23136-20-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
336Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
44EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
526H-23156-00-00 ...RING, SNAP...RING, SNAP
-
64EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
75PX-23110-20-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
85PX-23170-20-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
92K8-23158-L0-00 ...GASKET...GASKET
-
103R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
115PX-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
124XV-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
134XV-23118-00-00 ...SPACER...SPACER
-
143LC-23357-00-00 ...NUT...NUT
-
155PX-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
163XJ-23147-L0-00 ......O-RING......O-RING
-
175PX-23103-20-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
185PX-23136-20-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
1936Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
204EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2126H-23156-00-00 ...RING, SNAP...RING, SNAP
-
224EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
235PX-23120-20-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
245PX-23170-20-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
252K8-23158-L0-00 ...GASKET...GASKET
-
263R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
275PX-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
284XV-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
294XV-23118-00-00 ...SPACER...SPACER
-
303LC-23357-00-00 ...NUT...NUT
-
315PX-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
323XJ-23147-L0-00 ......O-RING......O-RING
-
3391314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
345PX-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
365PX-23844-00-00 SEALSEAL
-
375PX-23123-00-7B COVER, UNDER 1 (BIB2)COVER, UNDER 1 (BIB2)
-
385PX-23133-00-7B COVER, UNDER 2 (BIB2)COVER, UNDER 2 (BIB2)
-
3991314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3990149-06298-00 SCREWSCREW
-
4090387-06050-00 COLLARCOLLAR
