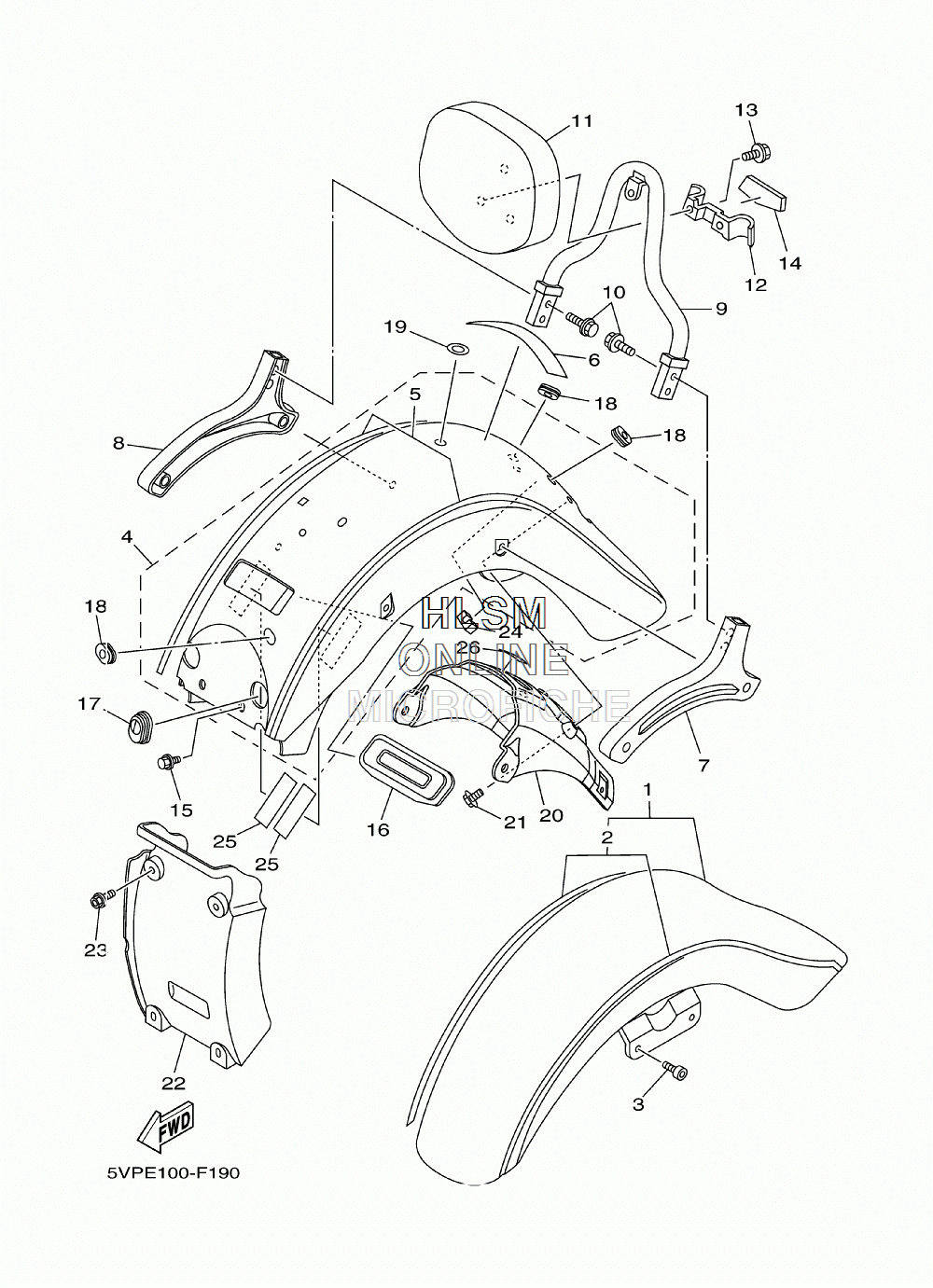

FENDER - FRONT / REAR для Yamaha ROAD STAR SILVERADO (5VPF) [XV17ATWC] - 2007 года выпуска`
-
№АртикулНазвание
-
15VN-Y2150-B0-XE FRONT FENDER ASSY (DPBMU/S3)FRONT FENDER ASSY (DPBMU/S3)
-
24WM-21570-U0-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
391314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45VN-Y2161-B0-7X REAR FENDER COMP. (DPBMU/S3)REAR FENDER COMP. (DPBMU/S3)
-
54WM-2165A-U0-00 ...GRAPHIC SET, REAR FENDER...GRAPHIC SET, REAR FENDER
-
61D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
75GA-2164A-00-00 GRIP 1GRIP 1
-
85GA-2164E-00-00 GRIP 2GRIP 2
-
95GA-2164F-00-00 STAY 1STAY 1
-
1095024-08012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
115GA-2840F-20-00 BACK REST ASSYBACK REST ASSY
-
125GA-2164G-00-00 STAY 2STAY 2
-
1395024-06010-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
145GA-24786-01-00 EMBLEMEMBLEM
-
1590119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
164WM-21649-00-00 DAMPERDAMPER
-
174WM-21638-00-00 DAMPER 1DAMPER 1
-
1890480-01015-00 GROMMETGROMMET
-
195VN-21735-00-00 SEAL 2SEAL 2
-
205VN-21643-00-00 STAY, REARSTAY, REAR
-
2190105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
224WM-21629-00-PF GUARD, MUD (FOR DPBMU)GUARD, MUD (FOR DPBMU)
-
2390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
245VN-21639-00-00 DAMPER 2DAMPER 2
-
255PW-23472-00-00 PROTECTORPROTECTOR
-
264U5-2317J-00-00 DAMPER 1DAMPER 1
