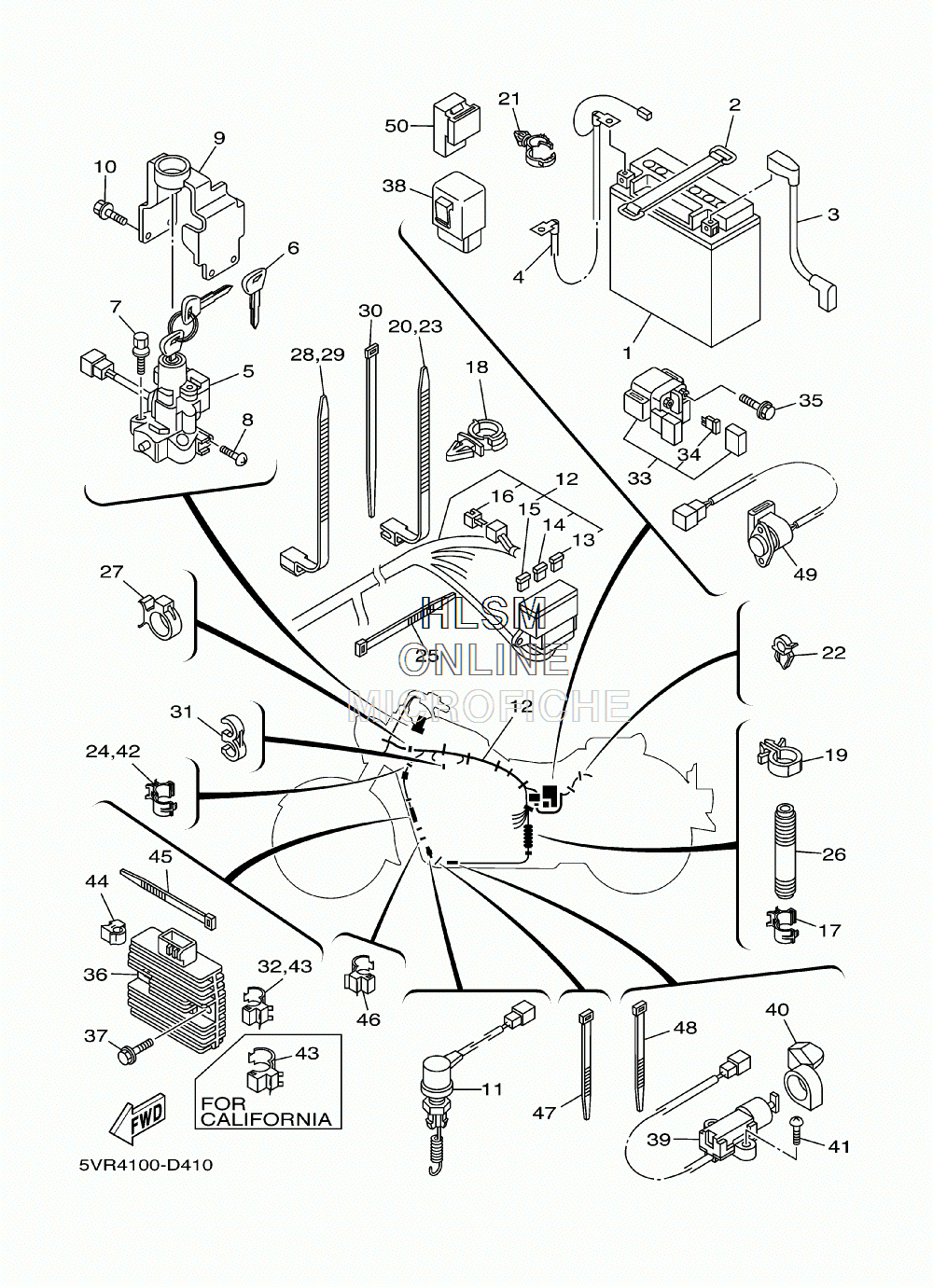

ELECTRICAL 2 для Yamaha RAOD STAR MIDNIGHT (5VRB) [XV17AMWC] - 2007 года выпуска`
-
№АртикулНазвание
-
1BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
24WM-82131-00-00 BAND, BATTERYBAND, BATTERY
-
34WM-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
44WM-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
55VN-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
65PX-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
790109-080G5-00 BOLTBOLT
-
898507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
94WM-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
1090105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
115VN-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
125VN-82590-20-00 WIRE HARNESS ASSY (EXCEPT CALIF) (5VRA)WIRE HARNESS ASSY (EXCEPT CALIF) (5VRA)
-
125VN-82590-30-00 WIRE HARNESS ASSY (CALIF ONLY) 5VRB)WIRE HARNESS ASSY (CALIF ONLY) 5VRB)
-
1342X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1436Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
151NL-82151-00-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
163WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
1790464-20191-00 CLAMPCLAMP
-
1890464-07209-00 CLAMPCLAMP
-
1990464-24230-00 CLAMPCLAMP
-
2090464-13073-00 CLAMPCLAMP
-
2190464-20181-00 CLAMPCLAMP
-
2290464-08263-00 CLAMPCLAMP
-
2390464-13073-00 CLAMPCLAMP
-
2490464-15192-00 CLAMPCLAMP
-
251UA-82591-00-00 BAND (202*4.7MM)BAND (202*4.7MM)
-
264WM-82139-00-00 TUBETUBE
-
2790464-20191-00 CLAMPCLAMP
-
2890464-12045-00 CLAMPCLAMP
-
2990464-12045-00 CLAMPCLAMP
-
3090464-32060-00 CLAMPCLAMP
-
3190464-60067-00 CLAMPCLAMP
-
3290464-10190-00 CLAMPCLAMP
-
334BH-81940-02-00 STARTER RELAY ASSY (RC19-005)STARTER RELAY ASSY (RC19-005)
-
341AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
365VN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3795807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
385KS-81950-20-00 RELAY ASSY (5KS-20)RELAY ASSY (5KS-20)
-
395VS-82566-70-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
404WM-8252U-00-00 COVERCOVER
-
4190157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4290464-15192-00 CLAMPCLAMP
-
4390464-15192-00 CLAMP (CALIF ONLY) (5VRB)CLAMP (CALIF ONLY) (5VRB)
-
4390464-10190-00 CLAMP (EXCEPT CALIF) (5VRA)CLAMP (EXCEPT CALIF) (5VRA)
-
4490464-05188-00 CLAMPCLAMP
-
451UA-82591-00-00 BAND (202*4.7MM)BAND (202*4.7MM)
-
4690464-10190-00 CLAMPCLAMP
-
471UA-82591-00-00 BAND (202*4.7MM)BAND (202*4.7MM)
-
481UA-82591-00-00 BAND (202*4.7MM)BAND (202*4.7MM)
-
495FU-82560-50-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
5029U-81950-93-00 RELAY ASSY (29U-93)RELAY ASSY (29U-93)
