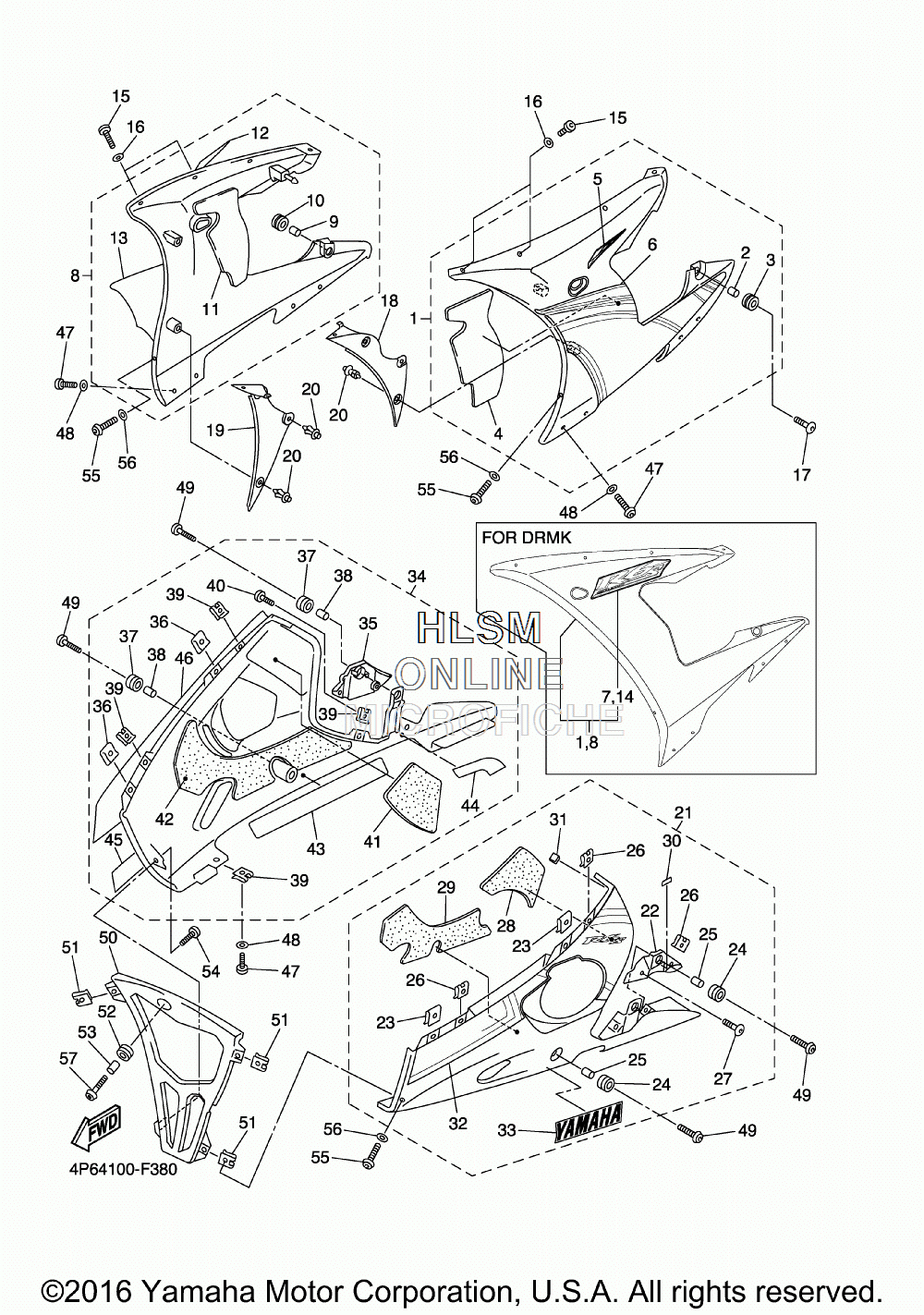

COWLING 2 для Yamaha R6S [ YZFR6SW/C] (4P64/4P65) - 2007 года выпуска
-
№АртикулНазвание
-
15SL-Y283U-M0-P1 PANEL ASSEMBLY 1 (OPT) (FOR DPBMC)PANEL ASSEMBLY 1 (OPT) (FOR DPBMC)
-
15SL-Y283U-N0-P6 PANEL ASSEMBLY 1 (OPT) (FOR DRMK)PANEL ASSEMBLY 1 (OPT) (FOR DRMK)
-
290387-06057-00 ...COLLAR...COLLAR
-
390480-14003-00 ...GROMMET...GROMMET
-
45SL-2836T-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
55AH-283B3-00-00 ...GRAPHIC 19 (FOR DPBMC)...GRAPHIC 19 (FOR DPBMC)
-
64P6-28391-00-00 ...GRAPHIC 1 (FOR DPBMC)...GRAPHIC 1 (FOR DPBMC)
-
74P6-28315-20-00 ...EMBLEM (FOR DRMK)...EMBLEM (FOR DRMK)
-
85SL-Y283V-N0-P7 PANEL ASSEMBLY 2 (OPT) (FOR DRMK)PANEL ASSEMBLY 2 (OPT) (FOR DRMK)
-
85SL-Y283V-M0-P1 PANEL ASSEMBLY 2 (OPT) (FOR DPBMC)PANEL ASSEMBLY 2 (OPT) (FOR DPBMC)
-
990387-06057-00 ...COLLAR...COLLAR
-
1090480-14003-00 ...GROMMET...GROMMET
-
115SL-2836U-00-00 ...DAMPER, LOCATING 2...DAMPER, LOCATING 2
-
125AH-283B4-00-00 ...GRAPHIC 20 (FOR DPBMC)...GRAPHIC 20 (FOR DPBMC)
-
134P6-28392-00-00 ...GRAPHIC 2 (FOR DPBMC)...GRAPHIC 2 (FOR DPBMC)
-
144P6-28315-20-00 ...EMBLEM (FOR DRMK)...EMBLEM (FOR DRMK)
-
1590111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690202-05180-00 WASHER, PLATEWASHER, PLATE
-
1790111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
185SL-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
195SL-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
2090269-06008-00 RIVETRIVET
-
215SL-Y2808-B0-P5 COVER ASSY, UNDER (DBNM8 FOR DPBMC)COVER ASSY, UNDER (DBNM8 FOR DPBMC)
-
215SL-Y2808-10-P1 COVER ASSY, UNDER (MBL2 FOR DRMK)COVER ASSY, UNDER (MBL2 FOR DRMK)
-
225SL-2843J-00-00 ...COVER 3...COVER 3
-
2390183-05024-00 ...NUT, SPRING...NUT, SPRING
-
2490480-14003-00 ...GROMMET...GROMMET
-
2590387-06057-00 ...COLLAR...COLLAR
-
2690183-05061-00 ...NUT, SPRING...NUT, SPRING
-
2790111-05002-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
285SL-2834E-00-00 ...DAMPER 3...DAMPER 3
-
295SL-2837J-00-00 ...DAMPER 5...DAMPER 5
-
301HX-27415-00-00 ...PLATE, DAMPER...PLATE, DAMPER
-
315SL-21649-00-00 ...DAMPER...DAMPER
-
324P6-283A1-00-00 ...GRAPHIC, UNDER COVER 1 (FOR DPBMC)...GRAPHIC, UNDER COVER 1 (FOR DPBMC)
-
3399241-00280-00 ...EMBLEM, YAMAHA (OPT) (FOR DPBMC)...EMBLEM, YAMAHA (OPT) (FOR DPBMC)
-
3399246-00280-00 ...EMBLEM, YAMAHA (OPT) (FOR DRMK)...EMBLEM, YAMAHA (OPT) (FOR DRMK)
-
345SL-Y2809-10-P1 COVER ASSY 2, UNDER (MBL2 FOR DRMK)COVER ASSY 2, UNDER (MBL2 FOR DRMK)
-
345SL-Y2809-C0-P5 COVER ASSY 2, UNDER (DBNM8 FOR DPBMC)COVER ASSY 2, UNDER (DBNM8 FOR DPBMC)
-
355SL-2844J-00-00 ...COVER 4...COVER 4
-
3690183-05024-00 ...NUT, SPRING...NUT, SPRING
-
3790480-14003-00 ...GROMMET...GROMMET
-
3890387-06057-00 ...COLLAR...COLLAR
-
3990183-05061-00 ...NUT, SPRING...NUT, SPRING
-
4090111-05002-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
415SL-2834F-00-00 ...DAMPER...DAMPER
-
425SL-2837K-00-00 ...DAMPER 6...DAMPER 6
-
435SL-2838G-00-00 ...SEAT 1...SEAT 1
-
445SL-2848K-00-00 ...SEAT 2...SEAT 2
-
4599246-00280-00 ...EMBLEM, YAMAHA (OPT) (FOR DRMK)...EMBLEM, YAMAHA (OPT) (FOR DRMK)
-
4599241-00280-00 ...EMBLEM, YAMAHA (OPT) (FOR DPBMC)...EMBLEM, YAMAHA (OPT) (FOR DPBMC)
-
464P6-283A2-00-00 ...GRAPHIC, UNDER COVER 2 (FOR DPBMC)...GRAPHIC, UNDER COVER 2 (FOR DPBMC)
-
4790111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4890202-05180-00 WASHER, PLATEWASHER, PLATE
-
4990111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
505SL-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
5190183-05061-00 NUT, SPRINGNUT, SPRING
-
5290480-14003-00 GROMMETGROMMET
-
5390387-06057-00 COLLARCOLLAR
-
5497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5590111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5690202-05180-00 WASHER, PLATEWASHER, PLATE
-
5790111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
