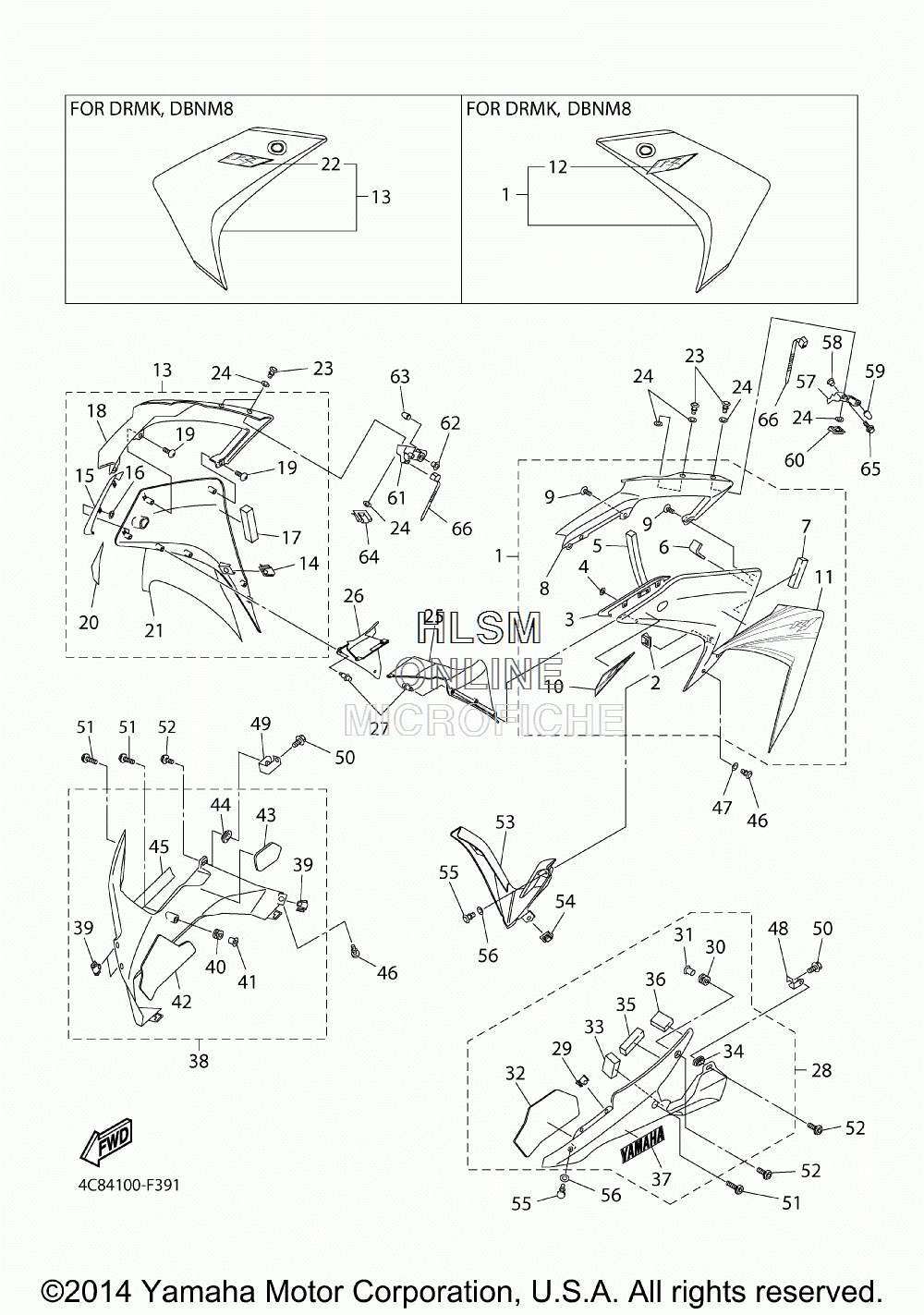

COWLING 2 для Yamaha R1 (4C84/4C85) [YZFR1W/C] - 2007 года выпуска

№

Артикул

Название
1

4C8-Y283U-00-P0 PANEL ASSEMBLY 1 (OPT) (FOR DPBMC)

PANEL ASSEMBLY 1 (OPT) (FOR DPBMC)
1

4C8-Y283U-30-P3 PANEL ASSEMBLY 1 (OPT) (MBL2 FOR DRMK)

PANEL ASSEMBLY 1 (OPT) (MBL2 FOR DRMK)
1

4C8-Y283U-40-P3 PANEL ASSEMBLY 1 (OPT) (MBL2 FOR DBNM8)

PANEL ASSEMBLY 1 (OPT) (MBL2 FOR DBNM8)
2

5PW-2177L-00-00 ...PLATE, SPRING

...PLATE, SPRING
3

4C8-28219-00-00 ...COVER 1

...COVER 1
4

90183-05M02-00 ...NUT, SPRING

...NUT, SPRING
5

4C8-28425-00-00 ...DAMPER 3

...DAMPER 3
6

4C8-28435-00-00 ...DAMPER 4

...DAMPER 4
7

4C8-28217-00-00 ...DAMPER 1

...DAMPER 1
8

4C8-2117V-00-P0 ...COVER 7 (OPT) (FOR DPBMC)

...COVER 7 (OPT) (FOR DPBMC)
8

4C8-2117V-00-P3 ...COVER 7 (OPT) (FOR DRMK)

...COVER 7 (OPT) (FOR DRMK)
8

4C8-2117V-00-P4 ...COVER 7 (OPT) (FOR DBNM8)

...COVER 7 (OPT) (FOR DBNM8)
9

97702-50016-00 ...SCREW, TAPPING

...SCREW, TAPPING
10

4C8-283B3-00-00 ...GRAPHIC 19 (FOR DPBMC)

...GRAPHIC 19 (FOR DPBMC)
11

4C8-28391-00-00 ...GRAPHIC 1 (FOR DPBMC)

...GRAPHIC 1 (FOR DPBMC)
12

4C8-28328-00-00 ...EMBLEM (FOR DRMK, DBNM8)

...EMBLEM (FOR DRMK, DBNM8)
13

4C8-Y283V-00-P0 PANEL ASSEMBLY 2 (OPT) (FOR DPBMC)

PANEL ASSEMBLY 2 (OPT) (FOR DPBMC)
13

4C8-Y283V-30-P3 PANEL ASSEMBLY 2 (OPT) (MBL2 FOR DRMK)

PANEL ASSEMBLY 2 (OPT) (MBL2 FOR DRMK)
13

4C8-Y283V-40-P3 PANEL ASSEMBLY 2 (OPT) (MBL2 FOR DBNM8)

PANEL ASSEMBLY 2 (OPT) (MBL2 FOR DBNM8)
14

5PW-2177L-00-00 ...PLATE, SPRING

...PLATE, SPRING
15

4C8-28229-00-00 ...COVER 2

...COVER 2
16

90183-05M02-00 ...NUT, SPRING

...NUT, SPRING
17

4C8-2847N-00-00 ...DAMPER 8

...DAMPER 8
18

4C8-2117W-00-P0 ...COVER 8 (OPT) (FOR DPBMC)

...COVER 8 (OPT) (FOR DPBMC)
18

4C8-2117W-00-P3 ...COVER 8 (OPT) (FOR DRMK)

...COVER 8 (OPT) (FOR DRMK)
18

4C8-2117W-00-P4 ...COVER 8 (OPT) (FOR DBNM8)

...COVER 8 (OPT) (FOR DBNM8)
19

97702-50016-00 ...SCREW, TAPPING

...SCREW, TAPPING
20

4C8-283B4-00-00 ...GRAPHIC 20 (FOR DPBMC)

...GRAPHIC 20 (FOR DPBMC)
21

4C8-28392-00-00 ...GRAPHIC 2 (FOR DPBMC)

...GRAPHIC 2 (FOR DPBMC)
22

4C8-28328-00-00 ...EMBLEM (FOR DRMK, DBNM8)

...EMBLEM (FOR DRMK, DBNM8)
23

5PW-28386-00-00 HEAD

HEAD
24

2TK-21757-00-00 WASHER, SPECIAL 1

WASHER, SPECIAL 1
25

4C8-2836K-00-00 PANEL, INNER 1

PANEL, INNER 1
26

4C8-2836L-00-00 PANEL, INNER 2

PANEL, INNER 2
27

90269-06008-00 RIVET

RIVET
28

4C8-Y2808-00-P0 COVER ASSY, UNDER (DBNM8 FOR DPBMC)

COVER ASSY, UNDER (DBNM8 FOR DPBMC)
28

4C8-Y2808-30-P3 COVER ASSY, UNDER (FOR DRMK)

COVER ASSY, UNDER (FOR DRMK)
28

4C8-Y2808-40-P0 COVER ASSY, UNDER (FOR DBNM8)

COVER ASSY, UNDER (FOR DBNM8)
29

5PW-2177L-00-00 ...PLATE, SPRING

...PLATE, SPRING
30

90480-12596-00 ...GROMMET

...GROMMET
31

90387-065J6-00 ...COLLAR

...COLLAR
32

4C8-2848L-00-00 ...SEAT 3

...SEAT 3
33

4C8-2837J-00-00 ...DAMPER 5

...DAMPER 5
34

5TA-21749-00-00 ...COLLAR

...COLLAR
35

4C8-28415-00-00 ...DAMPER 1

...DAMPER 1
36

4C8-28416-00-00 ...DAMPER 2

...DAMPER 2
37

4C8-2153E-00-00 ...EMBLEM, YAMAHA (OPT) (FOR DPBMC)

...EMBLEM, YAMAHA (OPT) (FOR DPBMC)
37

4C8-2153E-30-00 ...EMBLEM, YAMAHA (OPT) (FOR DRMK)

...EMBLEM, YAMAHA (OPT) (FOR DRMK)
37

4C8-2153E-40-00 ...EMBLEM, YAMAHA (OPT) (FOR DBNM8)

...EMBLEM, YAMAHA (OPT) (FOR DBNM8)
38

4C8-Y2809-00-P0 COVER ASSY 2, UNDER (DBNM8 FOR DPBMC)

COVER ASSY 2, UNDER (DBNM8 FOR DPBMC)
38

4C8-Y2809-30-P3 COVER ASSY 2, UNDER (FOR DRMK)

COVER ASSY 2, UNDER (FOR DRMK)
38

4C8-Y2809-40-P0 COVER ASSY 2, UNDER (FOR DBNM8)

COVER ASSY 2, UNDER (FOR DBNM8)
39

5PW-2177L-00-00 ...PLATE, SPRING

...PLATE, SPRING
40

90480-12596-00 ...GROMMET

...GROMMET
41

90387-065J6-00 ...COLLAR

...COLLAR
42

4C8-2848M-00-00 ...SEAT 4

...SEAT 4
43

4C8-2848P-00-00 ...SEAT 6

...SEAT 6
44

5TA-21749-00-00 ...COLLAR

...COLLAR
45

4C8-2153E-00-00 ...EMBLEM, YAMAHA (OPT) (FOR DPBMC)

...EMBLEM, YAMAHA (OPT) (FOR DPBMC)
45

4C8-2153E-30-00 ...EMBLEM, YAMAHA (OPT) (FOR DRMK)

...EMBLEM, YAMAHA (OPT) (FOR DRMK)
45

4C8-2153E-40-00 ...EMBLEM, YAMAHA (OPT) (FOR DBNM8)

...EMBLEM, YAMAHA (OPT) (FOR DBNM8)
46

5PW-28386-00-00 HEAD

HEAD
47

2TK-21757-00-00 WASHER, SPECIAL 1

WASHER, SPECIAL 1
48

4C8-2836A-00-00 BRACKET 1

BRACKET 1
49

4C8-2836E-00-00 BRACKET 2

BRACKET 2
50

90109-06056-00 BOLT

BOLT
51

90111-06030-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
52

90149-06105-00 SCREW

SCREW
53

4C8-2836M-00-00 PANEL, INNER 3

PANEL, INNER 3
54

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
55

5PW-28386-00-00 HEAD

HEAD
56

2TK-21757-00-00 WASHER, SPECIAL 1

WASHER, SPECIAL 1
57

4C8-2836F-00-00 BRACKET 3

BRACKET 3
58

90387-06681-00 COLLAR

COLLAR
59

2MG-21639-00-00 DAMPER 2

DAMPER 2
60

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
61

4C8-2836G-00-00 BRACKET 4

BRACKET 4
62

90387-06681-00 COLLAR

COLLAR
63

2MG-21639-00-00 DAMPER 2

DAMPER 2
64

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
65

90119-06052-00 BOLT, WITH WASHER

BOLT, WITH WASHER
66

90464-13077-00 CLAMP

CLAMP
