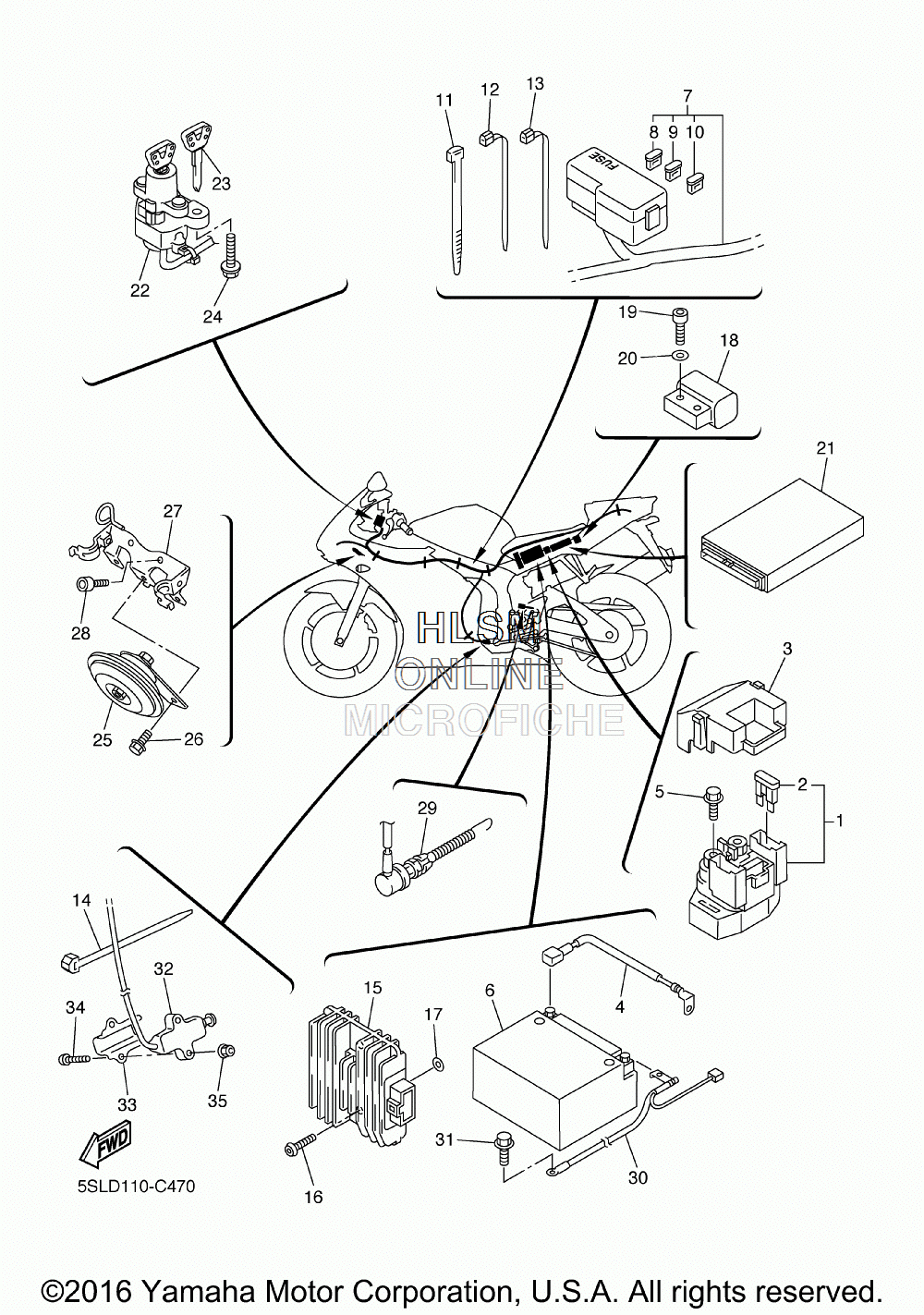

ELECTRICAL 2 для Yamaha YZF-R6S - 2006 года выпуска`
-
№АртикулНазвание
-
15SL-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
25EA-82151-00-00 ...FUSE (40A-BL)...FUSE (40A-BL)
-
35SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
45SL-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
65FL-82100-01-00 BATTERY ASSY (GT9B-4)BATTERY ASSY (GT9B-4)
-
75SL-82590-30-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
85JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
95JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
105JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1190464-15195-00 CLAMPCLAMP
-
123MA-82591-00-00 BANDBAND
-
1390464-13077-00 CLAMPCLAMP
-
1490464-13073-00 CLAMPCLAMP
-
155SL-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1692017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790202-06001-00 WASHER, PLATEWASHER, PLATE
-
185PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
1991317-04025-00 BOLTBOLT
-
2090201-042E0-00 WASHER, PLATEWASHER, PLATE
-
215SL-8591A-60-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
225SL-82501-11-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
234BH-82511-09-00 BLANK KEYBLANK KEY
-
2490109-080G5-00 BOLTBOLT
-
254TH-83371-00-00 HORNHORN
-
2695807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
275SL-23377-00-00 BRACKET, HORNBRACKET, HORN
-
2891317-06012-00 BOLTBOLT
-
295SL-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
305SL-82116-01-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
3191380-06012-00 BOLTBOLT
-
325PX-82566-71-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
335JJ-82388-00-00 PLATEPLATE
-
3492017-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3595607-05200-00 NUT, U FLANGENUT, U FLANGE
