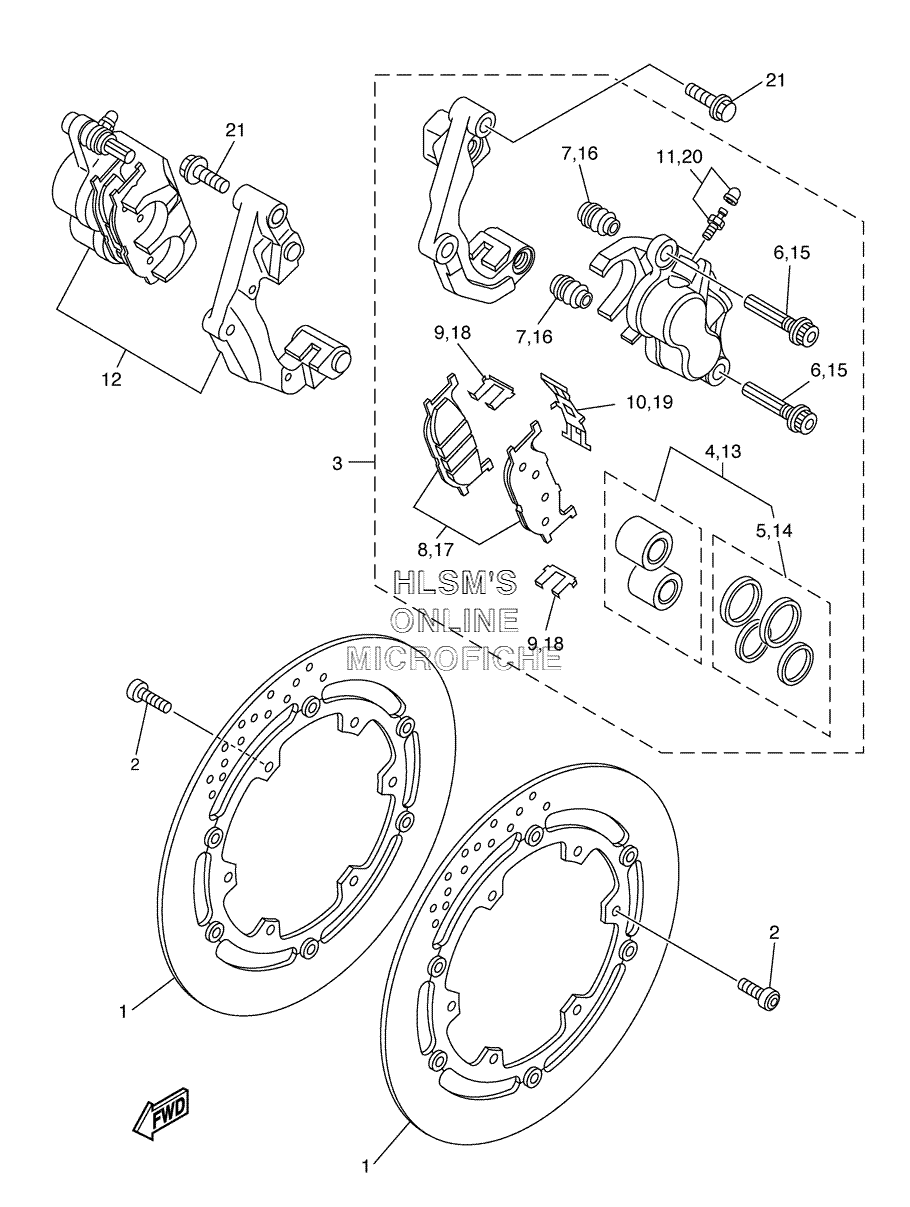

BRAKE - FRONT CALIPER для Yamaha V STAR 1100 CLASSIC - 2006 года выпуска`
-
№АртикулНазвание
-
15PX-2581T-10-00 DISK BRAKE ASSYDISK BRAKE ASSY
-
290109-083G4-00 BOLTBOLT
-
35KS-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45KS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
54FU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
84EB-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
103YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1151L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
125KS-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
135KS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
144FU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
155JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
164TT-25937-00-00 ...BOOT 2...BOOT 2
-
174EB-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
184BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
193YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
2051L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
2190105-10638-00 BOLT, FLANGEBOLT, FLANGE
