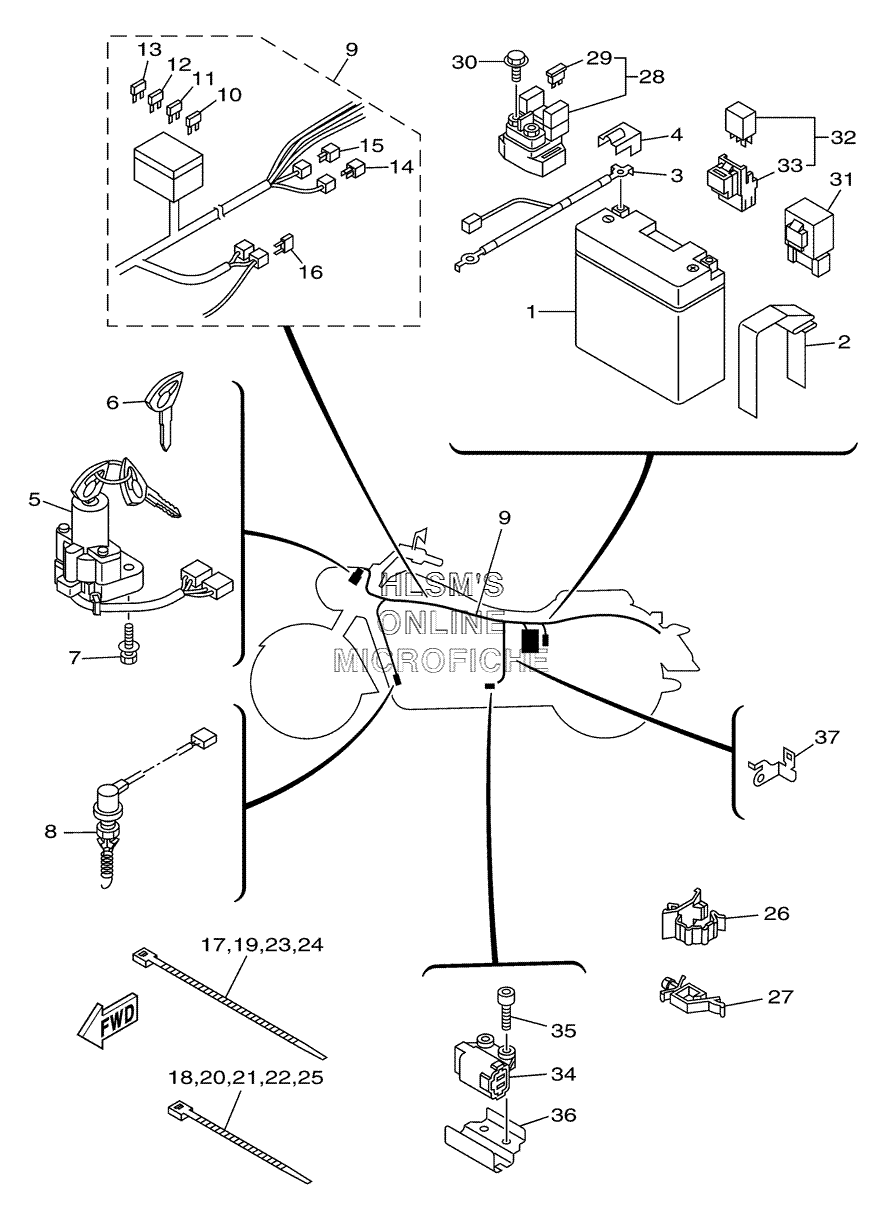

ELECTRICAL 2 для Yamaha STRATOLINER - 2006 года выпуска`
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
24AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
31D7-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
41D7-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
51D7-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
65PX-82511-09-00 BLANK KEYBLANK KEY
-
790109-080G5-00 BOLTBOLT
-
81D7-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
91D7-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
105JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
115JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
125JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
135JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
143XV-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
153WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
165JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
173MA-82591-00-00 BANDBAND
-
181UA-82591-00-00 BANDBAND
-
193MA-82591-00-00 BANDBAND
-
201UA-82591-00-00 BANDBAND
-
211UA-82591-00-00 BANDBAND
-
221UA-82591-00-00 BANDBAND
-
233MA-82591-00-00 BANDBAND
-
243MA-82591-00-00 BANDBAND
-
251UA-82591-00-00 BANDBAND
-
2690464-20002-00 CLAMPCLAMP
-
2790464-16021-00 CLAMPCLAMP
-
285JW-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2936Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
3095027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
315VK-81950-30-00 RELAY ASSYRELAY ASSY
-
325EA-81950-20-00 RELAY ASSYRELAY ASSY
-
335EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
345PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
3590110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
361D7-82388-00-00 PLATEPLATE
-
371D7-82581-00-00 STAY, CORD CLAMPSTAY, CORD CLAMP
