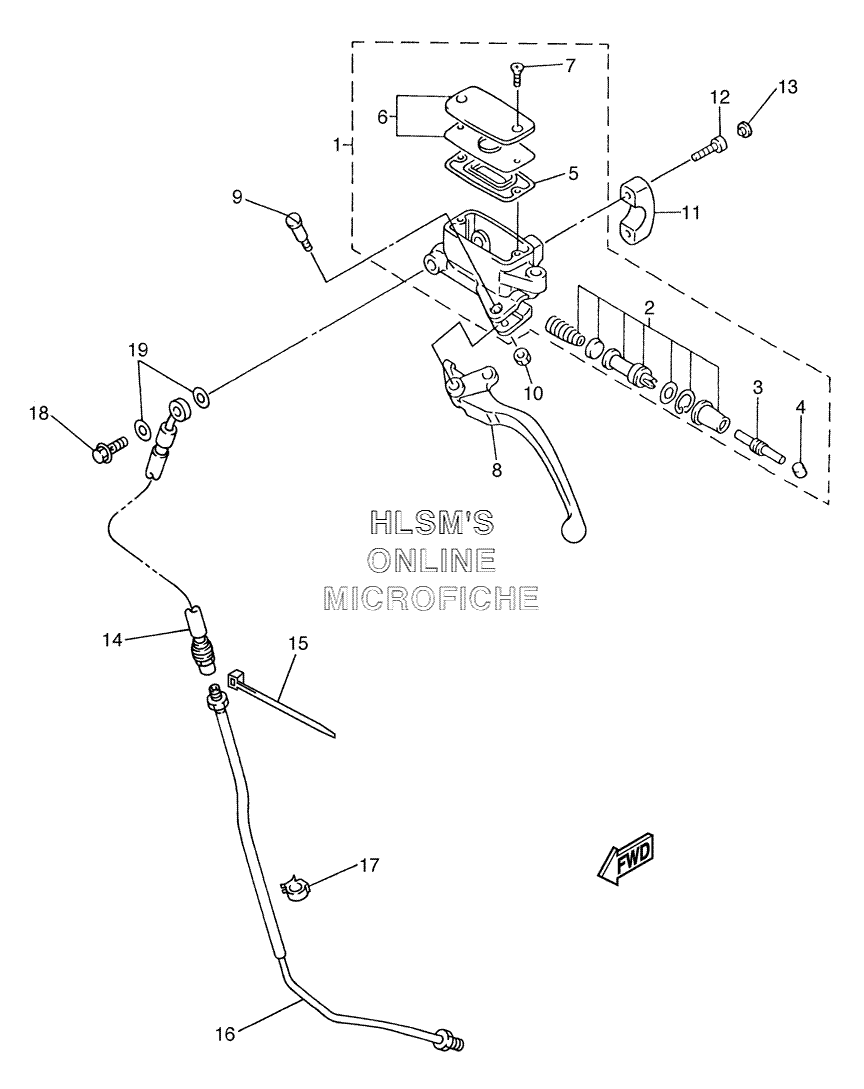

CLUTCH - MASTER CYLINDER W/ MIRROR для Yamaha ROYAL STAR VENTURE - 2006 года выпуска`
-
№АртикулНазвание
-
14NK-W2645-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
23GM-W0099-00-00 ...CYLINDER KIT, MASTER (CLUTCH...CYLINDER KIT, MASTER (CLUTCH
-
33GM-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
43GM-26455-00-00 ...BUSH...BUSH
-
54NK-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
64NK-W2585-01-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
74NK-2589H-00-00 ...SCREW...SCREW
-
81D6-83912-00-00 LEVER 1LEVER 1
-
94NK-83945-00-00 BOLT, LEVERBOLT, LEVER
-
1095604-06100-00 NUT, UNUT, U
-
114NK-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1291314-06025-00 BOLTBOLT
-
1390338-06162-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
144XY-26472-00-00 HOSE, CLUTCH 1HOSE, CLUTCH 1
-
1590464-16061-00 CLAMPCLAMP
-
164XY-26471-00-00 PIPEPIPE
-
1790464-10190-00 CLAMPCLAMP
-
1890401-10159-00 BOLT, UNIONBOLT, UNION
-
1990201-10118-00 WASHER, PLATEWASHER, PLATE
