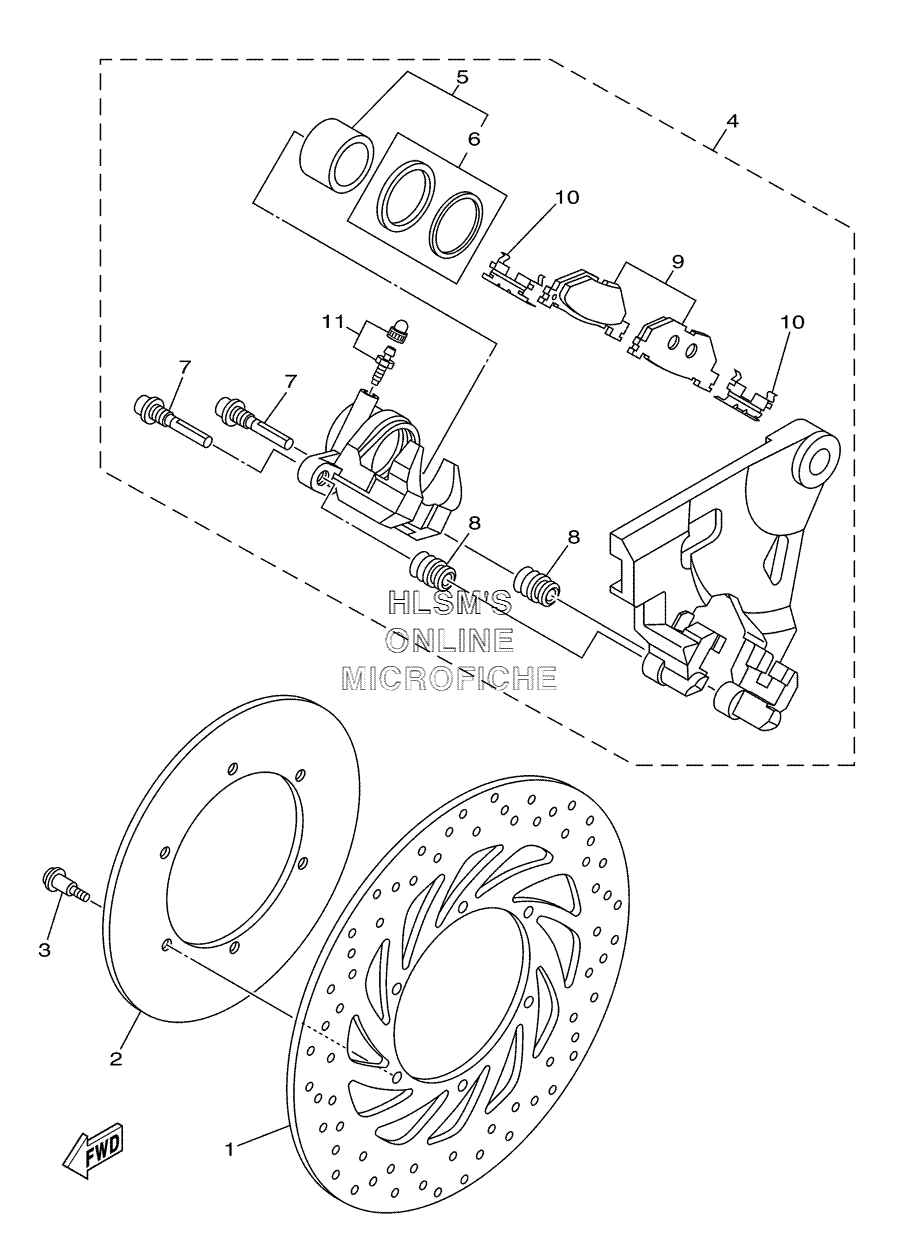

BRAKE - REAR CALIPER для Yamaha ROADLINER S - 2006 года выпуска`
-
№АртикулНазвание
-
11D7-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
21D7-2581A-00-00 PLATE, DISCPLATE, DISC
-
390109-06049-00 BOLTBOLT
-
41D7-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
51D7-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
65JW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
75JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
84TT-25937-00-00 ...BOOT 2...BOOT 2
-
91D7-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
101D7-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1151L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
