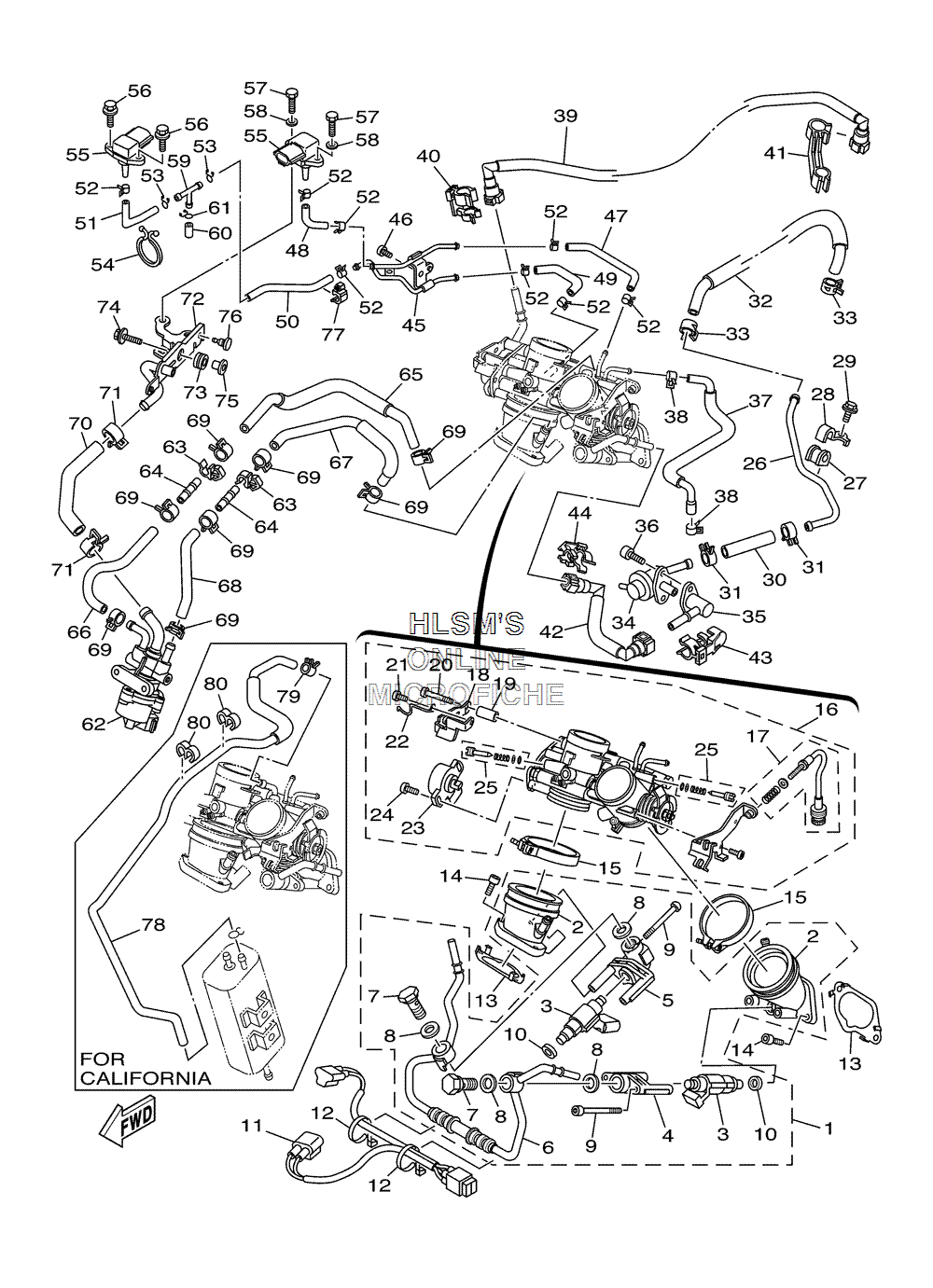

AIR CLEANER W/ INTAKE для Yamaha ROAD STAR WARRIOR W/ FLAMES - 2006 года выпуска`
-
№АртикулНазвание
-
15PX-13590-00-00 CARBURETOR JOINT ASSYCARBURETOR JOINT ASSY
-
25PX-13586-00-00 ...JOINT, CARBURETOR 1...JOINT, CARBURETOR 1
-
35FL-13761-00-00 ...INJECTOR ASSY...INJECTOR ASSY
-
45PX-14188-00-00 ...CONNECTOR...CONNECTOR
-
55PX-14189-00-00 ...CONNECTOR...CONNECTOR
-
65PX-13938-00-00 ...PIPE...PIPE
-
74BH-13573-00-00 ...BOLT 1...BOLT 1
-
890430-12219-00 ...GASKET...GASKET
-
998507-06050-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1090430-09002-00 ...GASKET...GASKET
-
115PX-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1290465-10098-00 CLAMPCLAMP
-
135PX-14239-00-00 SEALSEAL
-
1491314-06020-00 BOLTBOLT
-
1590450-57092-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
165PX-13750-01-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
165PX-13750-11-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
175PX-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
185PX-14995-00-00 ...BRACKET...BRACKET
-
195PX-14149-00-00 ...PIPE...PIPE
-
2098507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2198507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
225PX-14137-00-00 ...CLIP...CLIP
-
235PX-85885-01-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
244KM-24453-00-00 ...SCREW...SCREW
-
255JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
265PX-14295-01-00 PIPE, FUELPIPE, FUEL
-
275PX-14435-00-00 GROMMETGROMMET
-
285PX-14261-00-00 HOLDERHOLDER
-
2995027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
305PX-13973-01-00 PIPE, FUEL 3PIPE, FUEL 3
-
3190467-12003-00 CLIPCLIP
-
325PX-13974-01-00 PIPE, FUEL 4PIPE, FUEL 4
-
3390467-12003-00 CLIPCLIP
-
345PX-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
355PX-13595-00-00 JOINTJOINT
-
3691317-05016-00 BOLTBOLT
-
375PX-13544-00-00 HOSE, VACUUM SENSING 2HOSE, VACUUM SENSING 2
-
3890467-07093-00 CLIP, SCISSORCLIP, SCISSOR
-
395PX-13971-01-00 PIPE, FUEL 1PIPE, FUEL 1
-
4090464-15003-00 CLAMPCLAMP
-
4190464-15004-00 CLAMPCLAMP
-
425PX-13972-00-00 PIPE, FUEL 2PIPE, FUEL 2
-
4390464-15002-00 CLAMPCLAMP
-
4490464-15003-00 CLAMPCLAMP
-
455PX-14465-00-00 PIPEPIPE
-
4690149-06250-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
475PX-13895-00-00 HOSE, AIRHOSE, AIR
-
485PX-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
495PX-13893-00-00 HOSE, AIR 3HOSE, AIR 3
-
505PX-13894-01-00 HOSE, AIR 4HOSE, AIR 4
-
515PX-13894-12-00 HOSE, AIR 4HOSE, AIR 4
-
5290467-07093-00 CLIP, SCISSORCLIP, SCISSOR
-
5390467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
5490464-30040-00 CLAMPCLAMP
-
555JW-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
5690119-05008-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5797007-05016-00 BOLTBOLT
-
5892907-05600-00 WASHER, PLATEWASHER, PLATE
-
5990413-05014-00 WAY 3WAY 3
-
605PX-13569-00-00 PLUG, BLINDPLUG, BLIND
-
6190467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
625PX-85880-00-00 LINEAR, CONTROL VALVELINEAR, CONTROL VALVE
-
6390464-08051-00 CLAMPCLAMP
-
645PX-14466-00-00 PIPEPIPE
-
655PX-13545-00-00 HOSE 1HOSE 1
-
665PX-13546-00-00 HOSE 2HOSE 2
-
675PX-13547-00-00 HOSE 3HOSE 3
-
685PX-13548-00-00 HOSE, AIR 4HOSE, AIR 4
-
6990467-10135-00 CLIP, SCISSORCLIP, SCISSOR
-
705PX-13897-00-00 PIPE, AIRPIPE, AIR
-
7190467-15001-00 CLIPCLIP
-
725PX-14454-01-00 JOINTJOINT
-
7390480-13009-00 GROMMETGROMMET
-
7490119-06051-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7590387-061U9-00 COLLARCOLLAR
-
7690338-04208-00 PLUGPLUG
-
7790464-08051-00 CLAMPCLAMP
-
785PX-14349-00-00 PIPEPIPE
-
7990467-09037-00 CLIPCLIP
-
8090464-09M31-00 CLAMPCLAMP
