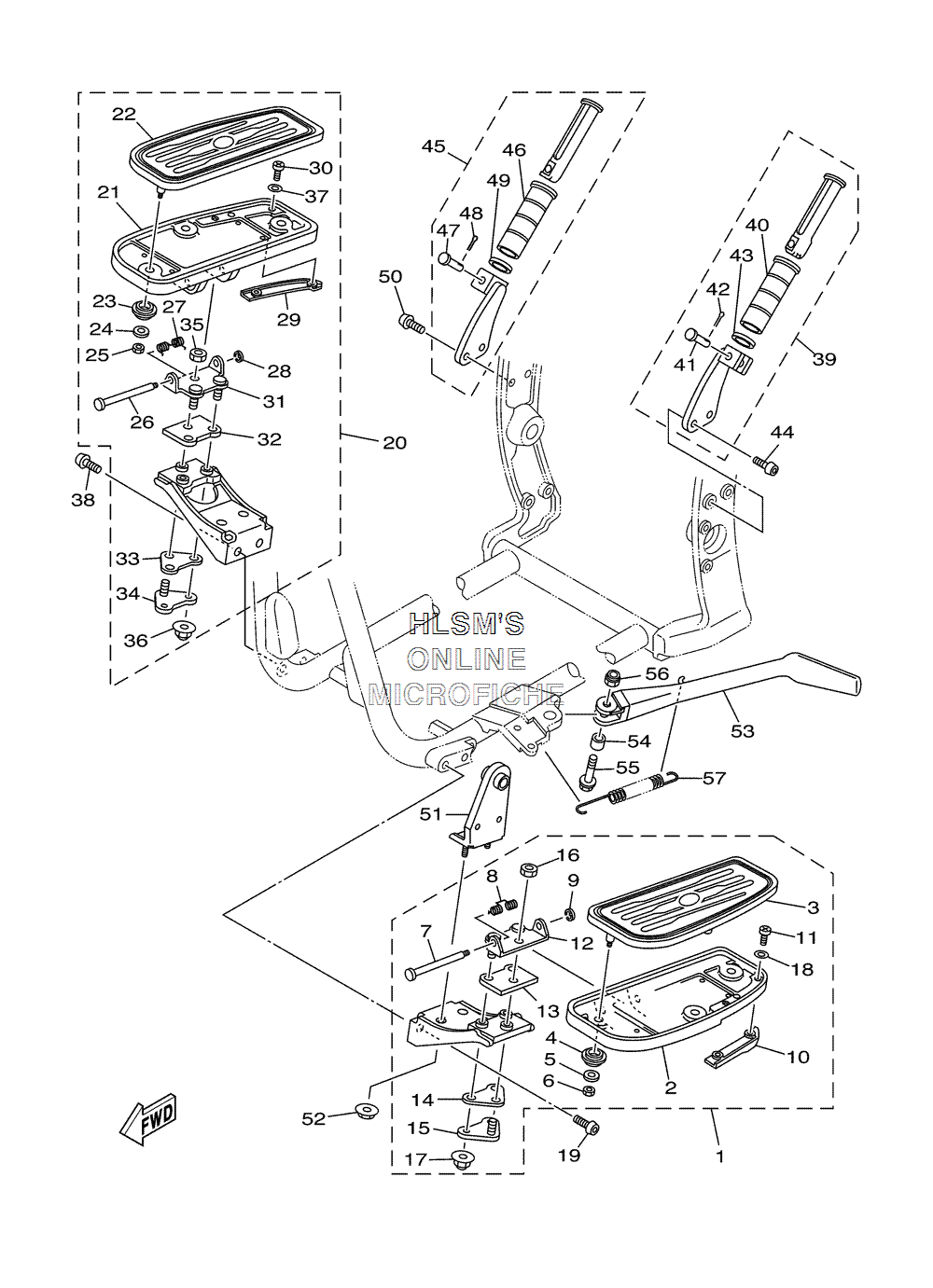

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha ROAD STAR MIDNIGHT - 2006 года выпуска`
-
№АртикулНазвание
-
15VN-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
24NK-27451-10-00 ...FOOTREST...FOOTREST
-
34WM-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
44WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
590201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
695607-05100-00 ...NUT, U...NUT, U
-
74NK-27427-00-00 ...SHAFT...SHAFT
-
84NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
999001-06600-00 ...CIRCLIP...CIRCLIP
-
104WM-27496-00-00 ...MOLE 1...MOLE 1
-
1190157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
125VN-27422-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
135VN-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
145VN-27424-00-00 ...DAMPER, FOOTREST 2...DAMPER, FOOTREST 2
-
155VN-27123-00-00 ...PLATE, SOTPPER...PLATE, SOTPPER
-
1695317-06600-00 ...NUT...NUT
-
1790176-06007-00 ...NUT, CROWN...NUT, CROWN
-
1892907-05200-00 ...WASHER...WASHER
-
1992017-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
205VN-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
214NK-27461-10-00 ...FOOTREST...FOOTREST
-
224WM-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
234WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
2490201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
2595607-05100-00 ...NUT, U...NUT, U
-
264NK-27427-00-00 ...SHAFT...SHAFT
-
274NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
2899001-06600-00 ...CIRCLIP...CIRCLIP
-
294WM-27497-00-00 ...MOLE 2...MOLE 2
-
3090157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
315VN-27422-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
325VN-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
335VN-27424-00-00 ...DAMPER, FOOTREST 2...DAMPER, FOOTREST 2
-
345VN-27123-00-00 ...PLATE, SOTPPER...PLATE, SOTPPER
-
3595317-06600-00 ...NUT...NUT
-
3690176-06007-00 ...NUT, CROWN...NUT, CROWN
-
3792907-05200-00 ...WASHER...WASHER
-
3892017-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
394WM-27430-11-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
404WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
4190240-06146-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4291401-20015-00 ...PIN, COTTER...PIN, COTTER
-
4390201-210U0-00 ...WASHER, PLATE...WASHER, PLATE
-
4490111-08002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
454WM-27440-11-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
464WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
4790240-06146-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4891401-20015-00 ...PIN, COTTER...PIN, COTTER
-
4990201-210U0-00 ...WASHER, PLATE...WASHER, PLATE
-
5090111-08002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
515VN-27443-00-00 BRACKET 3BRACKET 3
-
5295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
534WM-27311-00-00 STAND, SIDESTAND, SIDE
-
5490387-1007K-00 COLLARCOLLAR
-
5590105-10778-00 BOLT, FLANGEBOLT, FLANGE
-
5690185-10037-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5790506-29358-00 SPRING, TENSIONSPRING, TENSION
