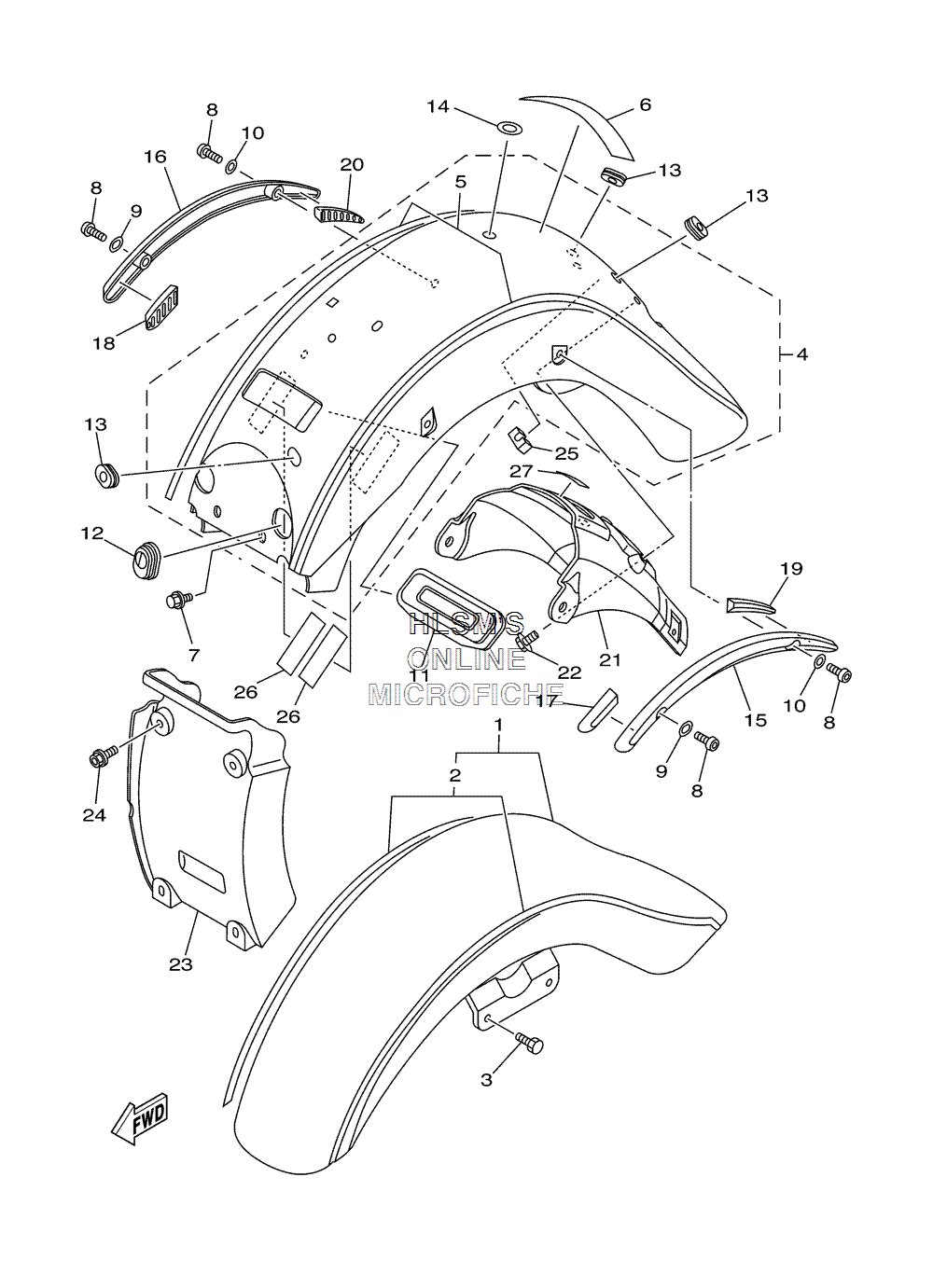

FENDER - FRONT / REAR для Yamaha ROAD STAR CAST WHEELS - 2006 года выпуска`
-
№АртикулНазвание
-
15VN-Y2150-90-P9 FRONT FENDER ASSY. (DRMK)FRONT FENDER ASSY. (DRMK)
-
24WM-21570-T0-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
391314-08025-00 BOLTBOLT
-
45VN-Y2161-90-P3 REAR FENDER COMP. (DRMK)REAR FENDER COMP. (DRMK)
-
54WM-2165A-T0-00 ......GRAPHIC SET, REAR FENDER......GRAPHIC SET, REAR FENDER
-
61D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
790119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890111-08009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
95VN-21615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
105VN-21616-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
114WM-21649-00-00 DAMPERDAMPER
-
124WM-21638-00-00 DAMPER 1DAMPER 1
-
1390480-01015-00 GROMMETGROMMET
-
145VN-21735-00-00 SEAL 2SEAL 2
-
154WM-2164F-00-00 STAY 1STAY 1
-
164WM-2164G-00-00 STAY 2STAY 2
-
174WM-21541-00-00 DAMPER 1DAMPER 1
-
184WM-21542-00-00 DAMPER 2DAMPER 2
-
194WM-2174X-00-00 DAMPERDAMPER
-
204WM-2174Y-00-00 DAMPERDAMPER
-
215VN-21643-00-00 STAY, REARSTAY, REAR
-
2290105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
234WM-21629-00-PE GUARD, MUD (DRMK)GUARD, MUD (DRMK)
-
2490119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
255VN-21639-00-00 DAMPER 2DAMPER 2
-
265PW-23472-00-00 PROTECTORPROTECTOR
-
274U5-2317J-00-00 DAMPER 1DAMPER 1
