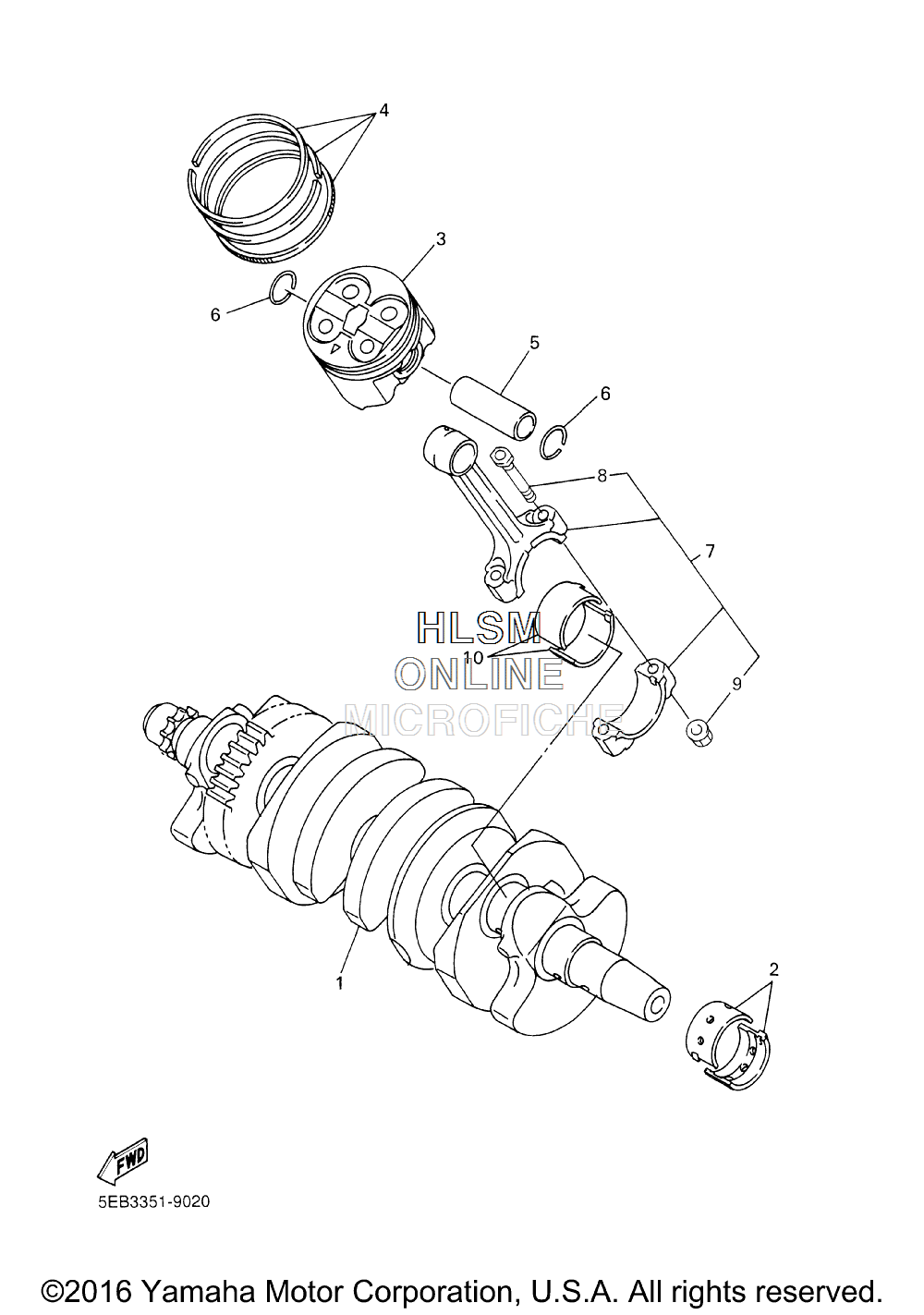

CRANKSHAFT - PISTON для Yamaha R6S [ YZFR6SV/C] (4P61/4P62) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5SL-11411-00-00 CRANKSHAFT
    CRANKSHAFT
  • 2
    5EB-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
  • 2
    5EB-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
  • 2
    5EB-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
  • 2
    5EB-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
  • 2
    5EB-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)
  • 3
    5SL-11631-00-00 PISTON (STD)
    PISTON (STD)
  • 4
    5SL-11603-00-00 PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 5
    5SL-11633-00-00 PIN, PISTON
    PIN, PISTON
  • 6
    93450-17129-00 CIRCLIP, INNER
    CIRCLIP, INNER
  • 7
    5SL-11650-00-00 CONNECTING ROD ASSY
    CONNECTING ROD ASSY
  • 8
    5SL-11654-00-00 ...BOLT, CONNECTING ROD
    ...BOLT, CONNECTING ROD
  • 9
    90179-07652-00 ...NUT, SPEC'L SHAPE
    ...NUT, SPEC'L SHAPE
  • 10
    5SL-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
    PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
  • 10
    5SL-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
    PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
  • 10
    5SL-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
    PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
  • 10
    5SL-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
    PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
