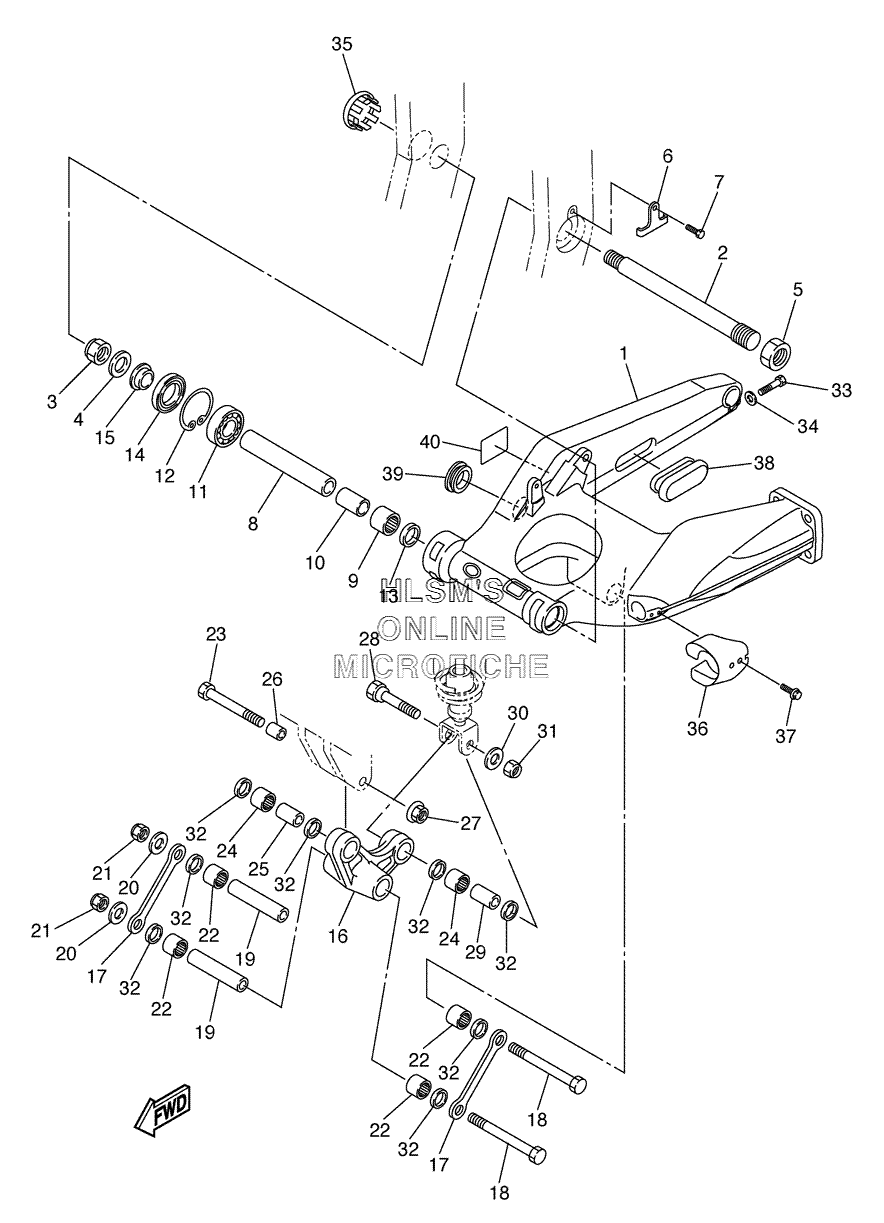

SUSPENSION - REAR ARM для Yamaha FJR1300A - 2006 года выпуска`
-
№АртикулНазвание
-
13P6-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
25JW-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
390185-18104-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490201-186H3-00 WASHER, PLATEWASHER, PLATE
-
590170-28379-00 NUTNUT
-
65JW-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
797022-06010-00 BOLTBOLT
-
890387-20011-00 COLLARCOLLAR
-
993317-42592-00 BEARINGBEARING
-
105JW-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1193306-30446-00 BEARINGBEARING
-
1299009-52500-00 CIRCLIPCIRCLIP
-
1393102-25270-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1493102-28023-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1590387-207V6-00 COLLARCOLLAR
-
165JW-2217A-00-00 ARM, RELAYARM, RELAY
-
173P6-2217M-00-00 ARM 1ARM 1
-
1890101-10658-00 BOLTBOLT
-
1990387-122R5-00 COLLARCOLLAR
-
2090201-101J1-00 WASHER, PLATEWASHER, PLATE
-
2195612-10100-00 NUT, UNUT, U
-
2293317-31701-00 BEARING, CYL.#17BEARING, CYL.#17
-
2390101-10011-00 BOLTBOLT
-
2493315-31759-00 BEARINGBEARING
-
2590387-102R4-00 COLLARCOLLAR
-
2690387-10009-00 COLLARCOLLAR
-
2795602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890109-10007-00 BOLTBOLT
-
2990387-127W0-00 COLLARCOLLAR
-
3090201-101J1-00 WASHER, PLATEWASHER, PLATE
-
3195612-10100-00 NUT, UNUT, U
-
3293109-17071-00 OIL SEALOIL SEAL
-
3397012-08040-00 BOLTBOLT
-
3492902-08600-00 WASHER, PLATEWASHER, PLATE
-
354BH-2219X-00-00 COVERCOVER
-
365JW-2217H-00-00 COVER, DUSTCOVER, DUST
-
3790119-05005-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
385JW-2219X-00-00 COVERCOVER
-
3990338-30267-00 PLUGPLUG
-
403P6-21668-00-00 LABEL, TIRELABEL, TIRE
