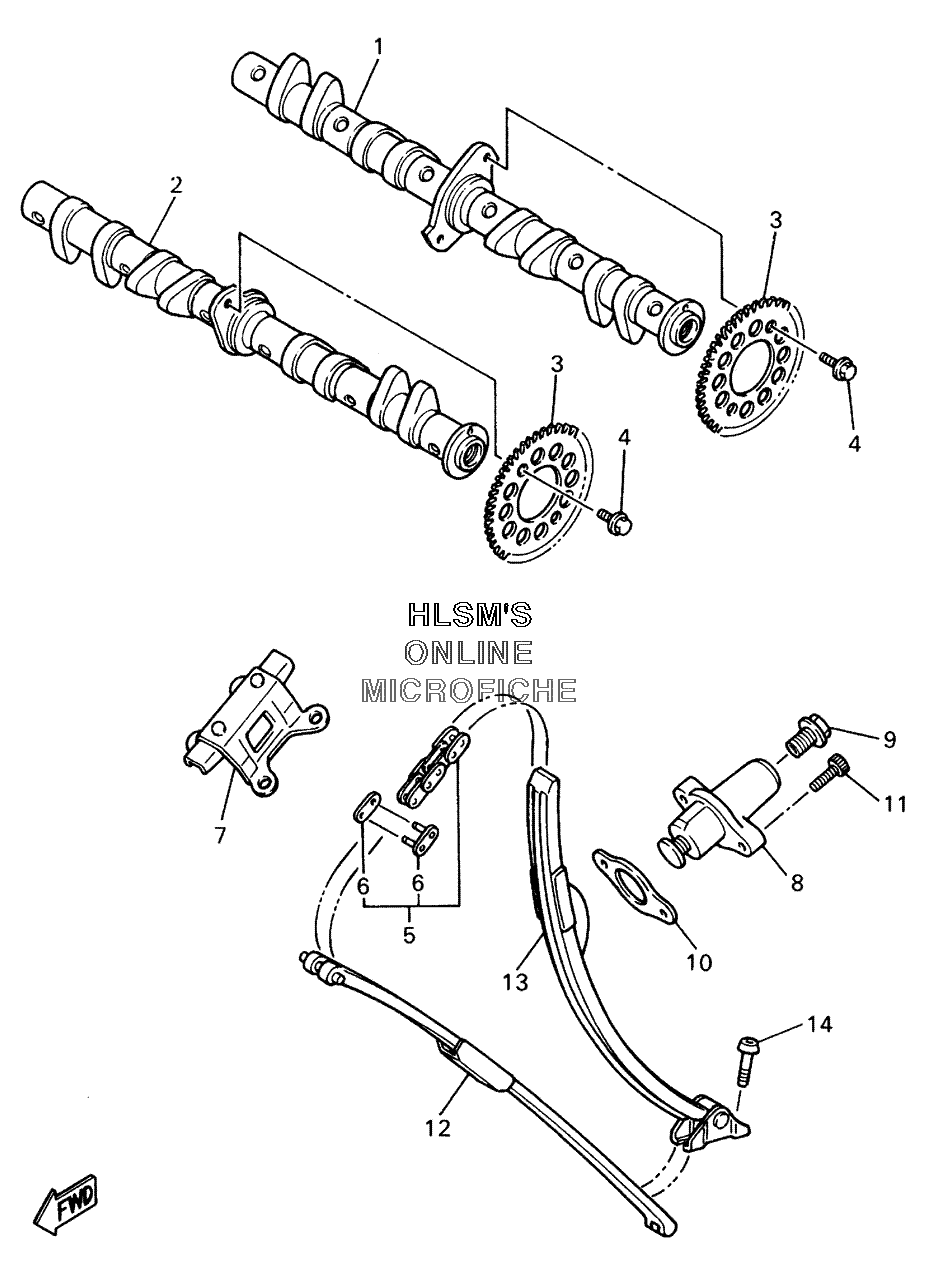

CAMSHAFT W/ CHAIN для Yamaha YZF600R - 2005 года выпуска`
-
№АртикулНазвание
-
14NC-12171-01-00 CAMSHAFT 1 (CALIF. ONLY)CAMSHAFT 1 (CALIF. ONLY)
-
14JH-12171-01-00 CAMSHAFT 1 (EXCEPT CALIF.)CAMSHAFT 1 (EXCEPT CALIF.)
-
24JH-12181-00-00 CAMSHAFT 2 (EXCEPT CALIF.)CAMSHAFT 2 (EXCEPT CALIF.)
-
24NC-12181-00-00 CAMSHAFT 2 (CALIF. ONLY)CAMSHAFT 2 (CALIF. ONLY)
-
31WG-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07385-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
59Y581-32117-00 CHAIN (D.I.D. 215F DHA 118L)CHAIN (D.I.D. 215F DHA 118L)
-
64TV-11498-00-00 ...PIN, JOINT...PIN, JOINT
-
73TJ-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
81WG-12210-02-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
990109-112F1-00 BOLTBOLT
-
104FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1191317-06025-00 BOLTBOLT
-
123HE-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
134JH-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1490109-065A8-00 BOLTBOLT
