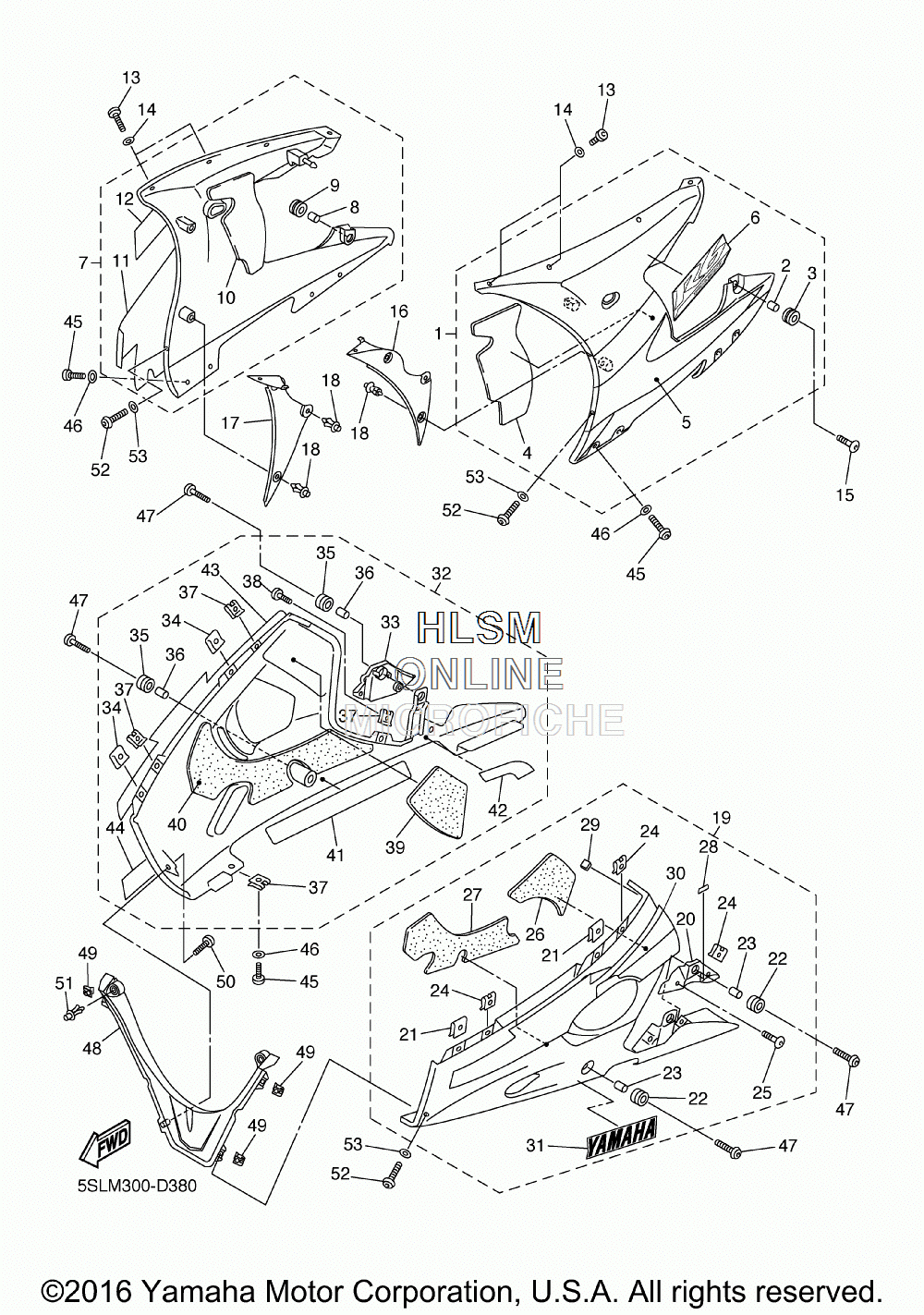

COWLING 2 для Yamaha YZF-R6 [ 5YZFR6T/C] (5SLR/5SLS) - 2005 года выпуска
-
№АртикулНазвание
-
15SL-Y283U-F0-P2 PANEL ASSY. 1 (VRC1)PANEL ASSY. 1 (VRC1)
-
15SL-Y283U-G0-P1 PANEL ASSY. 1 (DPBMC)PANEL ASSY. 1 (DPBMC)
-
15SL-Y283U-H0-P0 PANEL ASSY. 1 (MATTE BLACK FOR SMX)PANEL ASSY. 1 (MATTE BLACK FOR SMX)
-
290387-06057-00 ...COLLAR...COLLAR
-
390480-14003-00 ...GROMMET...GROMMET
-
45SL-2836T-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
55SL-28391-30-00 ...GRAPHIC 1 (FOR VRC1)...GRAPHIC 1 (FOR VRC1)
-
55SL-28391-40-00 ...GRAPHIC 1 (FOR DPBMC)...GRAPHIC 1 (FOR DPBMC)
-
65SL-2834C-B0-00 ...EMBLEM 1 (FOR VRC1)...EMBLEM 1 (FOR VRC1)
-
65SL-2834C-C0-00 ...EMBLEM 1 (FOR DPBMC)...EMBLEM 1 (FOR DPBMC)
-
65SL-2834C-D0-00 ...EMBLEM 1 (FOR SMX)...EMBLEM 1 (FOR SMX)
-
75SL-Y283V-F0-P2 PANEL ASSY. 2 (VRC1)PANEL ASSY. 2 (VRC1)
-
75SL-Y283V-G0-P1 PANEL ASSY. 2 (DPBMC)PANEL ASSY. 2 (DPBMC)
-
75SL-Y283V-H0-P0 PANEL ASSY. 2 (MATTE BLACK FOR SMX)PANEL ASSY. 2 (MATTE BLACK FOR SMX)
-
890387-06057-00 ...COLLAR...COLLAR
-
990480-14003-00 ...GROMMET...GROMMET
-
105SL-2836U-00-00 ...DAMPER, LOCATING 2...DAMPER, LOCATING 2
-
115SL-28392-30-00 ...GRAPHIC 2 (FOR VRC1)...GRAPHIC 2 (FOR VRC1)
-
115SL-28392-40-00 ...GRAPHIC 2 (FOR DPBMC)...GRAPHIC 2 (FOR DPBMC)
-
125SL-2834C-B0-00 ...EMBLEM 1 (FOR VRC1)...EMBLEM 1 (FOR VRC1)
-
125SL-2834C-C0-00 ...EMBLEM 1 (FOR DPBMC)...EMBLEM 1 (FOR DPBMC)
-
125SL-2834C-D0-00 ...EMBLEM 1 (FOR SMX)...EMBLEM 1 (FOR SMX)
-
1390111-05003-00 BOLTBOLT
-
1490202-05180-00 WASHER, PLATEWASHER, PLATE
-
1590111-06040-00 BOLTBOLT
-
165SL-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
175SL-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
1890269-06008-00 RIVETRIVET
-
195SL-Y2808-60-P0 COVER ASSY., UNDER (SMX FOR VRC1)COVER ASSY., UNDER (SMX FOR VRC1)
-
195SL-Y2808-70-P1 COVER ASSY., UNDER (DPBMC)COVER ASSY., UNDER (DPBMC)
-
195SL-Y2808-80-P0 COVER ASSY., UNDER (SMX FOR SMX)COVER ASSY., UNDER (SMX FOR SMX)
-
205SL-2843J-00-00 ...COVER 3...COVER 3
-
2190183-05024-00 ...NUT, SPRING...NUT, SPRING
-
2290480-14003-00 ...GROMMET...GROMMET
-
2390387-06057-00 ...COLLAR...COLLAR
-
2490183-05061-00 ...NUT, SPRING...NUT, SPRING
-
2590111-05002-00 ...BOLT...BOLT
-
265SL-2834E-00-00 ...DAMPER 1...DAMPER 1
-
275SL-2837J-00-00 ...DAMPER 5...DAMPER 5
-
281HX-27415-00-00 ...PLATE, DAMPER...PLATE, DAMPER
-
295SL-21649-00-00 ...DAMPER...DAMPER
-
305SL-283A1-00-00 ...GRAPHIC, UNDER COVER 1 (FOR VRC1 AND DPBMC)...GRAPHIC, UNDER COVER 1 (FOR VRC1 AND DPBMC)
-
3199241-00280-00 ...EMBLEM, YAMAHA (FOR VRC1 AND DPBMC)...EMBLEM, YAMAHA (FOR VRC1 AND DPBMC)
-
3199247-00280-00 ...EMBLEM, YAMAHA (FOR SMX)...EMBLEM, YAMAHA (FOR SMX)
-
325SL-Y2809-60-P0 COVER ASSY. 2, UNDER (SMX FOR VRC1)COVER ASSY. 2, UNDER (SMX FOR VRC1)
-
325SL-Y2809-70-P1 COVER ASSY. 2, UNDER (DPBMC)COVER ASSY. 2, UNDER (DPBMC)
-
325SL-Y2809-80-P0 COVER ASSY. 2, UNDER (SMX FOR SMX)COVER ASSY. 2, UNDER (SMX FOR SMX)
-
335SL-2844J-00-00 ...COVER 4...COVER 4
-
3490183-05024-00 ...NUT, SPRING...NUT, SPRING
-
3590480-14003-00 ...GROMMET...GROMMET
-
3690387-06057-00 ...COLLAR...COLLAR
-
3790183-05061-00 ...NUT, SPRING...NUT, SPRING
-
3890111-05002-00 ...BOLT...BOLT
-
395SL-2834F-00-00 ...DAMPER...DAMPER
-
405SL-2837K-00-00 ...DAMPER 6...DAMPER 6
-
415SL-2838G-00-00 ...SEAT 1...SEAT 1
-
425SL-2848K-00-00 ...SEAT 2...SEAT 2
-
435SL-283A2-00-00 ...GRAPHIC, UNDER COVER 2 (FOR VRC1 AND DPBMC))...GRAPHIC, UNDER COVER 2 (FOR VRC1 AND DPBMC))
-
4499241-00280-00 ...EMBLEM, YAMAHA (FOR VRC1 AND DPBMC)...EMBLEM, YAMAHA (FOR VRC1 AND DPBMC)
-
4499247-00280-00 ...EMBLEM, YAMAHA (SMX)...EMBLEM, YAMAHA (SMX)
-
4590111-05003-00 BOLTBOLT
-
4690202-05180-00 WASHER, PLATEWASHER, PLATE
-
4790111-06040-00 BOLTBOLT
-
485SL-2836M-10-00 PANEL, INNER 3PANEL, INNER 3
-
4990183-05061-00 NUT, SPRINGNUT, SPRING
-
5097707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
5190269-07007-00 RIVETRIVET
-
5290111-05003-00 BOLTBOLT
-
5390202-05180-00 WASHER, PLATEWASHER, PLATE
