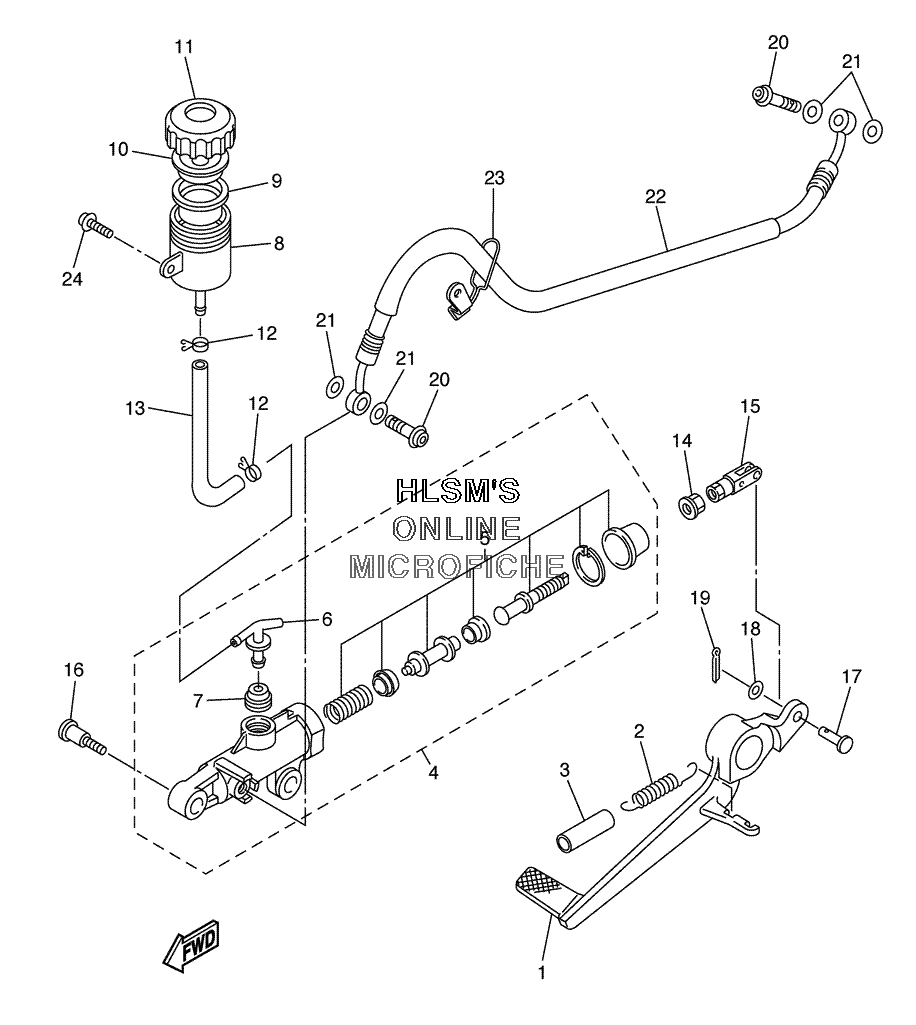

BRAKE - REAR MASTER CYLINDER для Yamaha YZF-R1 - 2005 года выпуска`
-
№АртикулНазвание
-
15VY-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290506-20193-00 SPRING, TENSIONSPRING, TENSION
-
390446-15386-00 HOSEHOSE
-
45SL-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
55SL-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
65SL-2582A-00-00 ...JOINT...JOINT
-
74BP-2585F-00-00 ...BUSH...BUSH
-
85SL-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
95SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
105SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
115SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1290467-010A0-00 CLIPCLIP
-
135VY-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1495307-08700-00 NUTNUT
-
155SL-27222-00-00 JOINTJOINT
-
1690109-06013-00 BOLTBOLT
-
1791701-06018-00 PIN, CLEVISPIN, CLEVIS
-
1892907-06200-00 WASHERWASHER
-
1991401-16012-00 PIN, COTTERPIN, COTTER
-
2090401-10172-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
225VY-25874-01-00 HOSE, BRAKEHOSE, BRAKE
-
235VY-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2490159-06056-00 SCREW, PAN HEADSCREW, PAN HEAD
