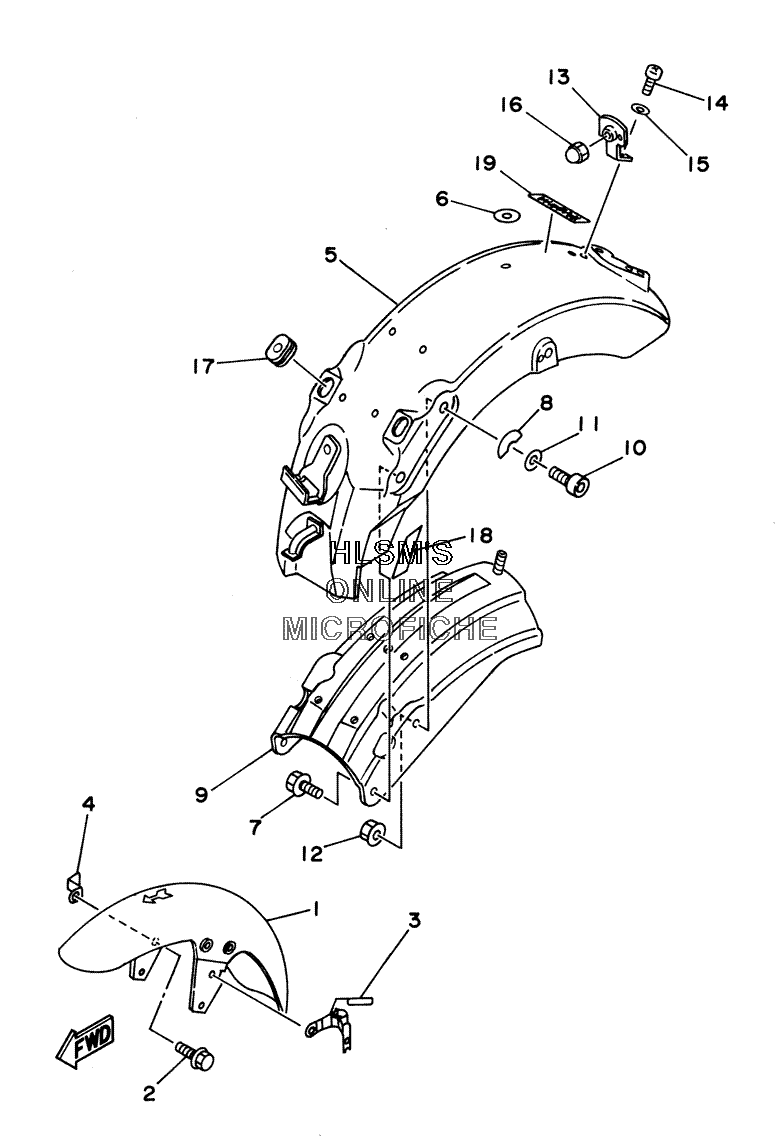

FENDER - FRONT / REAR для Yamaha VIRAGO 250 - 2005 года выпуска`
-
№АртикулНазвание
-
12UJ-21510-00-P6 FRONT FENDER COMP. (RAVEN)FRONT FENDER COMP. (RAVEN)
-
295024-08012-00 BOLT, FLANGEBOLT, FLANGE
-
33DN-21597-00-00 HOLDER, WIRE 1HOLDER, WIRE 1
-
43DN-21586-00-00 BRACKETBRACKET
-
52UJ-21610-00-PC REAR FENDER COMP. (RAVEN)REAR FENDER COMP. (RAVEN)
-
62UJ-21735-00-00 SEAL 2SEAL 2
-
795817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
83DM-2173N-00-00 SEAL 4SEAL 4
-
92UJ-21670-20-00 REINF. COMP.REINF. COMP.
-
1091317-10035-00 BOLTBOLT
-
1192907-10600-00 WASHER, PLATEWASHER, PLATE
-
1295707-10500-00 NUT, FLANGENUT, FLANGE
-
132UJ-21641-00-00 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1498507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1592907-05600-00 WASHER, PLATEWASHER, PLATE
-
1695307-05800-00 NUTNUT
-
1790480-01502-00 GROMMETGROMMET
-
182UJ-2173M-01-00 SEAL 3SEAL 3
-
1999246-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
