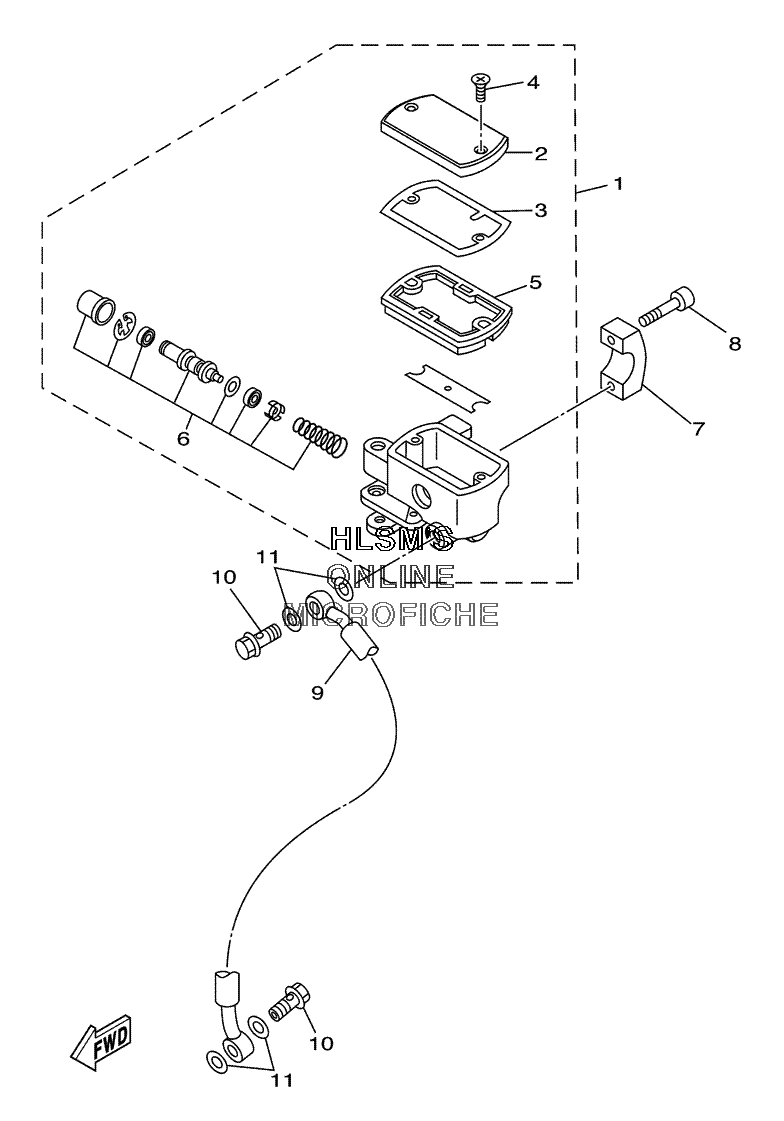

BRAKE - FRONT MASTER CYLINDER для Yamaha V-STAR CUSTOM W/FLAMES - 2005 года выпуска`
-
№АртикулНазвание
-
14TR-25870-01-00 MASTER CYLINDER SUB ASSY.MASTER CYLINDER SUB ASSY.
-
24TR-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
34BH-25815-00-00 ...SEAL, PISTON...SEAL, PISTON
-
44TR-2589H-00-00 ...SCREW...SCREW
-
54BH-25854-02-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
62KR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
74TR-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
891314-06025-00 BOLTBOLT
-
95KP-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1090401-10159-00 BOLT, UNIONBOLT, UNION
-
1190201-10118-00 WASHER, PLATEWASHER, PLATE
