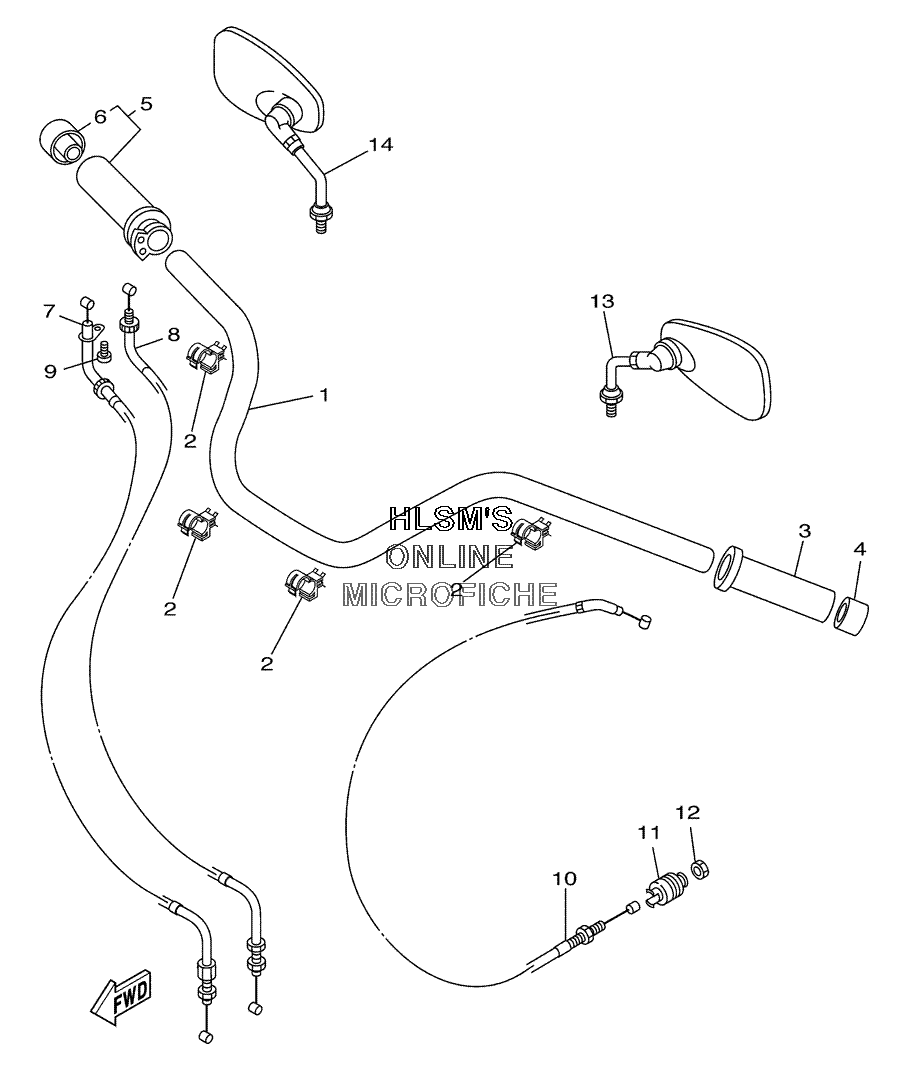

HANDLEBAR W/ CABLES для Yamaha V STAR CLASSIC - 2005 года выпуска`
-
№АртикулНазвание
-
15BN-26111-10-00 HANDLEBARHANDLEBAR
-
290464-15192-00 CLAMPCLAMP
-
34NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
44NK-2628J-00-00 CAP, GRIPCAP, GRIP
-
54NK-26240-00-00 GRIP ASSY.GRIP ASSY.
-
64NK-2635J-00-00 ...CAP 2...CAP 2
-
75BN-26311-20-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
85BN-26312-20-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
998507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
105BN-26335-10-00 CABLE, CLUTCHCABLE, CLUTCH
-
111E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1295304-08700-00 NUTNUT
-
134NK-26280-00-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
145BN-26290-00-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
