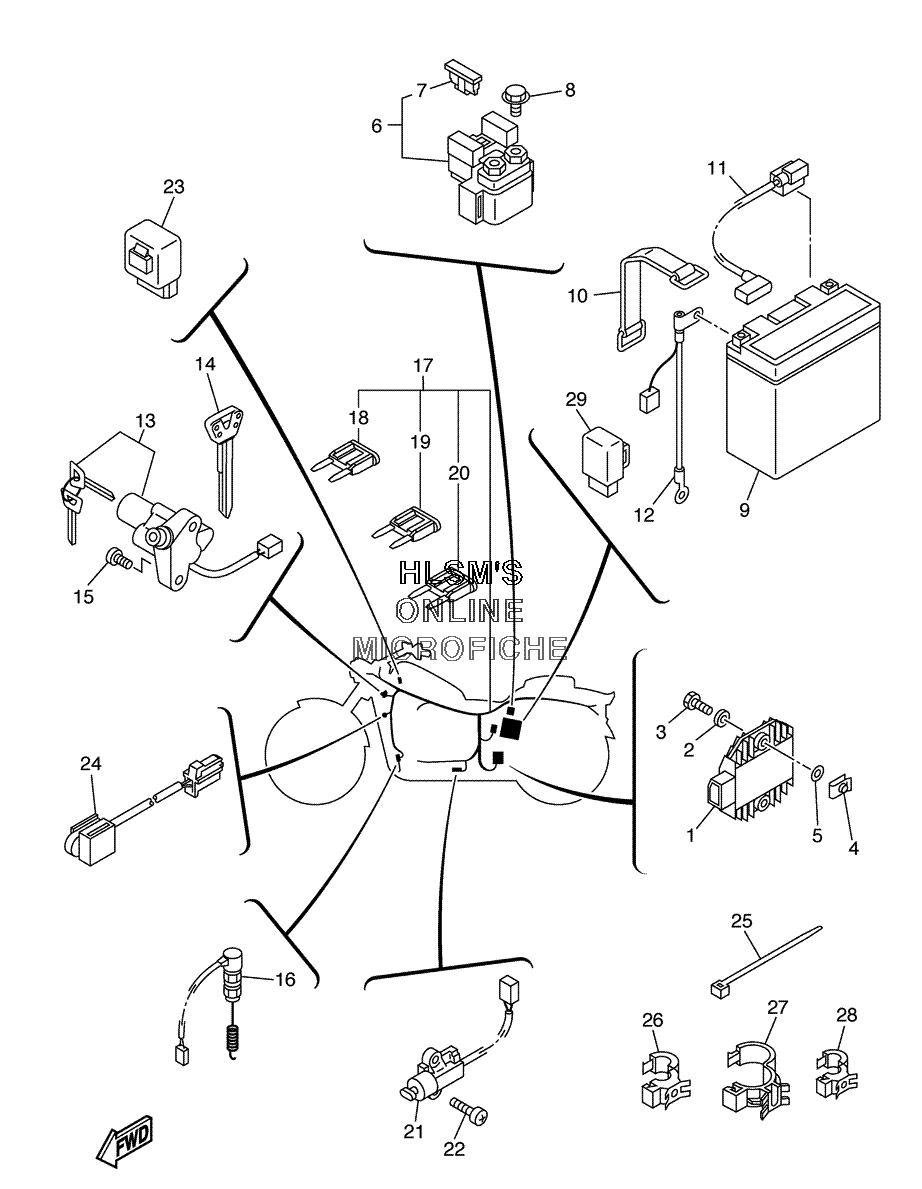

ELECTRICAL 2 для Yamaha V STAR 1100 MDNT CUSTOM - 2005 года выпуска`
-
№АртикулНазвание
-
14XY-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
290201-06727-00 WASHER, PLATEWASHER, PLATE
-
397007-06025-00 BOLTBOLT
-
490183-06053-00 NUT, SPRINGNUT, SPRING
-
590202-05187-00 WASHER, PLATEWASHER, PLATE
-
64DN-81940-11-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
71AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
95EA-82100-11-00 BATTERY ASSY. (GS GT14B-4)BATTERY ASSY. (GS GT14B-4)
-
10118-82131-00-00 BAND, BATTERYBAND, BATTERY
-
115EL-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
125EL-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
134TR-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
144BH-82511-09-00 BLANK KEYBLANK KEY
-
1590149-08002-00 SCREWSCREW
-
165EL-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
175KS-82590-20-00 WIRE HARNESS ASSY. (EXCEPT CALIF.)WIRE HARNESS ASSY. (EXCEPT CALIF.)
-
175KS-82590-50-00 WIRE HARNESS ASSY. (CALIF. ONLY)WIRE HARNESS ASSY. (CALIF. ONLY)
-
185JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
195JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
205JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
215RT-82566-40-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2290157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
235KS-81950-00-00 RELAY ASSY.RELAY ASSY.
-
245FU-82560-50-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
251UA-82591-00-00 BANDBAND
-
2690464-20191-00 CLAMPCLAMP
-
2790464-25217-00 CLAMPCLAMP
-
2890464-15192-00 CLAMPCLAMP
