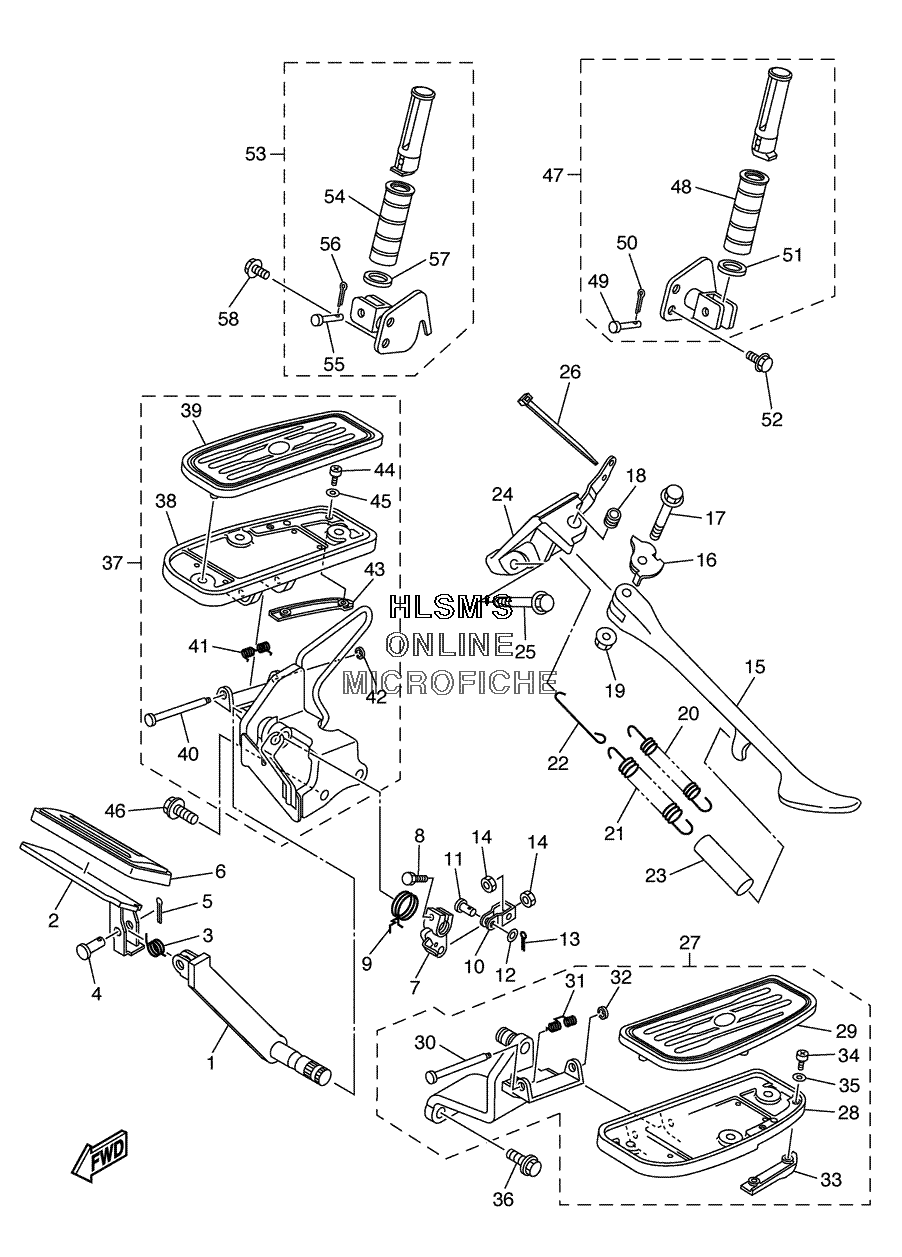

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR 1100 CLASSIC - 2005 года выпуска
-
№АртикулНазвание
-
15KS-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-186B1-00 SPRING, TORSIONSPRING, TORSION
-
491701-06022-00 PIN, CLEVISPIN, CLEVIS
-
591401-20012-00 PIN, COTTERPIN, COTTER
-
64NK-27285-00-00 CAPCAP
-
75EL-27262-00-00 LEVERLEVER
-
897004-06020-00 BOLTBOLT
-
95EL-27216-00-00 SPRING, RETURNSPRING, RETURN
-
104BP-27222-01-00 JOINTJOINT
-
1190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-20012-00 PIN, COTTERPIN, COTTER
-
1495307-08700-00 NUTNUT
-
154KU-27311-13-00 STAND, SIDESTAND, SIDE
-
165EL-27322-01-00 WASHERWASHER
-
1790105-10012-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890387-1003G-00 COLLARCOLLAR
-
1995607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2090506-23490-00 SPRING, TENSIONSPRING, TENSION
-
2190506-29507-00 SPRING, TENSIONSPRING, TENSION
-
225EL-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
2390445-16641-00 HOSEHOSE
-
245EL-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
2595817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
261UA-82591-00-00 BANDBAND
-
275KS-27410-10-00 FRONT FOOTREST ASSY. (LEFT)FRONT FOOTREST ASSY. (LEFT)
-
284NK-27451-10-00 ...FOOTREST...FOOTREST
-
294XY-27413-01-00 ...COVER, FOOTREST...COVER, FOOTREST
-
304NK-27427-00-00 ...SHAFT...SHAFT
-
314NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
3299001-06600-00 ...CIRCLIP...CIRCLIP
-
334WM-27496-00-00 ...MOLE 1...MOLE 1
-
3490157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3592907-05200-00 ...WASHER...WASHER
-
3690105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
375KS-27420-10-00 FRONT FOOTREST ASSY. (RIGHT)FRONT FOOTREST ASSY. (RIGHT)
-
384NK-27461-10-00 ...FOOTREST...FOOTREST
-
394XY-27423-01-00 ...COVER, FOOTREST...COVER, FOOTREST
-
404NK-27427-00-00 ...SHAFT...SHAFT
-
414NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
4299001-06600-00 ...CIRCLIP...CIRCLIP
-
434WM-27497-00-00 ...MOLE 2...MOLE 2
-
4490157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4592907-05200-00 ...WASHER...WASHER
-
4690105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
475EL-27430-00-00 REAR FOOTREST ASSY. 1REAR FOOTREST ASSY. 1
-
484WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
4991701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
5091401-20012-00 ...PIN, COTTER...PIN, COTTER
-
5190201-210U0-00 ...WASHER, PLATE...WASHER, PLATE
-
5290105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
535EL-27440-00-00 REAR FOOTREST ASSY. 2REAR FOOTREST ASSY. 2
-
544WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5591701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
5691401-20012-00 ...PIN, COTTER...PIN, COTTER
-
5790201-210U0-00 ...WASHER, PLATE...WASHER, PLATE
-
5890105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
