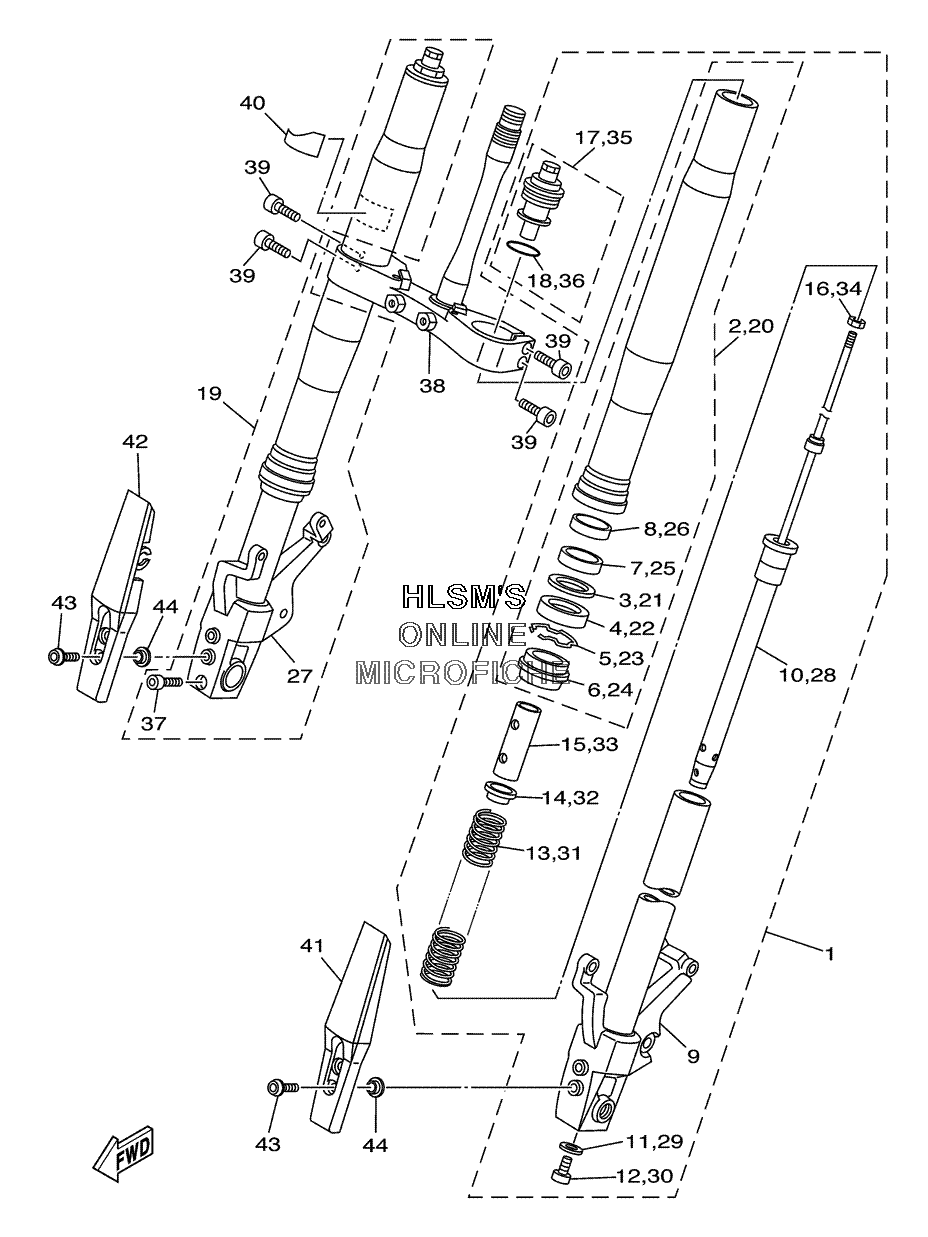

SUSPENSION - FRONT FORK для Yamaha ROAD STAR WARRIOR W/FLAMES - 2005 года выпуска`
-
№АртикулНазвание
-
15PX-23102-03-00 FRONT FORK ASSY. (L.H)FRONT FORK ASSY. (L.H)
-
25PX-23136-01-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
336Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
44EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
526H-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
64EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
75PX-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
84XV-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
95PX-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
105PX-23170-02-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
112K8-23158-L0-00 ...GASKET...GASKET
-
123R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
135PX-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
144XV-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
154XV-23118-00-00 ...SPACER...SPACER
-
163LC-23357-00-00 ...NUT...NUT
-
175PX-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
183XJ-23147-L0-00 ...O-RING...O-RING
-
195PX-23103-03-00 FRONT FORK ASSY. (R.H)FRONT FORK ASSY. (R.H)
-
205PX-23136-01-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
2136Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
224EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2326H-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
244EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
255PX-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
264XV-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
275PX-23120-00-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
285PX-23170-02-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
292K8-23158-L0-00 ...GASKET...GASKET
-
303R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
315PX-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
324XV-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
334XV-23118-00-00 ...SPACER...SPACER
-
343LC-23357-00-00 ...NUT...NUT
-
355PX-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
363XJ-23147-L0-00 ...O-RING...O-RING
-
3791314-08040-00 ...BOLT...BOLT
-
385PX-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3991314-08030-00 BOLTBOLT
-
405PX-23844-00-00 SEALSEAL
-
415PX-23123-00-7B COVER, LOWER 1 (BLUISH BLACK 2)COVER, LOWER 1 (BLUISH BLACK 2)
-
425PX-23133-00-7B COVER, LOWER 2 (BLUISH BLACK 2)COVER, LOWER 2 (BLUISH BLACK 2)
-
4390149-06298-00 SCREWSCREW
-
4490387-06050-00 COLLARCOLLAR
