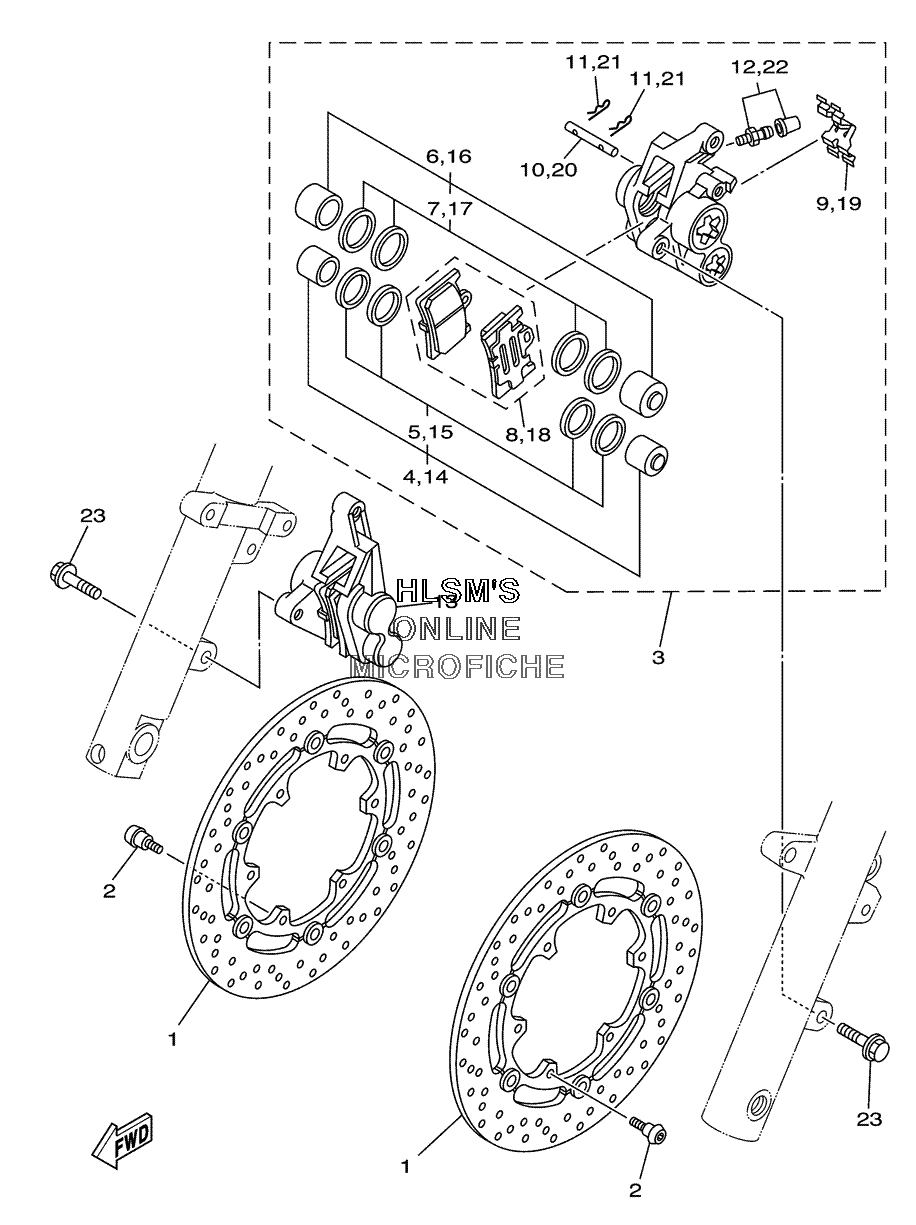

BRAKE - FRONT CALIPER для Yamaha ROAD STAR MIDNIGHT - 2005 года выпуска`
-
№АртикулНазвание
-
15PX-2581T-10-00 DISK BRAKE ASSY.DISK BRAKE ASSY.
-
290109-083G4-00 BOLTBOLT
-
35VN-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
44SV-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
53MA-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
64SV-W0057-10-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
73GM-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
85VN-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
95VN-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
104SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
113GM-25925-00-00 ...CLIP...CLIP
-
1251H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
135VN-2580U-00-00 CALIPER ASSY. (RIGHT)CALIPER ASSY. (RIGHT)
-
144SV-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
153MA-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
164SV-W0057-10-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
173GM-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
185VN-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
195VN-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
204SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
213GM-25925-00-00 ...CLIP...CLIP
-
2251H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
2390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
