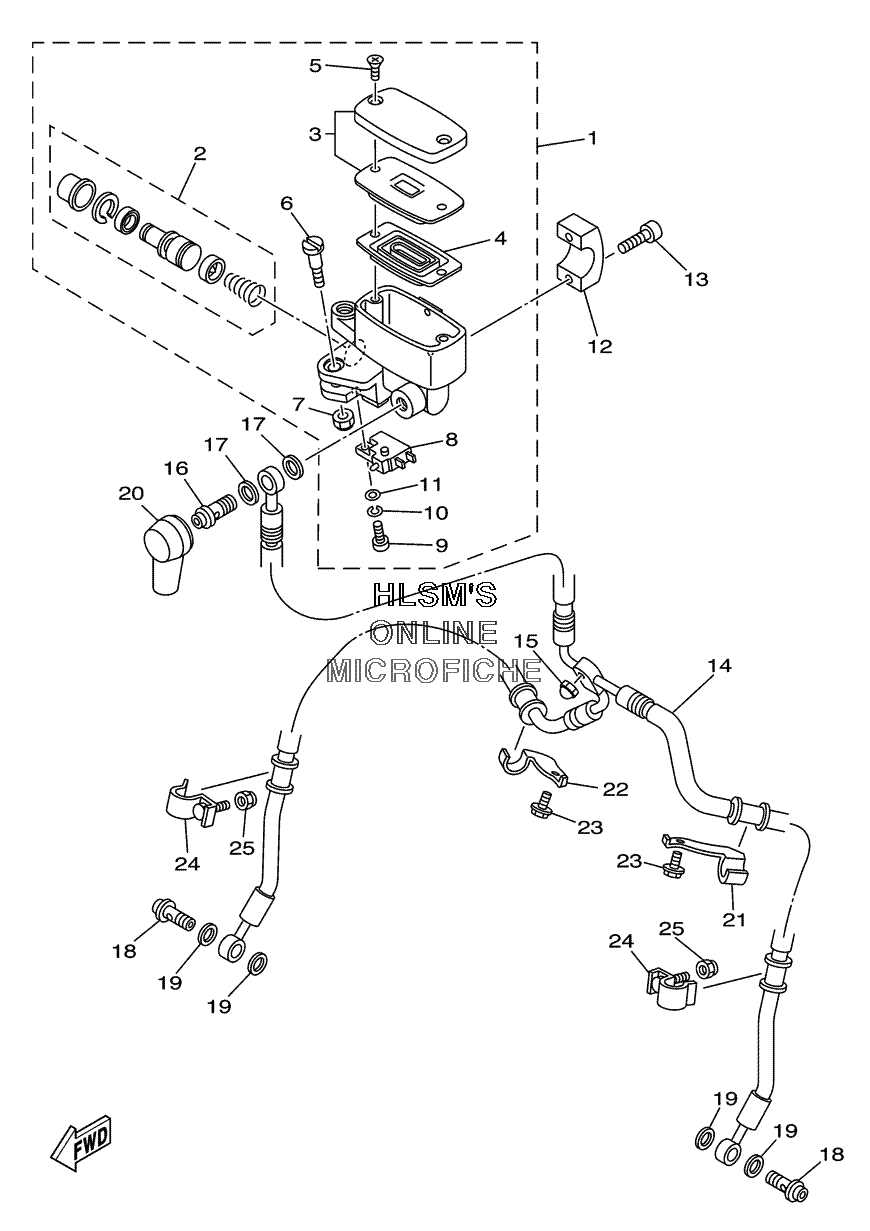

BRAKE - FRONT MASTER CYLINDER для Yamaha ROAD STAR MDNT WARRIOR - 2005 года выпуска`
-
№АртикулНазвание
-
15PX-W2587-10-00 MASTER CYLINDER SUB ASSY.MASTER CYLINDER SUB ASSY.
-
25PX-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34NK-W2585-20-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
44NK-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
64NK-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
795606-06100-00 ...NUT, U...NUT, U
-
84HM-83980-00-00 ...FRONT STOP SWITCH ASSY....FRONT STOP SWITCH ASSY.
-
998507-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1192907-04600-00 ...WASHER...WASHER
-
124NK-25867-20-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1391314-06025-00 BOLTBOLT
-
145PX-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1590176-06043-00 NUT, CROWNNUT, CROWN
-
1690401-10172-00 BOLT, UNIONBOLT, UNION
-
1790201-10118-00 WASHER, PLATEWASHER, PLATE
-
1890401-10172-00 BOLT, UNIONBOLT, UNION
-
1990201-10118-00 WASHER, PLATEWASHER, PLATE
-
204L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
215PX-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
225PX-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2395807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
245PX-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2590176-06043-00 NUT, CROWNNUT, CROWN
