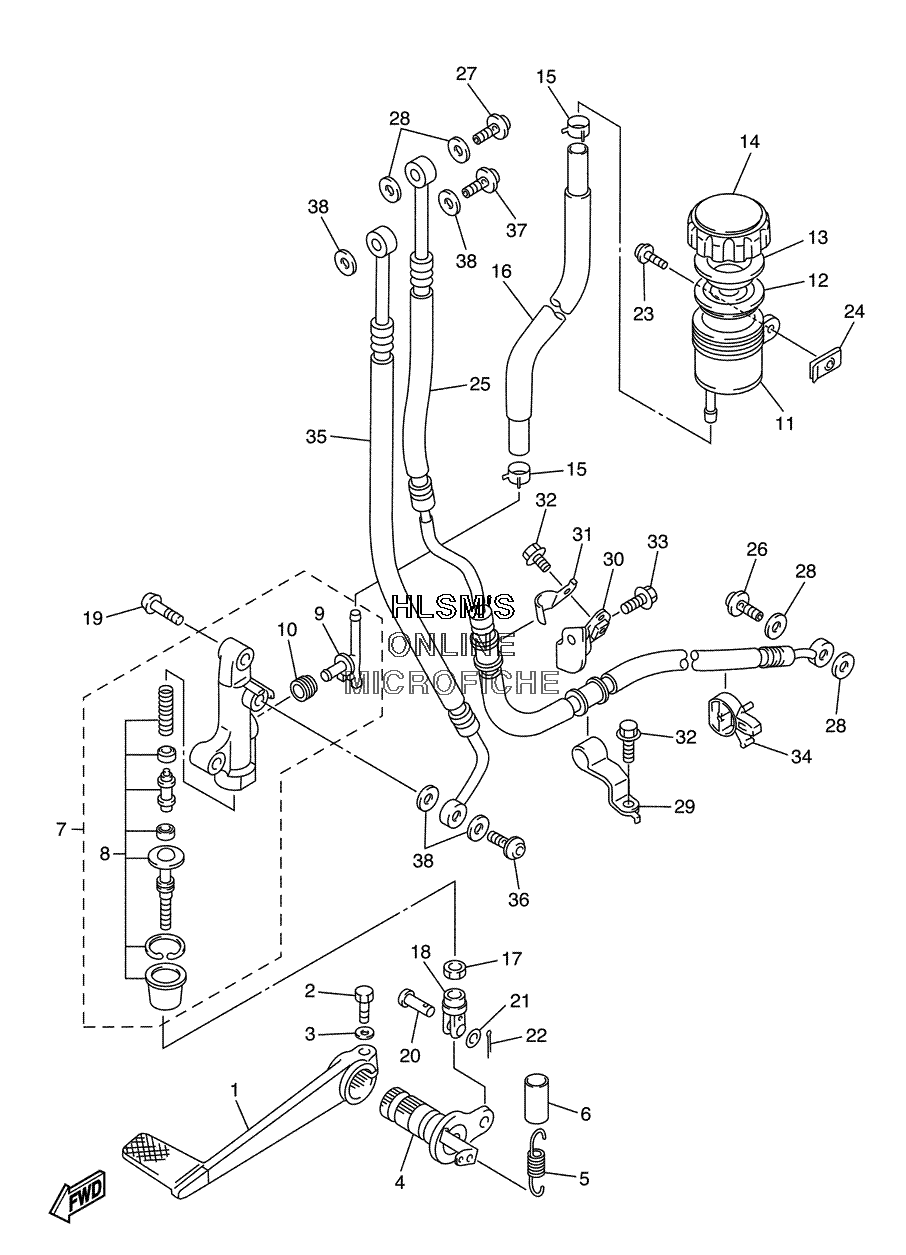

BRAKE - REAR MASTER CYLINDER для Yamaha FJR ABS - 2005 года выпуска`
-
№АртикулНазвание
-
15JW-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290109-06468-00 BOLTBOLT
-
392990-06600-00 WASHER, PLATEWASHER, PLATE
-
45JW-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
590506-25001-00 SPRING, TENSIONSPRING, TENSION
-
690446-17346-00 HOSEHOSE
-
75VS-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
85VS-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
95VS-2582A-00-00 ...JOINT...JOINT
-
104BP-2585F-00-00 ...BUSH...BUSH
-
115VS-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
125SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
135SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
145SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1590467-090A0-00 CLIPCLIP
-
165VS-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1795307-08700-00 NUTNUT
-
185SL-27222-00-00 JOINTJOINT
-
1992017-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2091701-06018-00 PIN, CLEVISPIN, CLEVIS
-
2192907-06200-00 WASHERWASHER
-
2291401-16012-00 PIN, COTTERPIN, COTTER
-
2390159-06085-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2490183-06053-00 NUT, SPRINGNUT, SPRING
-
255VS-2581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
2690401-10172-00 BOLT, UNIONBOLT, UNION
-
2790401-10020-00 BOLT, UNIONBOLT, UNION
-
2890201-10118-00 WASHER, PLATEWASHER, PLATE
-
295VS-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
305VS-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
315VS-2588G-00-00 HOLDER, BRAKE HOSE 6HOLDER, BRAKE HOSE 6
-
3295027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3395807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3490464-23239-00 CLAMPCLAMP
-
355VS-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
3690401-10172-00 BOLT, UNIONBOLT, UNION
-
3790401-10020-00 BOLT, UNIONBOLT, UNION
-
3890201-10118-00 WASHER, PLATEWASHER, PLATE
