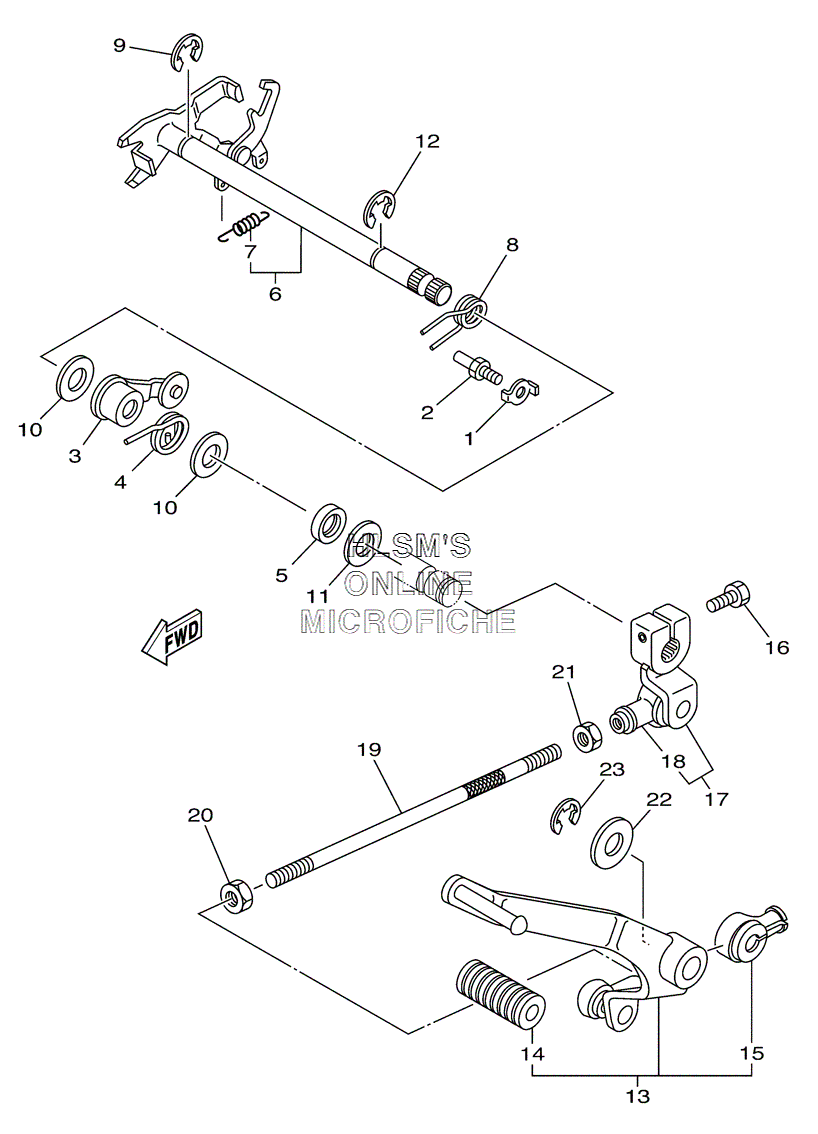

SHIFT SHAFT для Yamaha XVS 650 V STAR CUSTOM - 2004 года выпуска`
-
№АртикулНазвание
-
190215-18178-00 WASHER, LOCKWASHER, LOCK
-
24G0-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
34TR-18140-00-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
490508-290B5-00 SPRING, TORSIONSPRING, TORSION
-
593102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
64TR-18120-00-00 SHIFT LEVER ASSY.SHIFT LEVER ASSY.
-
790506-08227-00 ...SPRING, TENSION...SPRING, TENSION
-
890508-32536-00 SPRING, TORSIONSPRING, TORSION
-
999001-10600-00 CIRCLIPCIRCLIP
-
1090201-12588-00 WASHER, PLATEWASHER, PLATE
-
1190201-12575-00 WASHER, PLATEWASHER, PLATE
-
1299001-10600-00 CIRCLIPCIRCLIP
-
134TR-18110-00-00 SHIFT PEDAL ASSY.SHIFT PEDAL ASSY.
-
1422N-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
152H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
1697024-06020-00 BOLTBOLT
-
174TR-18112-00-00 ARM, SHIFTARM, SHIFT
-
182H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
193SX-18115-01-00 ROD, SHIFTROD, SHIFT
-
2090170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
2195304-06700-00 NUTNUT
-
2290201-12362-00 WASHER, PLATEWASHER, PLATE
-
2399009-12400-00 CIRCLIPCIRCLIP
