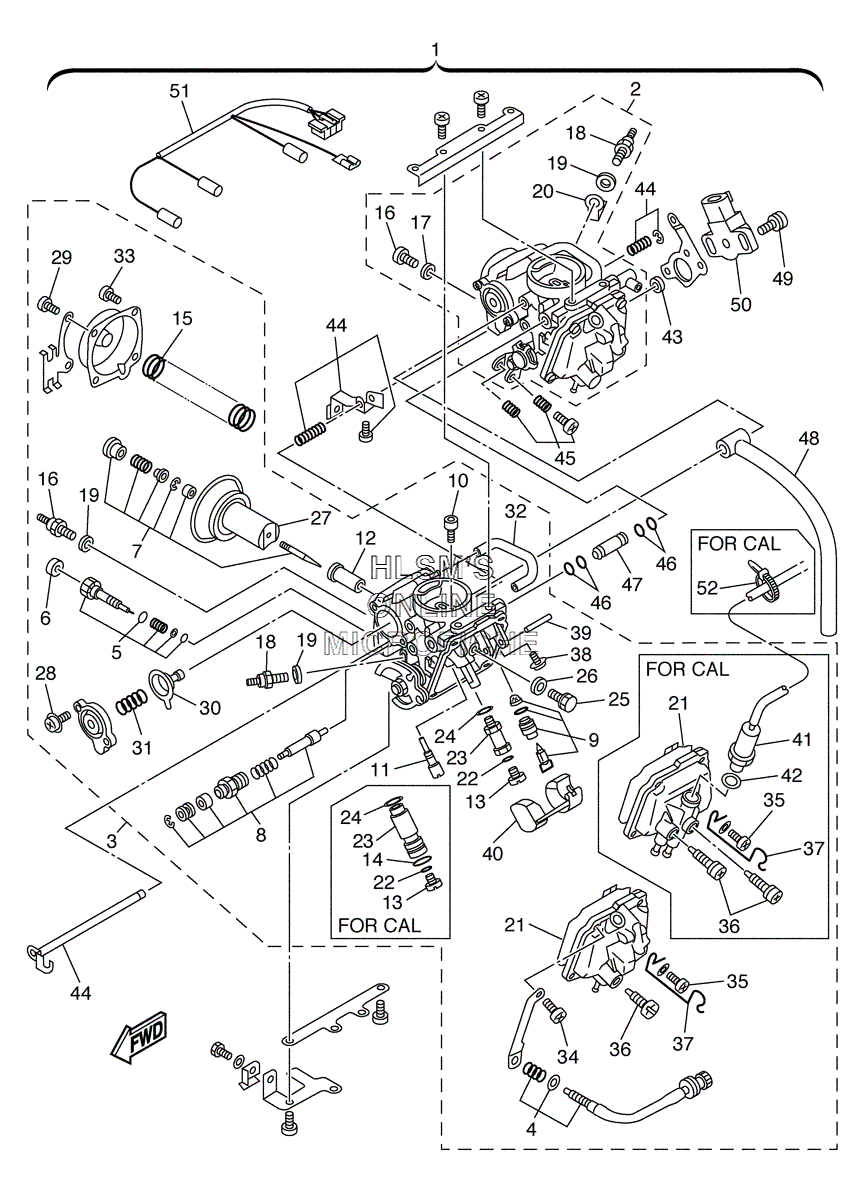

CARBURETOR для Yamaha XVS 650 V STAR CUSTOM CALIFORNIA - 2004 года выпуска`

№

Артикул

Название
1

5BN-14900-40-00 CARBURETOR ASSY. (EXCEPT CALIF.)

CARBURETOR ASSY. (EXCEPT CALIF.)

0 ₽
1

5SC-14900-20-00 CARBURETOR ASSY. (CALIF ONLY)

CARBURETOR ASSY. (CALIF ONLY)

0 ₽
2

5BN-14901-40-00 ...CARBURETOR ASSY. (#1) (REAR) (EXCEPT CALIF.)

...CARBURETOR ASSY. (#1) (REAR) (EXCEPT CALIF.)

0 ₽
2

5SC-14901-20-00 ...CARBURETOR ASSY. (#1) (REAR) (CALIF ONLY)

...CARBURETOR ASSY. (#1) (REAR) (CALIF ONLY)

0 ₽
3

5BN-14902-40-00 ...CARBURETOR ASSY. (#2) (FRONT) (EXCEPT CALIF.)

...CARBURETOR ASSY. (#2) (FRONT) (EXCEPT CALIF.)

0 ₽
3

5SC-14902-20-00 ...CARBURETOR ASSY. (#2) (FRONT) (CALIF ONLY)

...CARBURETOR ASSY. (#2) (FRONT) (CALIF ONLY)

0 ₽
4

4TR-14103-00-00 ......THROTTLE SCREW SET (#2) (FRONT)

......THROTTLE SCREW SET (#2) (FRONT)

6 450 ₽
5

4LA-14105-00-00 ......PILOT SCREW SET (EXCEPT CALIF.)

......PILOT SCREW SET (EXCEPT CALIF.)

1 880 ₽
5

4TR-14105-00-00 ......PILOT SCREW SET (CALIF ONLY)

......PILOT SCREW SET (CALIF ONLY)

3 300 ₽
6

3F9-14118-00-00 ......CAP

......CAP

530 ₽
7

5BN-1490J-00-00 ......NEEDLE SET

......NEEDLE SET

0 ₽
8

4DN-1410A-01-00 ......STARTER SET

......STARTER SET

5 030 ₽
9

3CF-14107-10-00 ......NEEDLE VALVE SET

......NEEDLE VALVE SET

4 400 ₽
10

1HX-14231-20-00 ......JET,PILOT AIR(#100)

......JET,PILOT AIR(#100)

1 260 ₽
11

4KM-14142-20-00 ......JET, PILOT (# 20)

......JET, PILOT (# 20)

1 130 ₽
12

3DM-1414M-34-00 ......NOZZLE, MAIN

......NOZZLE, MAIN

3 770 ₽
13

620-14231-18-00 ......JET, MAIN (# 90) (EXCEPT CALIF.)

......JET, MAIN (# 90) (EXCEPT CALIF.)

1 260 ₽
13

3G2-1414E-36-00 ......JET, MAIN (#91.3) (CALIF ONLY)

......JET, MAIN (#91.3) (CALIF ONLY)

970 ₽
14

8F2-14147-00-00 ............O-RING (CALIF ONLY)

............O-RING (CALIF ONLY)

370 ₽
15

4VR-14933-00-00 ......SPRING, DIAPHRAGM

......SPRING, DIAPHRAGM

1 000 ₽
16

3DM-14216-00-00 ......SCREW (#1) (REAR)

......SCREW (#1) (REAR)

400 ₽
16

5FU-83790-00-00 ......HEATER ASSY. (15W) (#2) (FRONT)

......HEATER ASSY. (15W) (#2) (FRONT)

3 770 ₽
17

127-14198-00-00 ......GASKET (#1) (REAR)

......GASKET (#1) (REAR)

400 ₽
18

5FU-83790-10-00 ......HEATER ASSY. (20W)

......HEATER ASSY. (20W)

4 400 ₽
19

90201-08016-00 ......WASHER, PLATE (#1) (REAR)

......WASHER, PLATE (#1) (REAR)

430 ₽
19

90201-08016-00 ......WASHER, PLATE (#2) (FRONT)

......WASHER, PLATE (#2) (FRONT)

430 ₽
20

4DH-82103-00-00 ......TERMINAL 1 (#1) (REAR)

......TERMINAL 1 (#1) (REAR)

970 ₽
21

1HX-14147-00-00 ......O-RING

......O-RING

1 730 ₽
22

1AE-14227-00-00 ......O-RING

......O-RING

440 ₽
23

1AE-14261-00-00 ......HOLDER

......HOLDER

1 200 ₽
23

5SC-14261-00-00 ......HOLDER

......HOLDER

3 300 ₽
24

1AE-14237-00-00 ......GASKET

......GASKET

280 ₽
25

1HX-14565-00-00 ......SCREW

......SCREW

1 190 ₽
26

137-14153-00-00 ......WASHER, MAIN JET

......WASHER, MAIN JET

310 ₽
27

4TR-14940-00-00 ......DIAPHRAGM ASSY.

......DIAPHRAGM ASSY.

16 220 ₽
28

1UY-14565-00-00 ......SCREW

......SCREW

180 ₽
29

3KW-14486-00-00 ......SCREW, ROD (#2) (FRONT)

......SCREW, ROD (#2) (FRONT)

280 ₽
30

22V-14940-00-00 ......DIAPHRAGM ASSY.

......DIAPHRAGM ASSY.

2 670 ₽
31

26H-14275-00-00 ......SPRING (EXCEPT CALIF.)

......SPRING (EXCEPT CALIF.)

400 ₽
31

5SC-14275-00-00 ......SPRING (CALIF ONLY)

......SPRING (CALIF ONLY)

400 ₽
32

4TR-14348-00-00 ......PIPE 1

......PIPE 1

3 300 ₽
33

98507-04008-00 ......SCREW, PAN HEAD (#2) (FRONT)

......SCREW, PAN HEAD (#2) (FRONT)

160 ₽
33

98507-04008-00 ......SCREW, PAN HEAD (#1) (REAR)

......SCREW, PAN HEAD (#1) (REAR)

160 ₽
34

98707-04014-00 ......SCREW, FLAT HEAD (#2) (FRONT)

......SCREW, FLAT HEAD (#2) (FRONT)

290 ₽
34

98707-04014-00 ......SCREW, FLAT HEAD (#1) (REAR)

......SCREW, FLAT HEAD (#1) (REAR)

290 ₽
35

4VR-24453-00-00 ......SCREW (#2) (FRONT)

......SCREW (#2) (FRONT)

320 ₽
36

12R-14191-00-00 ......PLUG, DRAIN (EXCEPT CALIF.)

......PLUG, DRAIN (EXCEPT CALIF.)

880 ₽
36

5LW-14191-00-00 ......PLUG, DRAIN (CALIF ONLY)

......PLUG, DRAIN (CALIF ONLY)

780 ₽
37

4TR-14937-00-00 ............CLIP (CALIF ONLY) (#2) (FRONT)

............CLIP (CALIF ONLY) (#2) (FRONT)

1 730 ₽
38

1FN-14565-00-00 ......SCREW

......SCREW

340 ₽
39

353-14186-00-00 ......PIN, FLOAT

......PIN, FLOAT

340 ₽
40

1HX-14985-00-00 ......FLOAT

......FLOAT

5 030 ₽
41

5SC-1410H-10-00 ......FUEL CUT SOLENOID VALVE (CALIF ONLY) (#1) (REAR)

......FUEL CUT SOLENOID VALVE (CALIF ONLY) (#1) (REAR)

25 190 ₽
41

5SC-1410H-00-00 ......FUEL CUT SOLENOID VALVE (CALIF ONLY) (#2) (FRONT)

......FUEL CUT SOLENOID VALVE (CALIF ONLY) (#2) (FRONT)

25 190 ₽
42

256-14956-01-00 ............WASHER (CALIF ONLY)

............WASHER (CALIF ONLY)

310 ₽
43

4HM-14239-00-00 ...SEAL

...SEAL

1 040 ₽
44

4TR-1490L-00-00 ...STARTER LEVER SET, 1

...STARTER LEVER SET, 1

6 920 ₽
45

3KW-1490K-00-00 ...STOP SCREW SET

...STOP SCREW SET

1 440 ₽
46

36Y-14147-00-00 ...O-RING

...O-RING

720 ₽
47

1WG-14251-00-00 ...NIPPLE

...NIPPLE

1 730 ₽
48

4TR-14987-00-00 ...HOSE

...HOSE

4 250 ₽
49

4KM-24453-00-00 ...SCREW

...SCREW

480 ₽
50

4NK-85885-00-00 ...THROTTLE POSITION SENSOR ASS.

...THROTTLE POSITION SENSOR ASS.

25 190 ₽
51

5SC-81517-00-00 ...WIRE, SUB LEAD

...WIRE, SUB LEAD

0 ₽
52

35H-14139-00-00 ...CLIP, PIPE (CALIF ONLY)

...CLIP, PIPE (CALIF ONLY)

690 ₽
