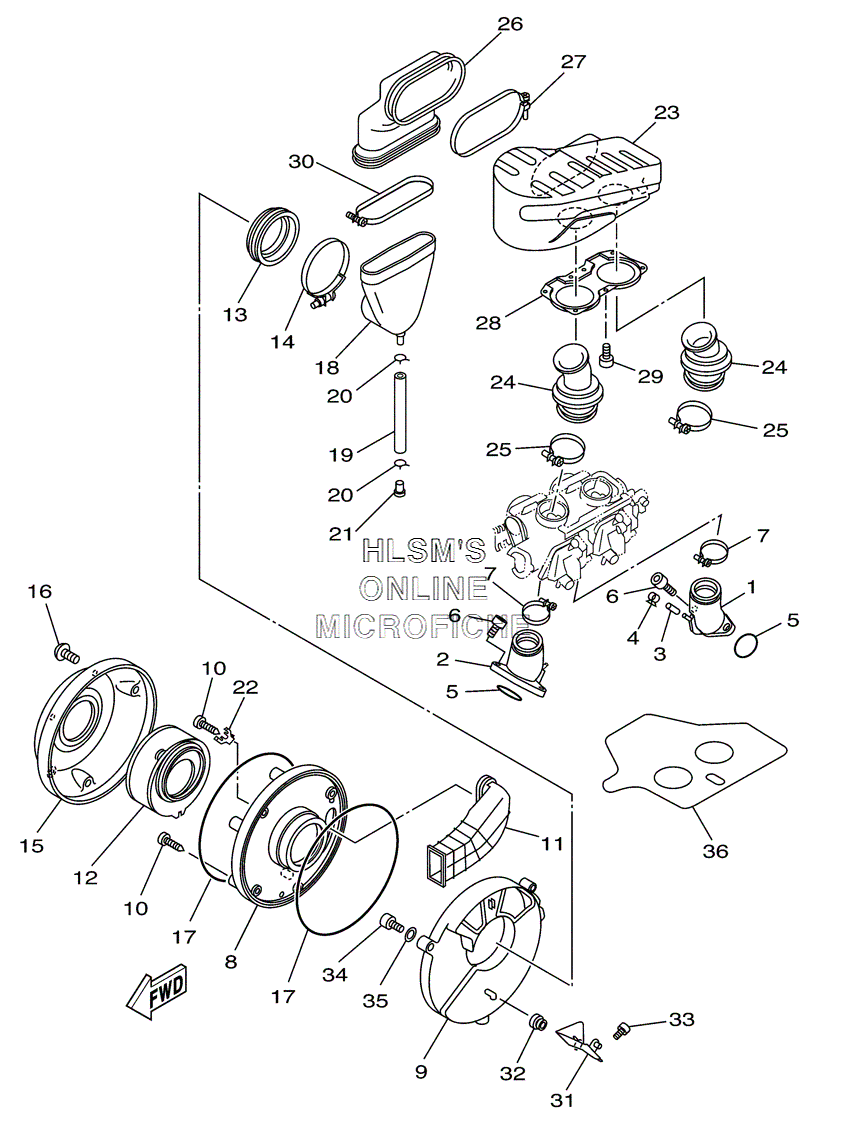

AIR CLEANER W/ INTAKE для Yamaha XVS 650 A V STAR CLASSIC - 2004 года выпуска`
-
№АртикулНазвание
-
14TR-13586-01-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
24TR-13596-01-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
316G-13569-00-00 PLUG, BLINDPLUG, BLIND
-
490467-10039-00 CLIPCLIP
-
593210-36769-00 O-RINGO-RING
-
691317-06020-00 BOLTBOLT
-
74TR-13474-01-00 BANDBAND
-
84TR-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
94TR-14417-01-00 COVER 1COVER 1
-
1097707-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
114TR-14437-00-00 DUCTDUCT
-
124TR-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
134TR-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
144TR-14456-00-00 BANDBAND
-
154TR-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
1692014-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
174TR-14452-00-00 SEALSEAL
-
184TR-1440G-00-00 JOINT, AIR FILTER 2JOINT, AIR FILTER 2
-
1990445-11587-00 HOSE (L100)HOSE (L100)
-
2090467-11106-00 CLIPCLIP
-
2190338-08174-00 PLUGPLUG
-
224TR-14413-00-00 STAYSTAY
-
234VR-14431-01-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
244TR-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
2590460-53200-00 CLAMP, HOSECLAMP, HOSE
-
264TR-1440F-00-00 JOINT, AIR FILTER 1JOINT, AIR FILTER 1
-
274TR-13575-00-00 BANDBAND
-
284VR-13594-00-00 COVER, MANIFOLD 2COVER, MANIFOLD 2
-
2997707-40106-00 SCREW, TAPPINGSCREW, TAPPING
-
304TR-14455-00-00 BANDBAND
-
314TR-14499-00-00 STAY 2STAY 2
-
3290480-13398-00 GROMMETGROMMET
-
3391317-06016-00 BOLTBOLT
-
3491317-06020-00 BOLTBOLT
-
3592907-06600-00 WASHER, PLATEWASHER, PLATE
-
364TR-12682-01-00 PROTECTOR, HEATPROTECTOR, HEAT
