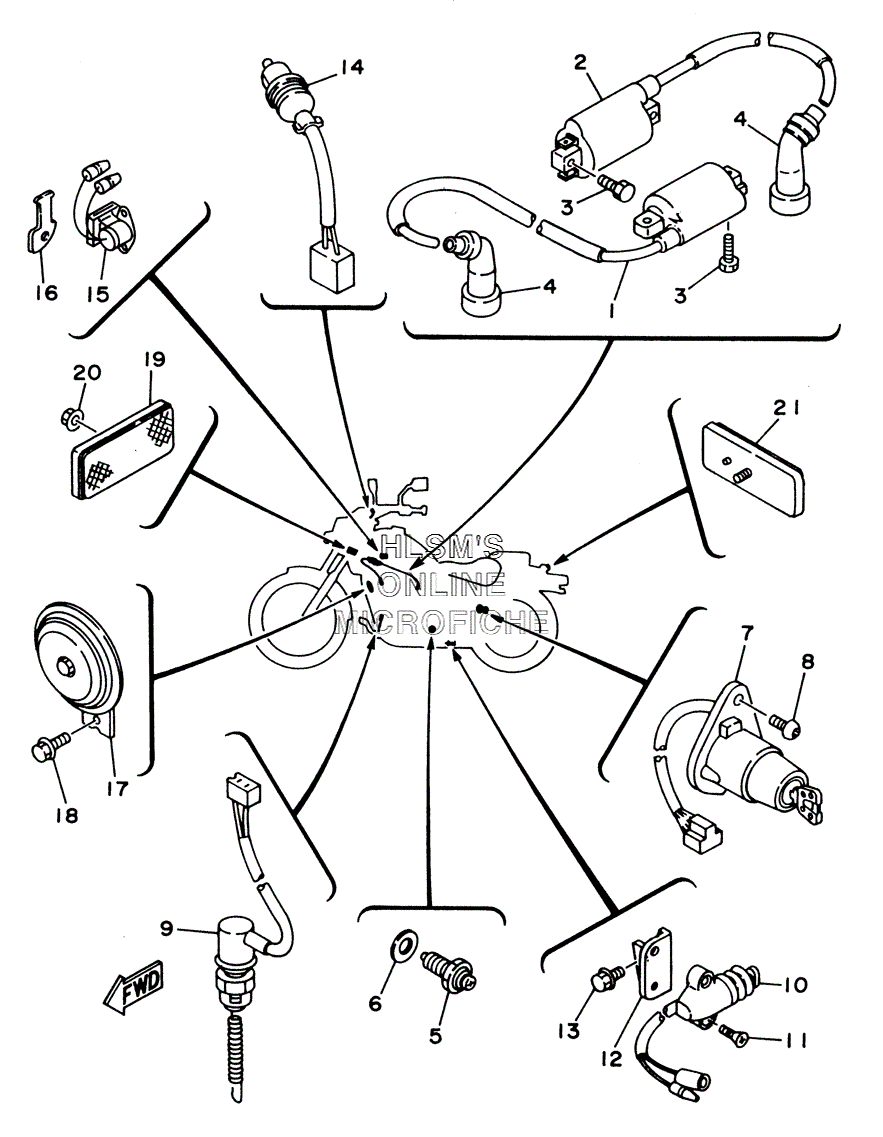

ELECTRICAL 2 для Yamaha XV 250 VIRAGO CALIFORNIA - 2004 года выпуска`
-
№АртикулНазвание
-
12UJ-82310-01-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
22UJ-82320-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
397007-05020-00 BOLTBOLT
-
41UY-82370-20-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
54KM-82540-00-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
690430-10148-00 GASKETGASKET
-
72UJ-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
890149-06228-00 SCREWSCREW
-
92UJ-82530-02-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
103LD-82566-60-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
1190157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
122UJ-82565-00-00 PANEL, SWITCHPANEL, SWITCH
-
1395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
142UJ-83980-00-00 FRONT STOP SWITCH ASSY.FRONT STOP SWITCH ASSY.
-
155FU-82560-20-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
163BG-82571-00-00 PANEL, SWITCH (CALIF ONLY)PANEL, SWITCH (CALIF ONLY)
-
163DM-82571-00-00 PANEL, SWITCH (EXCEPT CALIF.)PANEL, SWITCH (EXCEPT CALIF.)
-
171HX-83371-00-00 HORNHORN
-
1895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1911H-85110-01-00 REFLECTOR ASSY.REFLECTOR ASSY.
-
2095707-05500-00 NUT, FLANGENUT, FLANGE
