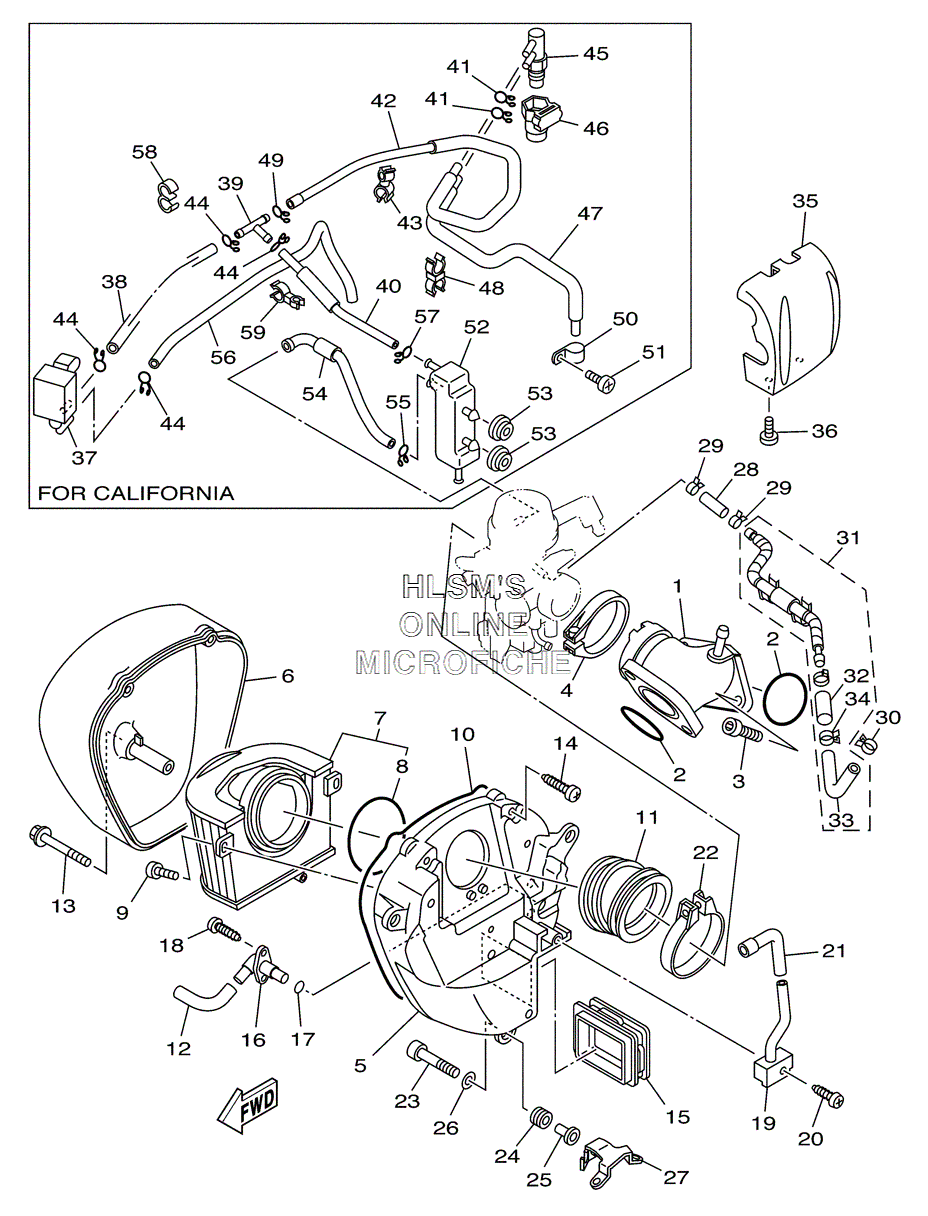

AIR CLEANER W/ INTAKE для Yamaha XV 1700 AM ROAD STAR MIDNIGHT CALIFORNIA - 2004 года выпуска`
-
№АртикулНазвание
-
15VN-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-505A4-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
490450-59003-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
55VN-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
64WM-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
75VN-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
893210-77040-00 ...O-RING...O-RING
-
998904-06014-00 SCREW, BINDSCREW, BIND
-
104WM-14452-00-00 SEALSEAL
-
114WM-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
125VN-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
1390149-06331-00 SCREWSCREW
-
1497707-60540-00 SCREW, TAPPINGSCREW, TAPPING
-
155VN-14437-00-00 DUCTDUCT
-
165VN-14485-00-00 PIPE, JOINTPIPE, JOINT
-
1793210-13361-00 O-RINGO-RING
-
1897707-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
195VN-14413-00-00 STAYSTAY
-
2097707-50516-00 SCREW, TAPPINGSCREW, TAPPING
-
215VN-14419-00-00 PIPEPIPE
-
2290450-67001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
2391314-06025-00 BOLTBOLT
-
2490480-14023-00 GROMMETGROMMET
-
2590387-07391-00 COLLARCOLLAR
-
2690201-06062-00 WASHER, PLATEWASHER, PLATE
-
275VN-14498-00-00 STAY 1STAY 1
-
2890445-146K8-00 HOSE (L30)HOSE (L30)
-
2990467-13083-00 CLIPCLIP
-
3090467-11028-00 CLIPCLIP
-
315VN-14295-01-00 PIPE, FUELPIPE, FUEL
-
325VN-1442F-00-00 ...PROTECTOR...PROTECTOR
-
335VN-14294-00-00 ...HOSE...HOSE
-
3490467-11028-00 ...CLIP...CLIP
-
354WM-13993-01-00 COVER, CONTROL RACKCOVER, CONTROL RACK
-
3698504-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
374WM-14896-00-00 VALVE, OUTER VENT CONTROL 2VALVE, OUTER VENT CONTROL 2
-
385VN-24325-00-00 PIPE 14PIPE 14
-
3990413-07007-00 WAY 3WAY 3
-
405VN-24324-00-00 PIPE 13PIPE 13
-
4190467-08075-00 CLIPCLIP
-
425VN-1443G-00-00 PIPE, DRAIN 2PIPE, DRAIN 2
-
4390468-80181-00 CLIPCLIP
-
4490467-10041-00 CLIPCLIP
-
455VN-14303-00-00 COMPENSATOR ASSY.COMPENSATOR ASSY.
-
465VN-14261-00-00 HOLDERHOLDER
-
475VN-1443H-00-00 PIPE, DRAIN 3PIPE, DRAIN 3
-
4890464-13260-00 CLAMPCLAMP
-
4990467-09103-00 CLIPCLIP
-
5090461-15100-00 CLAMPCLAMP
-
5198907-05012-00 SCREW, BINDSCREW, BIND
-
524WM-1446E-00-00 TANK, SURGETANK, SURGE
-
5390480-13567-00 GROMMETGROMMET
-
544WM-14349-02-00 PIPEPIPE
-
5590467-10041-00 CLIPCLIP
-
565VN-14348-00-00 PIPE 1PIPE 1
-
5790467-10041-00 CLIPCLIP
-
5890464-09M31-00 CLAMPCLAMP
-
5990464-11001-00 CLAMPCLAMP
