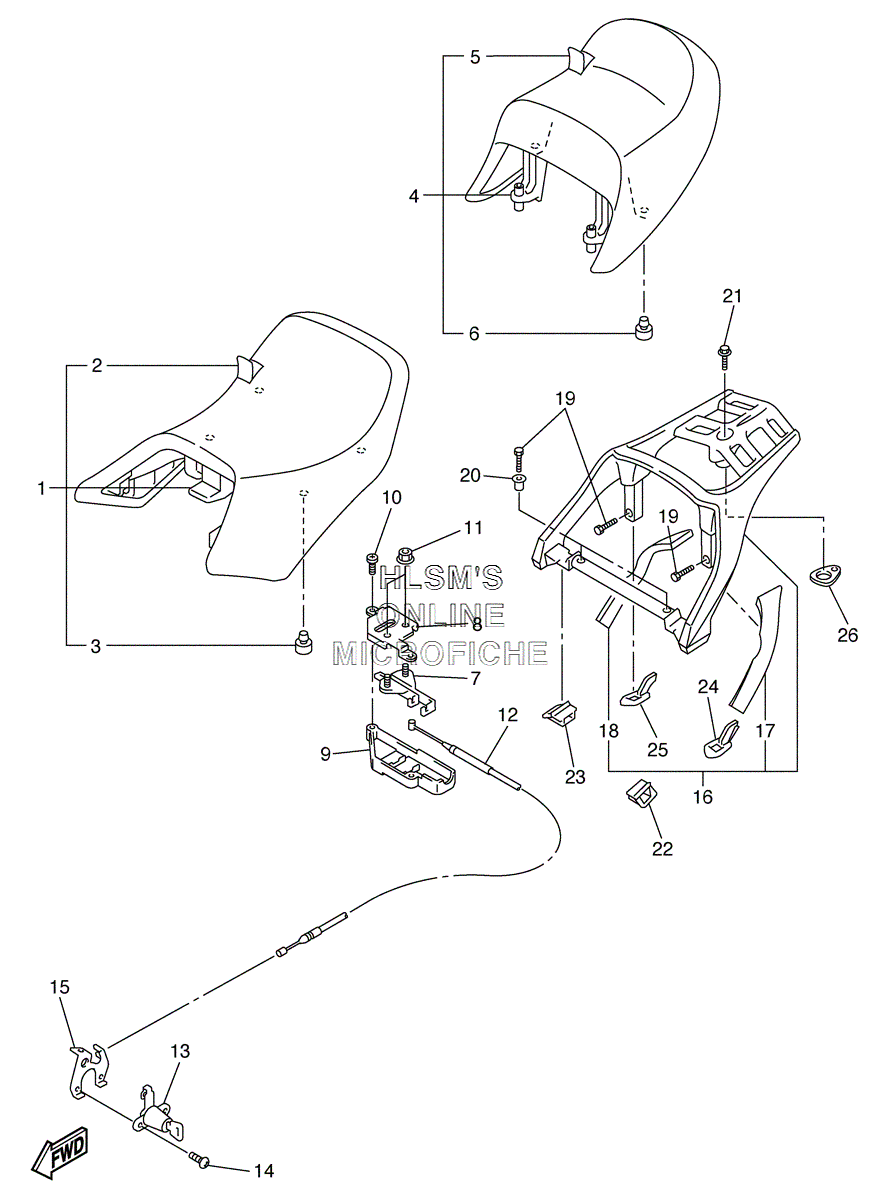

SEAT для Yamaha FJR 1300 A FJR1300 ABS - 2004 года выпуска`
-
№АртикулНазвание
-
15JW-24710-00-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
25JW-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35JW-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
45JW-24750-01-00 TANDEM SEAT ASSY.TANDEM SEAT ASSY.
-
55JW-2470F-10-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
65JW-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
74BP-24780-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
85VS-24792-00-00 PLATEPLATE
-
95JJ-2475X-01-00 COVER,2COVER,2
-
1097707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
1195707-06500-00 NUT, FLANGENUT, FLANGE
-
125JW-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
132TV-W2470-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
1490149-06308-00 SCREWSCREW
-
155JW-2117K-00-00 STAY, LOCKSTAY, LOCK
-
165JW-24773-00-P3 HANDLE, SEAT (BLUISH SILVER (BS4)HANDLE, SEAT (BLUISH SILVER (BS4)
-
175JW-2475X-00-00 ...COVER, 2...COVER, 2
-
185JW-2475X-10-00 ...COVER, 2...COVER, 2
-
1990109-082A1-00 BOLTBOLT
-
2090387-09003-00 COLLARCOLLAR
-
2190105-08310-00 BOLT, FLANGEBOLT, FLANGE
-
225JW-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
235JW-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
245JW-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
255JW-24737-10-00 DAMPER, SEATDAMPER, SEAT
-
265JW-24747-00-00 DAMPER, SEATDAMPER, SEAT
