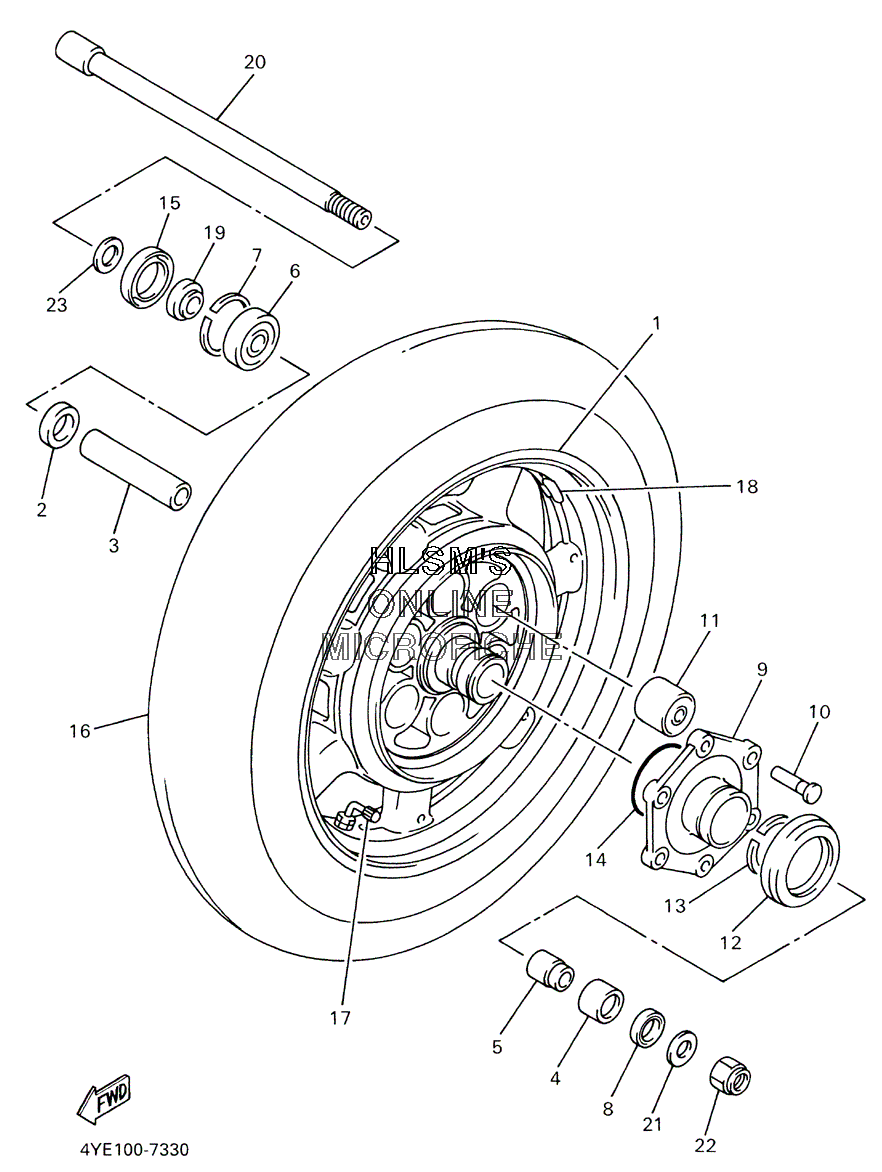

WHEEL - REAR для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2003 года выпуска`
-
№АртикулНазвание
-
14NK-25338-00-WG CAST WHEEL, REAR (SILVER (HTS))CAST WHEEL, REAR (SILVER (HTS))
-
22H7-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
390387-2008H-00 COLLARCOLLAR
-
493317-32677-00 BEARINGBEARING
-
590387-2007J-00 COLLARCOLLAR
-
693306-30437-00 BEARINGBEARING
-
799009-52500-00 CIRCLIPCIRCLIP
-
893102-25064-00 OIL SEALOIL SEAL
-
926H-25366-01-00 CLUTCH, HUBCLUTCH, HUB
-
1090249-12167-00 PINPIN
-
111FK-25364-00-00 DAMPERDAMPER
-
121J7-25319-02-00 SEAL, HUB DUSTSEAL, HUB DUST
-
1393440-45022-00 CIRCLIPCIRCLIP
-
1493210-68347-00 O-RINGO-RING
-
1593106-40027-00 OIL SEALOIL SEAL
-
1694115-1513D-00 TIRE (150/90B15M/C 74H D404) (DUNLOP)TIRE (150/90B15M/C 74H D404) (DUNLOP)
-
1694115-1513W-00 TIRE (150/90B15M/C 74H G702) (BRIDGESTONE)TIRE (150/90B15M/C 74H G702) (BRIDGESTONE)
-
1793900-00025-00 VALVE, RIMVALVE, RIM
-
185MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
185MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
185MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
1990387-200J2-00 COLLARCOLLAR
-
204YE-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2190201-181U5-00 WASHER, PLATEWASHER, PLATE
-
2290185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2392903-20600-00 WASHERWASHER
