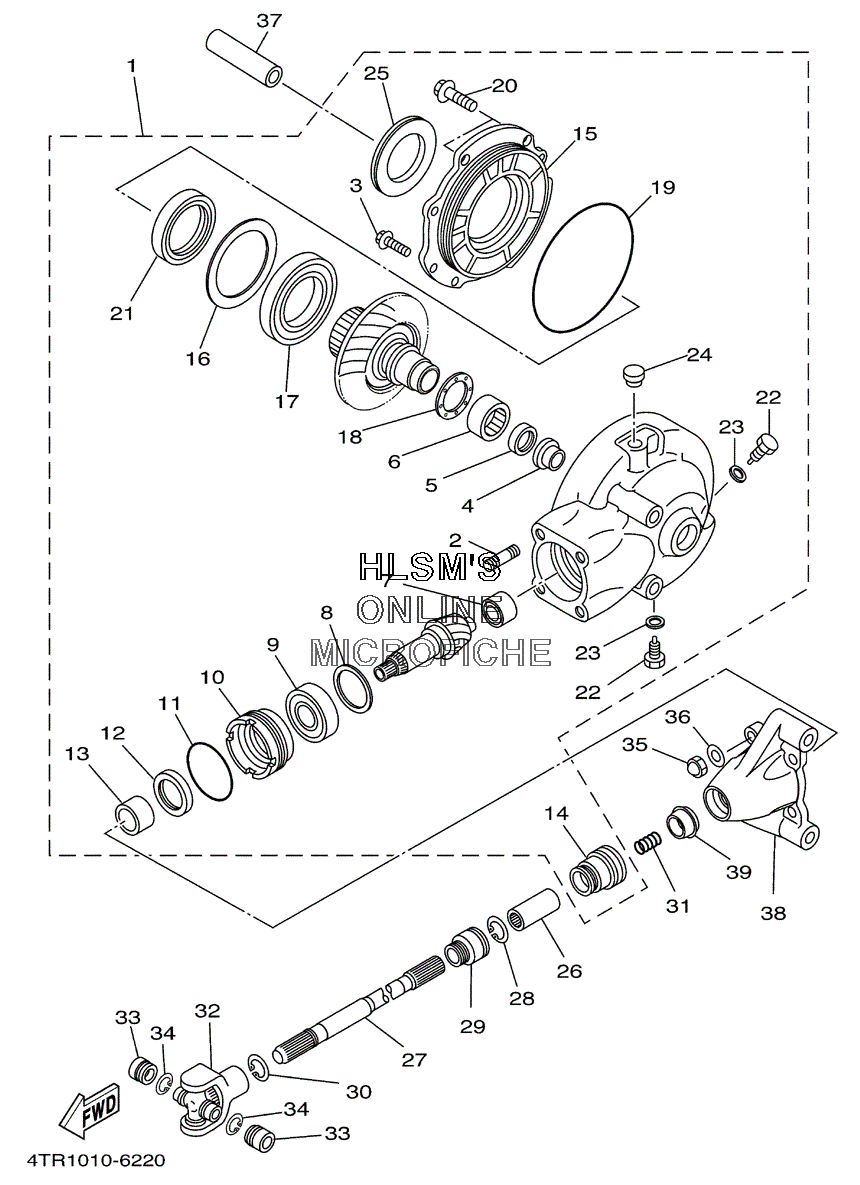

DRIVE SHAFT W/ GEAR CASE для Yamaha XVS 650 AT V STAR SILVERADO - 2003 года выпуска`
-
№АртикулНазвание
-
14TR-46101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
290116-10361-00 ......BOLT, STUD......BOLT, STUD
-
390119-08126-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
422U-46153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
593101-30084-00 ...OIL SEAL...OIL SEAL
-
693311-43729-00 ...BEARING...BEARING
-
72H7-46102-00-00 ...BEARING ASSY...BEARING ASSY
-
81J7-17537-Y0-30 ...SHIM, THRUST (0.30T) (OPT)...SHIM, THRUST (0.30T) (OPT)
-
81J7-17537-Y0-40 ...SHIM, THRUST (0.40T) (OPT)...SHIM, THRUST (0.40T) (OPT)
-
81J7-17537-Y0-50 ...SHIM, THRUST (0.50T) (OPT)...SHIM, THRUST (0.50T) (OPT)
-
993306-30539-00 ...BEARING...BEARING
-
104H7-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
1193210-60426-00 ...O-RING...O-RING
-
1293101-38098-00 ...OIL SEAL...OIL SEAL
-
1390387-256G9-00 ...COLLAR...COLLAR
-
1422U-46136-00-00 ...SEAL 1...SEAL 1
-
1522U-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
1622U-46117-00-25 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
1622U-46117-00-30 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
1622U-46117-00-40 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
1793316-01301-00 ...BEARING...BEARING
-
1822U-46118-00-12 ...SHIM, THRUST (1.2T) (OPT)...SHIM, THRUST (1.2T) (OPT)
-
1822U-46118-00-14 ...SHIM, THRUST (1.4T) (OPT)...SHIM, THRUST (1.4T) (OPT)
-
1822U-46118-00-16 ...SHIM, THRUST (1.6T) (OPT)...SHIM, THRUST (1.6T) (OPT)
-
1822U-46118-00-18 ...SHIM, THRUST (1.8T) (OPT)...SHIM, THRUST (1.8T) (OPT)
-
1822U-46118-00-20 ...SHIM, THRUST (2.0T) (OPT)...SHIM, THRUST (2.0T) (OPT)
-
1993211-39569-00 ...O-RING...O-RING
-
2095817-10025-00 ......BOLT, FLANGE......BOLT, FLANGE
-
2193102-65277-00 ...OIL SEAL...OIL SEAL
-
2290340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
23214-11198-01-00 ...GASKET...GASKET
-
2456W-17590-00-00 ...BREATHER COMP....BREATHER COMP.
-
251J7-25319-02-00 ...SEAL, HUB DUST...SEAL, HUB DUST
-
2622U-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
275BN-46171-00-00 SHAFT DRIVE ASSYSHAFT DRIVE ASSY
-
2899009-18400-00 CIRCLIPCIRCLIP
-
2922U-46137-00-00 SEAL 2SEAL 2
-
3093410-22039-00 CIRCLIPCIRCLIP
-
3190501-15722-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
324X7-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3393399-99926-00 BEARINGBEARING
-
3493440-20088-00 CIRCLIPCIRCLIP
-
3590176-10075-00 NUT, CROWNNUT, CROWN
-
3692990-10600-00 WASHERWASHER
-
3790387-1510D-00 COLLARCOLLAR
-
384TR-46154-00-00 COVER, HOUSINGCOVER, HOUSING
-
394TR-46297-00-00 COVER, DUSTCOVER, DUST
