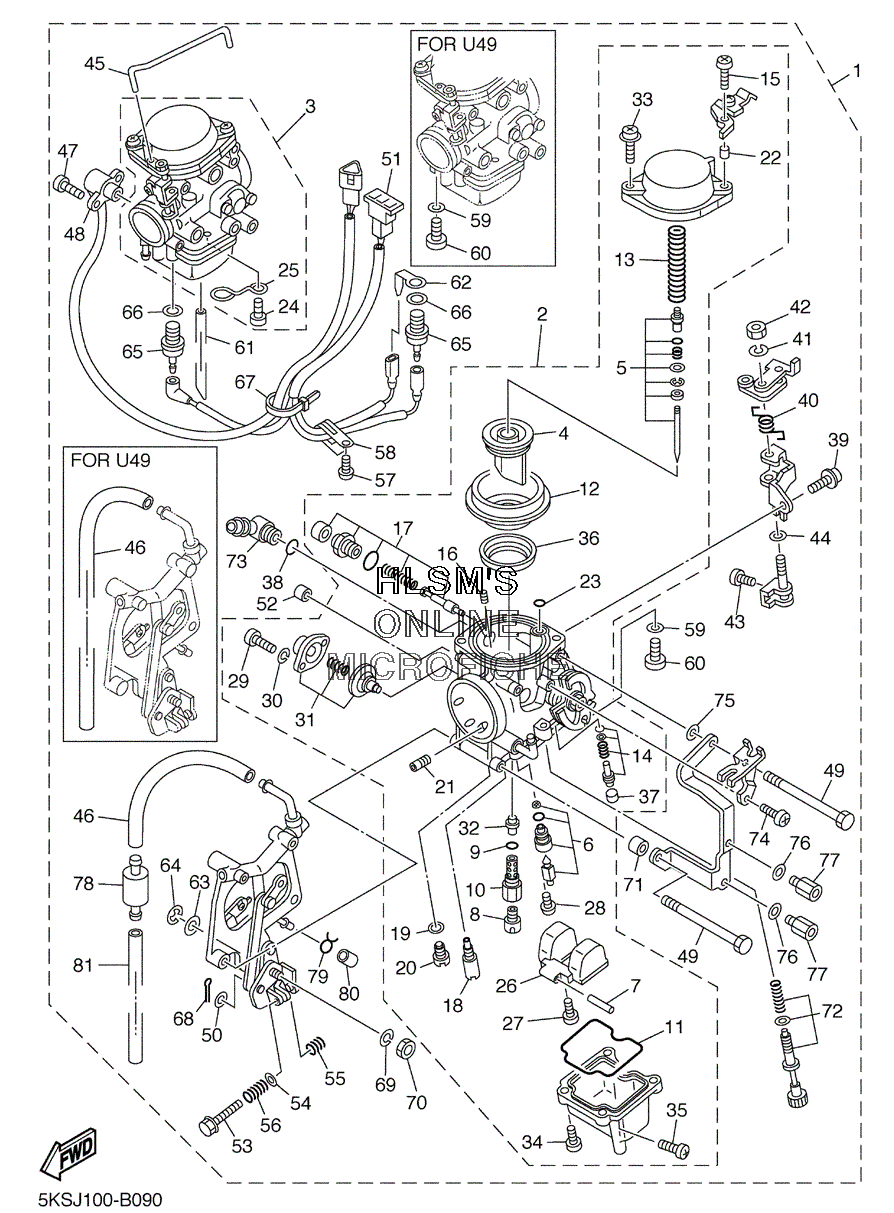

CARBURETOR для Yamaha XVS 1100 AW V STAR CLASSIC COAST - 2003 года выпуска
-
№АртикулНазвание
-
15EL-14900-40-00 CARBURETOR ASSY (EXCEPT CALIF)CARBURETOR ASSY (EXCEPT CALIF)
-
15EL-14900-50-00 CARBURETOR ASSY (CALIF ONLY)CARBURETOR ASSY (CALIF ONLY)
-
25EL-14901-40-00 ......CARBURETOR ASSY 1 - REAR (EXCEPT CALIF)......CARBURETOR ASSY 1 - REAR (EXCEPT CALIF)
-
25EL-14901-50-00 ......CARBURETOR ASSY 1 - REAR (CALIF ONLY)......CARBURETOR ASSY 1 - REAR (CALIF ONLY)
-
35EL-14902-40-00 ......CARBURETOR ASSY 2 - FRONT (EXCEPT CALIF)......CARBURETOR ASSY 2 - FRONT (EXCEPT CALIF)
-
35EL-14902-50-00 ......CARBURETOR ASSY 2 - FRONT (CALIF ONLY)......CARBURETOR ASSY 2 - FRONT (CALIF ONLY)
-
45EL-14112-00-00 .........VALVE, THROTTLE 1.........VALVE, THROTTLE 1
-
55EL-1490J-20-00 .........NEEDLE SET.........NEEDLE SET
-
65EL-14107-12-00 .........NEEDLE VALVE SET.........NEEDLE VALVE SET
-
7127-14186-00-00 .........PIN, FLOAT.........PIN, FLOAT
-
83G2-14231-22-00 .........JET, MAIN (#110) - CARB ASSY 1 (CALIF ONLY).........JET, MAIN (#110) - CARB ASSY 1 (CALIF ONLY)
-
83G2-1423A-73-00 .........JET, MAIN (#112.5) - CARB ASSY 2 (EXCEPT CALIF).........JET, MAIN (#112.5) - CARB ASSY 2 (EXCEPT CALIF)
-
9583-14561-00-00 .........O-RING.........O-RING
-
105EL-14261-00-00 .........HOLDER.........HOLDER
-
115DM-14561-00-00 .........O-RING.........O-RING
-
125EL-24411-00-00 .........DIAPHRAGM.........DIAPHRAGM
-
134KM-14933-00-00 .........SPRING, DIAPHRAGM.........SPRING, DIAPHRAGM
-
144SV-14105-00-00 .........PILOT SCREW SET.........PILOT SCREW SET
-
1598502-05016-00 .........SCREW, PAN HEAD.........SCREW, PAN HEAD
-
161HX-14231-29-00 .........JET, MAIN (#145).........JET, MAIN (#145)
-
175EL-1410A-00-00 .........STARTER SET.........STARTER SET
-
184KM-14142-17-00 .........JET, PILOT (# 17.5).........JET, PILOT (# 17.5)
-
195EL-14918-00-00 .........RING.........RING
-
203G2-1423A-59-00 .........JET, MAIN (# 42.5).........JET, MAIN (# 42.5)
-
211HX-1423E-25-00 .........JET, MAIN.........JET, MAIN
-
224KM-14194-00-00 .........RING.........RING
-
23354-14147-00-00 .........O-RING.........O-RING
-
2498507-04012-00 .........SCREW, PAN HEAD - CARB ASSY 2.........SCREW, PAN HEAD - CARB ASSY 2
-
255EL-14919-00-00 .........CLIP - CARB ASSY 2.........CLIP - CARB ASSY 2
-
265DM-14985-00-00 .........FLOAT.........FLOAT
-
2798507-04008-00 .........SCREW, PAN HEAD.........SCREW, PAN HEAD
-
281FN-14565-00-00 .........SCREW.........SCREW
-
2998507-04014-00 .........SCREW, PAN HEAD.........SCREW, PAN HEAD
-
3092907-04100-00 .........WASHER, SPRING.........WASHER, SPRING
-
315EL-1490H-00-00 .........DIAPHRAGM SET 5.........DIAPHRAGM SET 5
-
325DM-14141-40-00 .........NOZZLE, MAIN.........NOZZLE, MAIN
-
334KM-14216-00-00 .........SCREW - CARB ASSY 1.........SCREW - CARB ASSY 1
-
334KM-14216-00-00 .........SCREW - CARB ASSY 2.........SCREW - CARB ASSY 2
-
3498507-04010-00 .........SCREW, PAN HEAD - CARB ASSY 2.........SCREW, PAN HEAD - CARB ASSY 2
-
3498507-04010-00 .........SCREW, PAN HEAD - CARB ASSY 1.........SCREW, PAN HEAD - CARB ASSY 1
-
3512R-14191-00-00 .........PLUG, DRAIN.........PLUG, DRAIN
-
365EL-14561-00-00 .........O-RING.........O-RING
-
373F9-14118-00-00 .........CAP.........CAP
-
383LN-1416A-00-00 .........O-RING.........O-RING
-
394SV-24453-00-00 .........SCREW.........SCREW
-
405EL-14935-00-00 .........SPRING.........SPRING
-
4192902-05100-00 .........WASHER, SPRING.........WASHER, SPRING
-
4295302-05700-00 .........NUT.........NUT
-
4311H-14991-00-00 .........SCREW.........SCREW
-
4431H-14194-00-00 .........RING.........RING
-
455EL-14577-00-00 .........ROD.........ROD
-
464YW-14987-00-00 .........HOSE (EXCEPT CALIF).........HOSE (EXCEPT CALIF)
-
465EL-14987-10-00 .........HOSE (CALIF ONLY).........HOSE (CALIF ONLY)
-
474WM-14565-00-00 .........SCREW.........SCREW
-
485EL-85885-00-00 .........THROTTLE SENSOR ASSY.........THROTTLE SENSOR ASSY
-
495EL-14592-00-00 .........SCREW.........SCREW
-
504NK-14285-00-00 .........WASHER.........WASHER
-
515KS-81517-00-00 .........WIRE, SUB LEAD.........WIRE, SUB LEAD
-
525EL-14987-00-00 .........HOSE.........HOSE
-
535EL-14991-00-00 .........SCREW.........SCREW
-
5422F-14117-00-00 .........WASHER, PLUG SCREW.........WASHER, PLUG SCREW
-
555EL-14212-00-00 .........SPRING, PILOT ADJUSTING.........SPRING, PILOT ADJUSTING
-
563F7-14133-00-00 .........SPRING, THROTTLE STOP.........SPRING, THROTTLE STOP
-
5798507-04006-00 .........SCREW, PAN HEAD.........SCREW, PAN HEAD
-
5890461-06087-00 .........CLAMP.........CLAMP
-
59127-14198-00-00 .........GASKET.........GASKET
-
603DM-14216-00-00 .........SCREW.........SCREW
-
615EL-14197-00-00 .........PIPE.........PIPE
-
624DH-82103-00-00 .........TERMINAL 1.........TERMINAL 1
-
631A8-14953-00-00 .........WASHER.........WASHER
-
64812-14137-00-00 .........CLIP.........CLIP
-
655FU-83790-20-00 .........HEATER ASSY.........HEATER ASSY
-
6690201-08016-00 .........WASHER, PLATE.........WASHER, PLATE
-
6735H-14139-00-00 .........CLIP, PIPE.........CLIP, PIPE
-
6891492-10008-00 .........PIN, COTTER.........PIN, COTTER
-
6992906-06100-00 .........WASHER, SPRING.........WASHER, SPRING
-
7095382-06700-00 .........NUT.........NUT
-
715EL-14149-00-00 .........PIPE.........PIPE
-
725EL-14103-00-00 .........THROTTLE SCREW SET.........THROTTLE SCREW SET
-
735EL-14251-00-00 .........NIPPLE.........NIPPLE
-
7498507-04010-00 .........SCREW, PAN HEAD.........SCREW, PAN HEAD
-
7592902-06600-00 .........WASHER, PLATE.........WASHER, PLATE
-
761FK-14179-00-00 .........WASHER, STARTER LEVER.........WASHER, STARTER LEVER
-
775EL-14592-10-00 .........SCREW.........SCREW
-
784X7-2149Y-00-00 .........FILTER ASSY.........FILTER ASSY
-
798A7-14139-00-00 .........CLIP, PIPE.........CLIP, PIPE
-
80895-14169-00-00 .........CAP.........CAP
-
815EL-14987-20-00 .........HOSE.........HOSE
