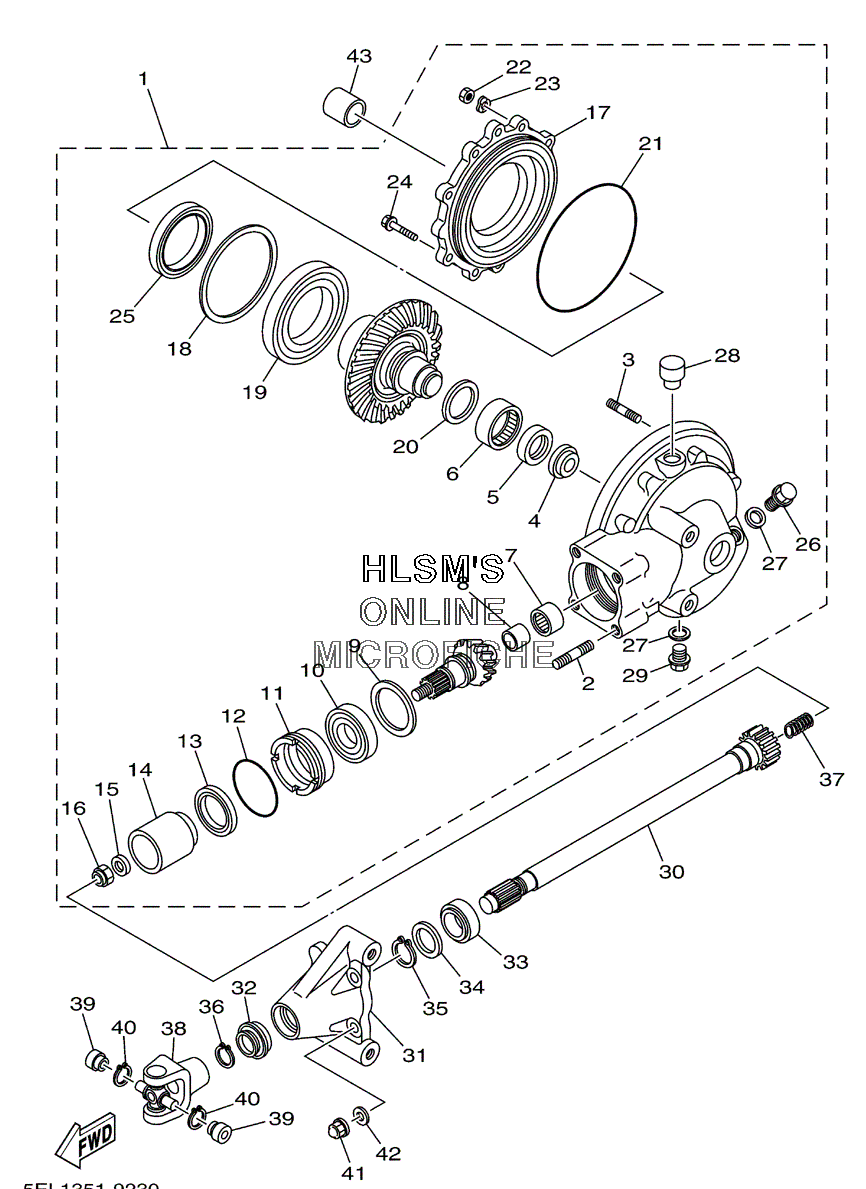

DRIVE SHAFT W/ GEAR CASE для Yamaha XVS 1100 AT V STAR SILVERADO - 2003 года выпуска`
-
№АртикулНазвание
-
15EL-46101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
290116-10593-00 ...BOLT, STUD...BOLT, STUD
-
390116-08360-00 ...BOLT, STUD...BOLT, STUD
-
45EL-46153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
593101-30084-00 ...OIL SEAL...OIL SEAL
-
693311-43729-00 ...BEARING...BEARING
-
793317-41510-00 ...BEARING...BEARING
-
82H7-46122-00-00 ...RACE, INNER...RACE, INNER
-
91J7-17537-Y0-30 ...SHIM, THRUST (0.30T) (OPT)...SHIM, THRUST (0.30T) (OPT)
-
91J7-17537-Y0-50 ...SHIM, THRUST (0.50T) (OPT)...SHIM, THRUST (0.50T) (OPT)
-
91J7-17537-Y0-40 ...SHIM, THRUST (0.40T) (OPT)...SHIM, THRUST (0.40T) (OPT)
-
1093306-30533-00 ...BEARING (B6305RB1 SPECIAL)...BEARING (B6305RB1 SPECIAL)
-
114H7-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
1293210-60426-00 ...O-RING...O-RING
-
1393101-38098-00 ...OIL SEAL...OIL SEAL
-
144H7-46123-01-00 ...COUPLING, GEAR...COUPLING, GEAR
-
1590201-14632-00 ...WASHER, PLATE...WASHER, PLATE
-
1690185-14070-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
174H7-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
181J7-46117-Y0-25 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
181J7-46117-Y0-30 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
181J7-46117-Y0-40 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
181J7-46117-Y0-50 ...SHIM, RING GEAR (0.50T) (OPT)...SHIM, RING GEAR (0.50T) (OPT)
-
1993316-01403-00 ...BEARING...BEARING
-
2022U-46118-00-12 ...SHIM, THRUST (1.2T) (OPT)...SHIM, THRUST (1.2T) (OPT)
-
2022U-46118-00-14 ...SHIM, THRUST (1.4T) (OPT)...SHIM, THRUST (1.4T) (OPT)
-
2022U-46118-00-16 ...SHIM, THRUST (1.6T) (OPT)...SHIM, THRUST (1.6T) (OPT)
-
2022U-46118-00-18 ...SHIM, THRUST (1.8T) (OPT)...SHIM, THRUST (1.8T) (OPT)
-
2022U-46118-00-20 ...SHIM, THRUST (2.0T) (OPT)...SHIM, THRUST (2.0T) (OPT)
-
2193211-44348-00 ...O-RING...O-RING
-
2295317-08600-00 ...NUT...NUT
-
2392907-08700-00 ...WASHER...WASHER
-
2495827-10025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2593102-70167-00 ...OIL SEAL...OIL SEAL
-
2690340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
27214-11198-01-00 ...GASKET...GASKET
-
2856W-17590-00-00 ...BREATHER COMP....BREATHER COMP.
-
2990340-14135-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
305EL-46171-00-00 SHAFT DRIVE ASSYSHAFT DRIVE ASSY
-
315EL-46154-00-00 COVER, HOUSINGCOVER, HOUSING
-
325EL-46297-00-00 COVER, DUSTCOVER, DUST
-
3393108-43014-00 OIL SEALOIL SEAL
-
3490201-266L1-00 WASHER, PLATEWASHER, PLATE
-
3593410-26067-00 CIRCLIPCIRCLIP
-
3693410-22039-00 CIRCLIPCIRCLIP
-
3790501-16491-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
384X7-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
3993311-21044-00 BEARINGBEARING
-
4093440-20088-00 CIRCLIPCIRCLIP
-
4190176-10075-00 NUT, CROWNNUT, CROWN
-
4292990-10600-00 WASHER, PLATEWASHER, PLATE
-
4390387-172A5-00 COLLARCOLLAR
