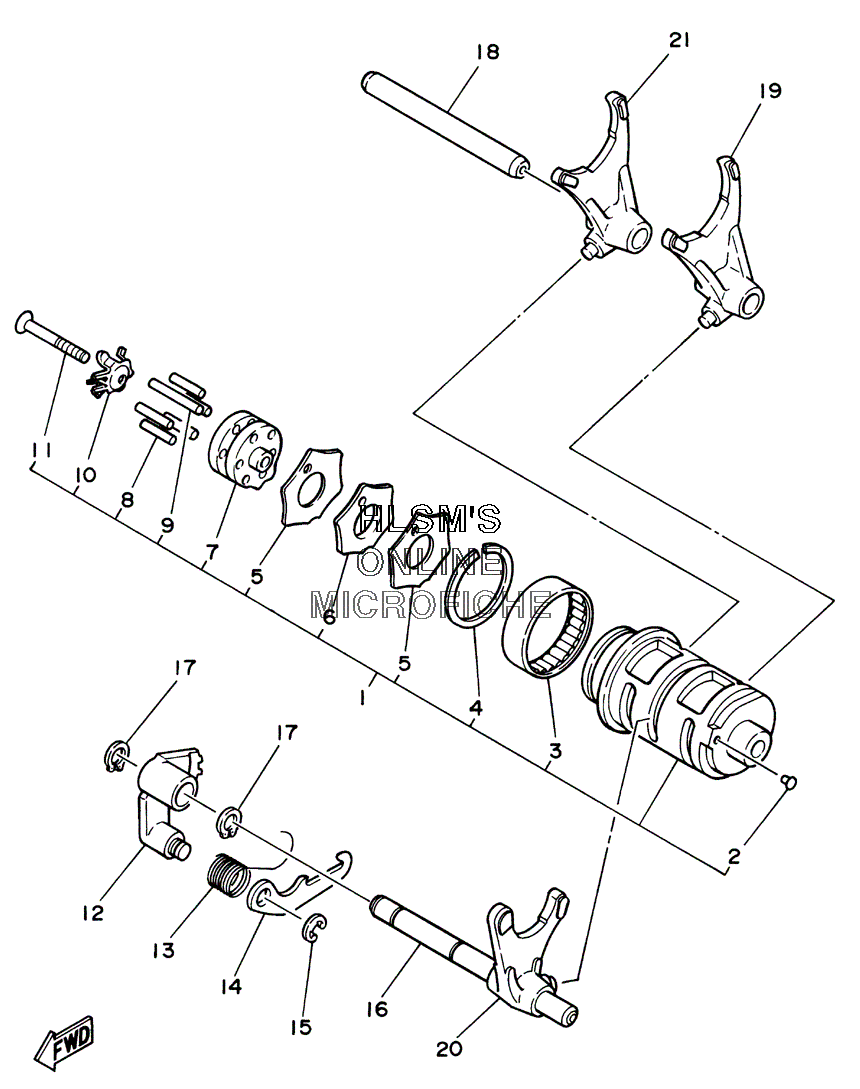

SHIFT CAM W/ FORK для Yamaha XV 250 VIRAGO - 2003 года выпуска`
-
№АртикулНазвание
-
14DN-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
2136-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
393315-23612-00 ...BEARING...BEARING
-
493440-34025-00 ...CIRCLIP...CIRCLIP
-
53Y1-18161-00-00 ...GUIDE, PLATE STOPPER...GUIDE, PLATE STOPPER
-
63Y1-18141-00-00 ...PLATE, STOPPER...PLATE, STOPPER
-
73Y1-18185-01-00 ...SEGMENT...SEGMENT
-
893604-18100-00 ...PIN, DOWEL...PIN, DOWEL
-
993604-29151-00 ...PIN, DOWEL...PIN, DOWEL
-
102K9-18561-00-00 ...PLATE, SIDE 1...PLATE, SIDE 1
-
1198707-05035-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
123Y1-18122-00-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
1390508-12430-00 SPRING, TORSIONSPRING, TORSION
-
142K7-18151-00-00 LEVER, SHIFT 3LEVER, SHIFT 3
-
1599001-07600-00 CIRCLIPCIRCLIP
-
164DN-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1799009-10400-00 CIRCLIPCIRCLIP
-
184SH-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
194DN-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
204DN-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
214DN-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
