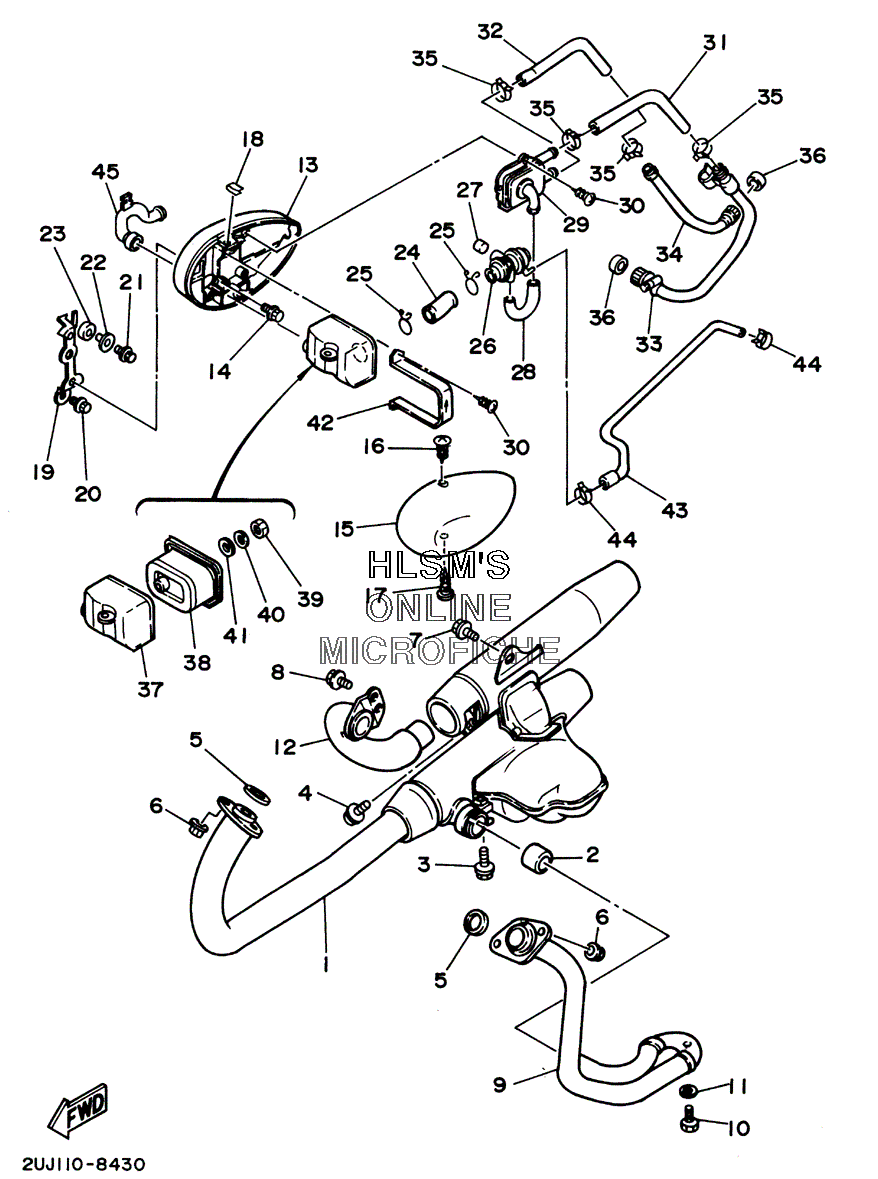

EXHAUST для Yamaha XV 250 VIRAGO CALIFORNIA - 2003 года выпуска`
-
№АртикулНазвание
-
12UJ-14703-02-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
24FU-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
395817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
495807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
53DM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
690179-06668-00 NUTNUT
-
795807-10014-00 BOLT, FLANGEBOLT, FLANGE
-
895807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
92UJ-14621-00-00 PIPE, EXHAUST 2PIPE, EXHAUST 2
-
1090101-06576-00 BOLTBOLT
-
1192990-06600-00 WASHER, PLATEWASHER, PLATE
-
122UJ-14631-00-00 PIPE, EXHAUST 3PIPE, EXHAUST 3
-
132GV-14663-00-00 PLATE, AIR CLEANERPLATE, AIR CLEANER
-
1495807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
152GV-14603-00-00 COVER 1COVER 1
-
1697704-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
1790163-04003-00 SCREW, TAPPINGSCREW, TAPPING
-
1890183-04027-00 NUT, SPRINGNUT, SPRING
-
192UJ-14484-00-00 PLATE, CLEANER CASE FITTINGPLATE, CLEANER CASE FITTING
-
2095807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2195807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2290387-07391-00 COLLARCOLLAR
-
2390385-10026-00 BUSHBUSH
-
243BM-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
2590467-26111-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
263BG-14840-00-00 AIR CUT VALVE ASS'Y (CALIF ONLY)AIR CUT VALVE ASS'Y (CALIF ONLY)
-
2790338-10132-00 PLUG (CALIF ONLY)PLUG (CALIF ONLY)
-
283BM-14883-00-00 HOSE, BEND 3 (CALIF ONLY)HOSE, BEND 3 (CALIF ONLY)
-
2942H-14808-00-00 REED VALVE ASSY (CALIF ONLY)REED VALVE ASSY (CALIF ONLY)
-
3097707-60114-00 SCREW, TAPPING (CALIF ONLY)SCREW, TAPPING (CALIF ONLY)
-
313BG-14884-00-00 HOSE, BEND 4 (CALIF ONLY)HOSE, BEND 4 (CALIF ONLY)
-
323BG-14885-00-00 HOSE, BEND 5 (CALIF ONLY)HOSE, BEND 5 (CALIF ONLY)
-
333BG-14873-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
343BG-14874-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
3590468-08104-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3642H-14714-10-00 GASKET, MUFFLER (CALIF ONLY)GASKET, MUFFLER (CALIF ONLY)
-
3742H-14857-00-00 CASE, AIR CLEANER (CALIF ONLY)CASE, AIR CLEANER (CALIF ONLY)
-
383BG-14858-00-00 CAP, CASE (CALIF ONLY)CAP, CASE (CALIF ONLY)
-
3995307-05600-00 NUT (CALIF ONLY)NUT (CALIF ONLY)
-
4092907-05200-00 WASHER (CALIF ONLY)WASHER (CALIF ONLY)
-
4190202-05057-00 WASHER, PLATE (CALIF ONLY)WASHER, PLATE (CALIF ONLY)
-
423BM-14867-00-00 BRACKET (CALIF ONLY)BRACKET (CALIF ONLY)
-
433BG-13542-00-00 HOSE, VACUUM SENSING 1 (CALIF ONLY)HOSE, VACUUM SENSING 1 (CALIF ONLY)
-
4490467-08092-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
451TA-14881-00-00 HOSE, BEND 1 (CALIF ONLY)HOSE, BEND 1 (CALIF ONLY)
