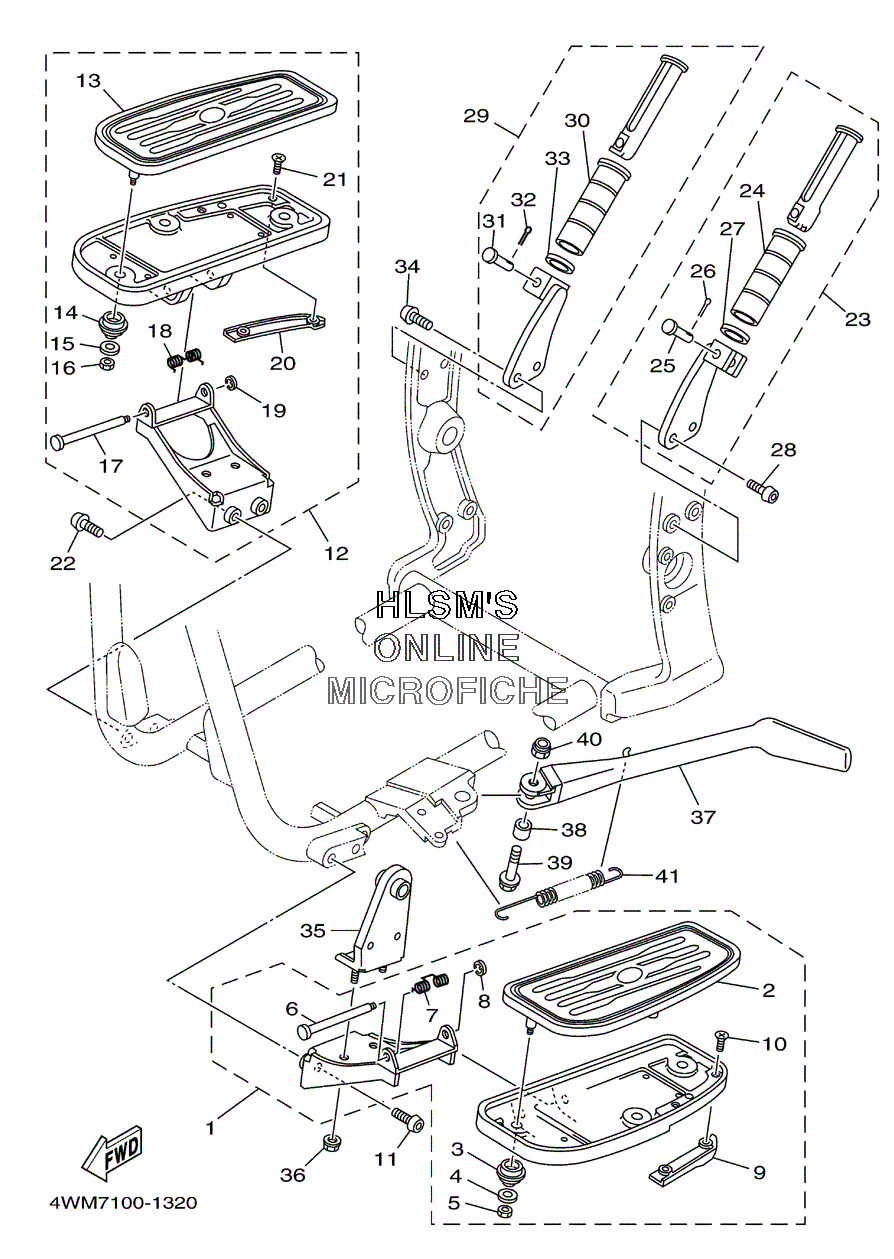

STAND W/ FOOTREST для Yamaha XV 1600 ALE ROAD STAR LTD - 2003 года выпуска`
-
№АртикулНазвание
-
14WM-27410-10-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
24WM-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
34WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
490201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
595617-05100-00 ......NUT, U......NUT, U
-
64NK-27427-00-00 ...SHAFT...SHAFT
-
74NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
899001-06600-00 ...CIRCLIP...CIRCLIP
-
94WM-27496-00-00 ...MOLE 1...MOLE 1
-
1098707-05010-00 ......SCREW, FLAT HEAD......SCREW, FLAT HEAD
-
1192017-10030-00 BOLT, BUTTONBOLT, BUTTON
-
124WM-27420-10-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
134WM-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
144WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
1590201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
1695617-05100-00 ......NUT, U......NUT, U
-
174NK-27427-00-00 ...SHAFT...SHAFT
-
184NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
1999001-06600-00 ...CIRCLIP...CIRCLIP
-
204WM-27497-00-00 ...MOLE 2...MOLE 2
-
2198707-05010-00 ......SCREW, FLAT HEAD......SCREW, FLAT HEAD
-
2292017-10030-00 BOLT, BUTTONBOLT, BUTTON
-
234WM-27430-10-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
244WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
2590240-06146-00 ...PIN, CLEVIS...PIN, CLEVIS
-
2691490-20015-00 ......PIN, COTTER......PIN, COTTER
-
2790201-210U0-00 ...WASHER, PLATE...WASHER, PLATE
-
2890111-08002-00 BOLTBOLT
-
294WM-27440-10-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
304WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
3190240-06146-00 ...PIN, CLEVIS...PIN, CLEVIS
-
3291490-20015-00 ......PIN, COTTER......PIN, COTTER
-
3390201-210U0-00 ...WASHER, PLATE...WASHER, PLATE
-
3490111-08002-00 BOLTBOLT
-
354WM-27443-00-00 BRACKET 3BRACKET 3
-
3690185-08169-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
374WM-27311-00-00 STAND, SIDESTAND, SIDE
-
3890387-1007K-00 COLLARCOLLAR
-
3995814-10040-00 BOLT, FLANGEBOLT, FLANGE
-
4090185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190506-29358-00 SPRING, TENSIONSPRING, TENSION
