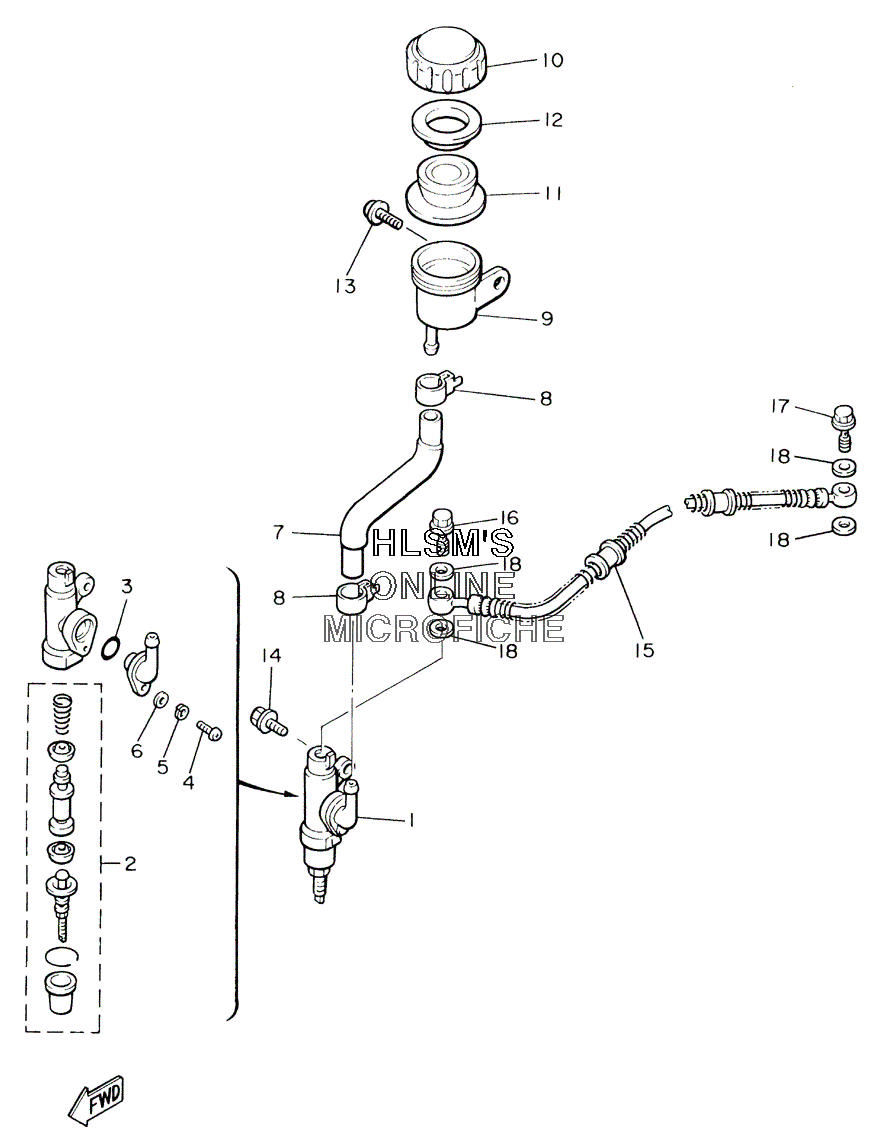

BRAKE - REAR MASTER CYLINDER для Yamaha VMX 1200 V-MAX - 2003 года выпуска`
-
№АртикулНазвание
-
11FK-25850-50-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
21FK-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
393210-15566-00 ......O-RING......O-RING
-
498517-04012-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
592990-04100-00 ......WASHER, SPRING......WASHER, SPRING
-
692990-04600-00 ......WASHER, PLATE......WASHER, PLATE
-
71FK-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
890467-14057-00 CLIPCLIP
-
931A-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
102KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
11360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
122GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1398517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1490105-081A1-00 BOLT, FLANGEBOLT, FLANGE
-
151FK-25874-03-00 HOSE, BRAKEHOSE, BRAKE
-
1690401-10159-00 BOLT, UNIONBOLT, UNION
-
1790401-10159-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
