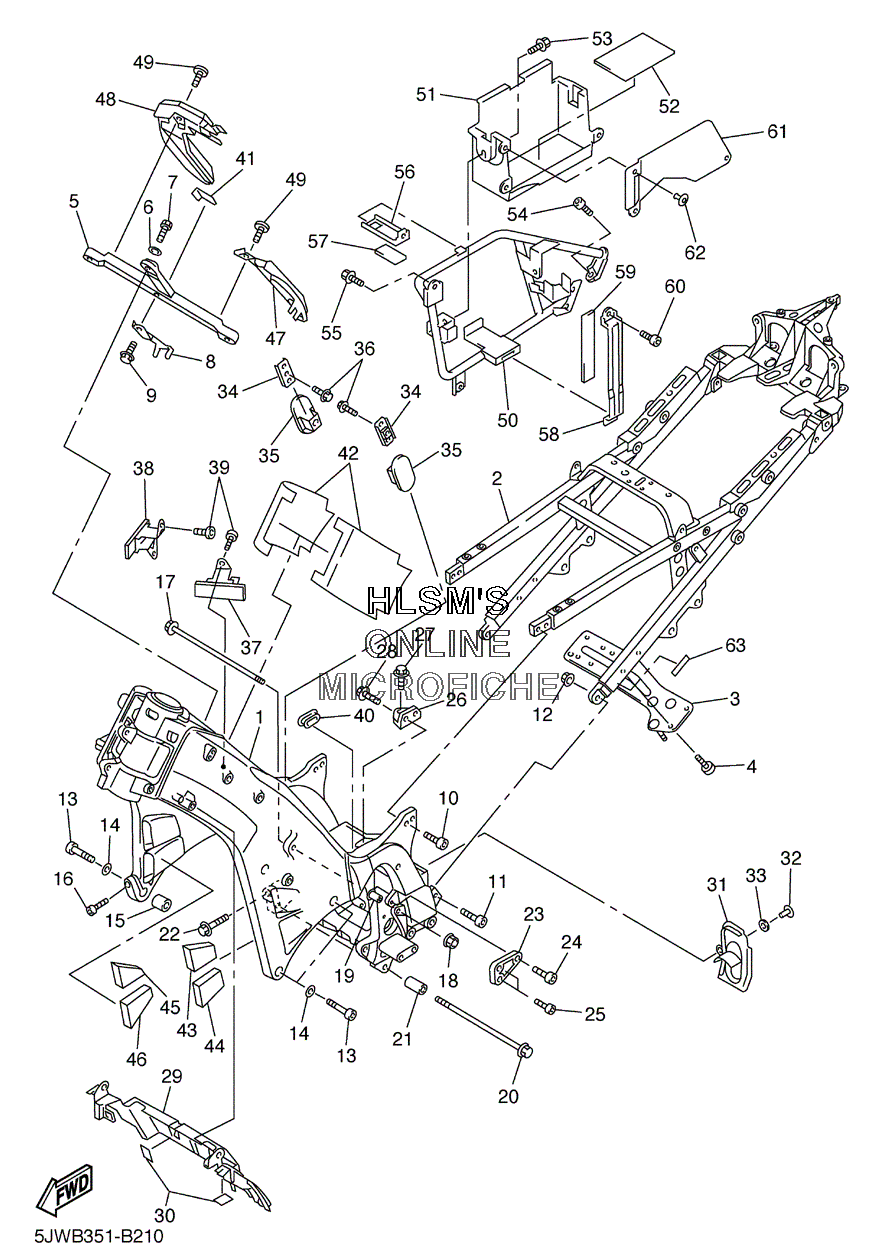

FRAME для Yamaha FJR 1300 - 2003 года выпуска
-
№АртикулНазвание
-
15JW-21110-02-00 FRAME COMP.FRAME COMP.
-
25JW-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
35JW-2115A-00-00 MEMBER 1MEMBER 1
-
490149-06022-00 SCREWSCREW
-
55JW-21119-00-00 CROSS-TUBECROSS-TUBE
-
690201-106F2-00 WASHER, PLATEWASHER, PLATE
-
795817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
85JW-21339-00-00 GUIDE, WIREGUIDE, WIRE
-
995027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1091317-08020-00 BOLTBOLT
-
1191314-10030-00 BOLTBOLT
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1391314-12055-00 BOLTBOLT
-
1492907-12600-00 WASHER, PLATEWASHER, PLATE
-
1590387-1312P-00 COLLARCOLLAR
-
1691314-08030-00 BOLTBOLT
-
1790105-10416-00 BOLT, FLANGEBOLT, FLANGE
-
1890179-10696-00 NUTNUT
-
195EB-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
2090105-10730-00 BOLT, FLANGEBOLT, FLANGE
-
2190560-10364-00 SPACERSPACER
-
2295027-08035-00 BOLT, FLANGEBOLT, FLANGE
-
235JW-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
2491314-10020-00 BOLTBOLT
-
2591314-08016-00 BOLTBOLT
-
265JW-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2790101-10M05-00 BOLTBOLT
-
2895814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
295JW-2137Y-01-00 GUIDE, AIRGUIDE, AIR
-
305JW-2139X-00-00 DAMPERDAMPER
-
315JW-2147J-00-00 COVER, SHAFT 1COVER, SHAFT 1
-
3290269-07076-00 RIVETRIVET
-
3390202-06058-00 WASHER, PLATEWASHER, PLATE
-
3490338-06143-00 PLUGPLUG
-
355JW-2118U-00-00 BRACKET 3BRACKET 3
-
365JW-2113N-00-00 BRACKET, INNER 1BRACKET, INNER 1
-
3795027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
385JW-2113R-00-00 BRACKET, INNER 2BRACKET, INNER 2
-
395JW-2113R-10-00 BRACKET, INNER 2BRACKET, INNER 2
-
4090149-06304-00 SCREWSCREW
-
415JW-2143A-00-00 CAPCAP
-
425JW-2139X-00-00 DAMPERDAMPER
-
435JW-21852-00-00 DAMPERDAMPER
-
445JW-21266-00-00 SHEET 1SHEET 1
-
455JW-21266-10-00 SHEET 1SHEET 1
-
465JW-21267-00-00 SHEET 2SHEET 2
-
475JW-21267-10-00 SHEET 2SHEET 2
-
485JW-2117F-00-00 COVERCOVER
-
495JW-2117M-00-00 COVER 2COVER 2
-
5090109-065F3-00 BOLTBOLT
-
515JW-28321-00-00 STAY 1STAY 1
-
525JW-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
535EJ-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
5490119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5591317-06012-00 BOLTBOLT
-
5695817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
575JW-28357-00-00 STAY 2STAY 2
-
585JW-28425-00-00 DAMPER 3DAMPER 3
-
595JW-28358-00-00 STAY 3STAY 3
-
605JW-28435-00-00 DAMPER 4DAMPER 4
-
6191317-06012-00 BOLTBOLT
-
625JW-2172W-00-00 COVERCOVER
-
6390269-06001-00 RIVETRIVET
-
645JW-2151A-02-00 LABEL 1LABEL 1
