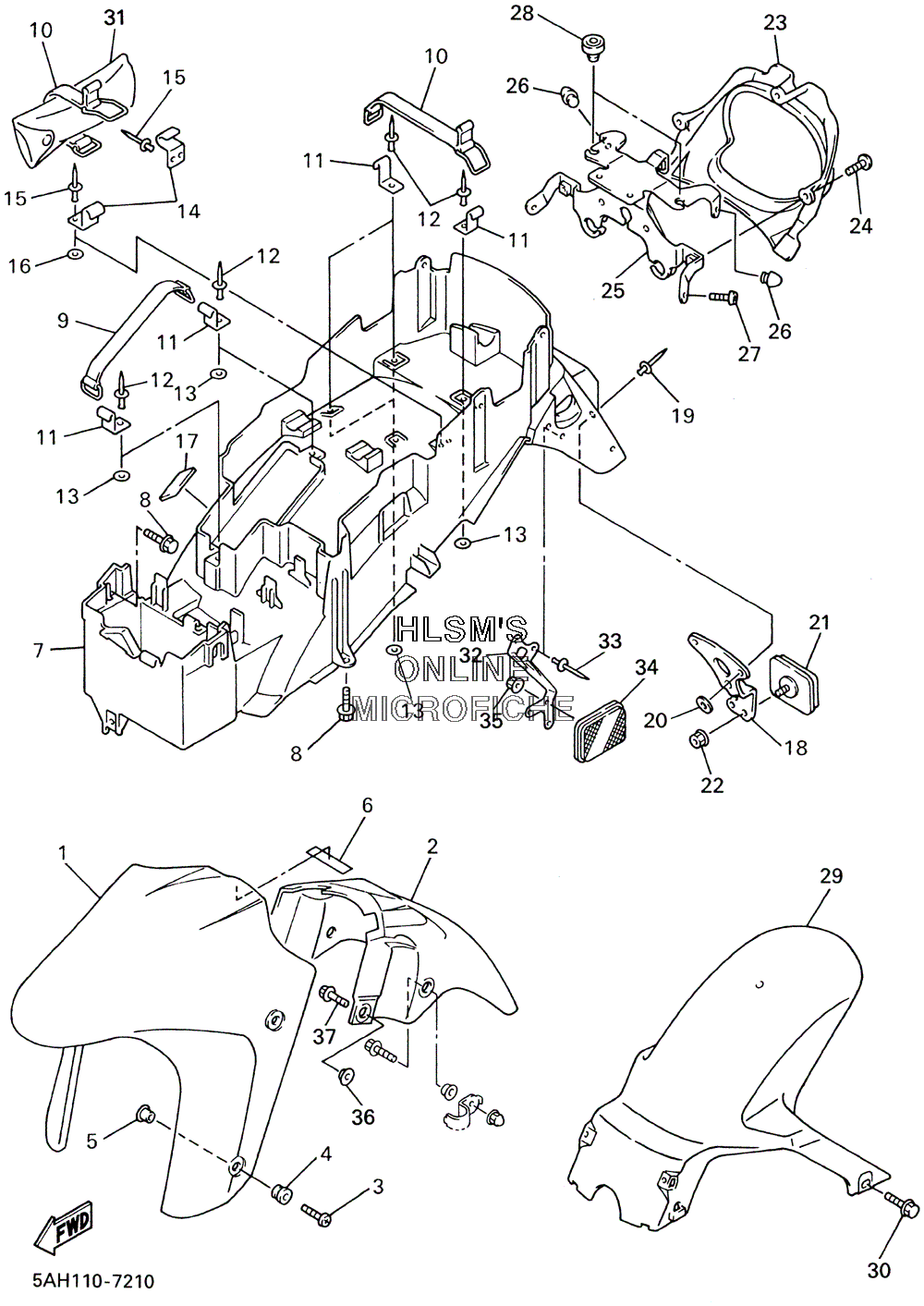

FENDER - FRONT / REAR для Yamaha YZF 600 R - 2002 года выпуска`
-
№АртикулНазвание
-
14SV-21511-00-P5 FENDER, FRONT (DEEP PURPLISH BLUE METALLIC (DPBMC))FENDER, FRONT (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
14SV-21511-00-4B FENDER, FRONT (BLACK (BL2))FENDER, FRONT (BLACK (BL2))
-
24SV-21556-00-00 FENDER, FRONT 2FENDER, FRONT 2
-
390154-06061-00 SCREW, BINDINGSCREW, BINDING
-
490480-12072-00 GROMMETGROMMET
-
590387-065J6-00 COLLARCOLLAR
-
61LJ-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
74TV-21611-00-00 FENDER, REARFENDER, REAR
-
890119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
94J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
1036X-2811G-00-00 BANDBAND
-
114HM-2162A-00-00 HOOKHOOK
-
1290267-40076-00 RIVET, BLINDRIVET, BLIND
-
1390201-044H9-00 WASHER, PLATEWASHER, PLATE
-
143VD-21366-00-00 HOOK, TOOL BANDHOOK, TOOL BAND
-
1590267-40076-00 RIVET, BLINDRIVET, BLIND
-
1690201-044H9-00 WASHER, PLATEWASHER, PLATE
-
173XV-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
184TV-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
1990267-40076-00 RIVET, BLINDRIVET, BLIND
-
2090201-044H9-00 WASHER, PLATEWASHER, PLATE
-
214KM-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2295707-05500-00 NUT, FLANGENUT, FLANGE
-
234TV-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
2490154-05059-00 SCREW, BINDINGSCREW, BINDING
-
254TV-2117E-11-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2642U-21639-00-00 DAMPER 2DAMPER 2
-
2792017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
284G0-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
294JH-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
3097017-06012-00 BOLTBOLT
-
311WG-W2810-00-00 TOOL KITTOOL KIT
-
324FM-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
3390267-40029-00 RIVET, BLINDRIVET, BLIND
-
344KM-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3595707-05500-00 NUT, FLANGENUT, FLANGE
-
3690387-07717-00 COLLARCOLLAR
-
3790119-06172-00 BOLT, WITH WASHERBOLT, WITH WASHER
