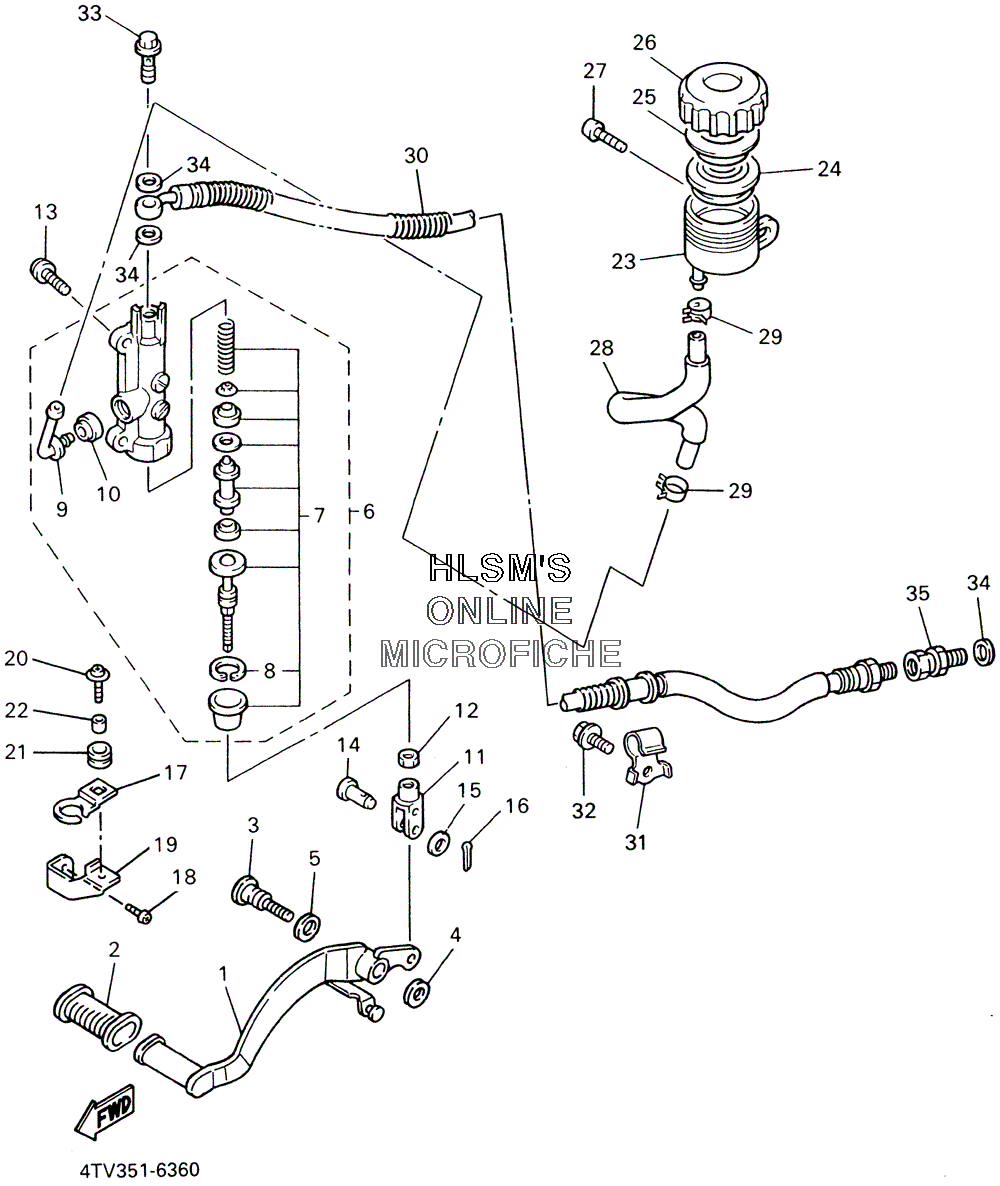

BRAKE - REAR MASTER CYLINDER для Yamaha YZF 600 R CALIFORNIA - 2002 года выпуска`
-
№АртикулНазвание
-
14JH-27211-10-00 PEDAL, BRAKEPEDAL, BRAKE
-
222N-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
34SV-27261-00-00 SHAFTSHAFT
-
490201-08759-00 WASHER, PLATEWASHER, PLATE
-
590206-14086-00 WASHER, WAVEWASHER, WAVE
-
64BH-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
74BH-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
83LN-2585G-00-00 ......CIRCLIP, MASTER CYLINDER......CIRCLIP, MASTER CYLINDER
-
94BP-2582A-00-00 ...CONNECTOR...CONNECTOR
-
104BP-2585F-00-00 ...0-RING...0-RING
-
1147X-27222-00-00 JOINTJOINT
-
1295317-08700-00 NUTNUT
-
1392014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1490240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1590201-08083-00 WASHER, PLATEWASHER, PLATE
-
1691490-20015-00 PIN, COTTERPIN, COTTER
-
174SV-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
1898517-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
194SV-21441-00-00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
2098507-06150-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2190480-12607-00 GROMMETGROMMET
-
2290387-06023-00 COLLARCOLLAR
-
2331A-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
24360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
252GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
262KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
2798517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
284JH-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2990467-14057-00 CLIPCLIP
-
304JH-25874-01-00 HOSE, BRAKEHOSE, BRAKE
-
3190461-08031-00 CLAMPCLAMP
-
3295817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3390401-10159-00 BOLT, UNIONBOLT, UNION
-
3490201-10118-00 WASHER, PLATEWASHER, PLATE
-
353LC-25885-00-00 JOINTJOINT
