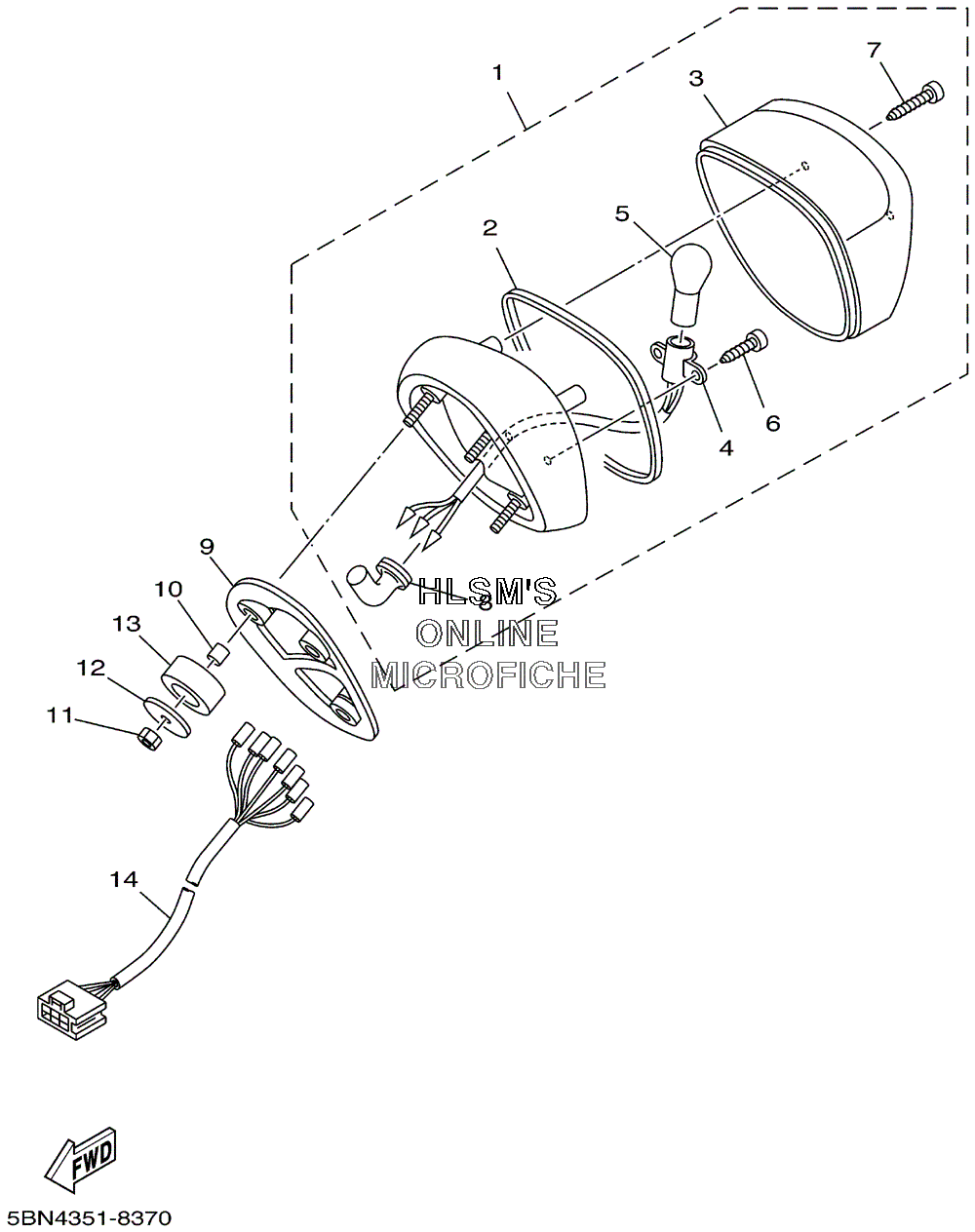

TAILLIGHT для Yamaha XVS 650 A V-STAR CLASSIC - 2002 года выпуска
-
№АртикулНазвание
-
15BN-84700-01-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
21VJ-14462-00-00 ...SEAL...SEAL
-
34NK-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
45BN-84735-00-00 ...CORD ASSY...CORD ASSY
-
5256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
697707-40616-00 ...SCREW, TAPPING...SCREW, TAPPING
-
797780-40525-00 ...SCREW, TAPPING...SCREW, TAPPING
-
85BN-84154-00-00 ...GROMMET...GROMMET
-
94NK-84527-01-00 DAMPERDAMPER
-
1090387-07598-00 COLLARCOLLAR
-
1195317-06600-00 NUTNUT
-
1290201-065G8-00 WASHER, PLATEWASHER, PLATE
-
135BN-84553-00-00 DAMPERDAMPER
-
145BN-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
