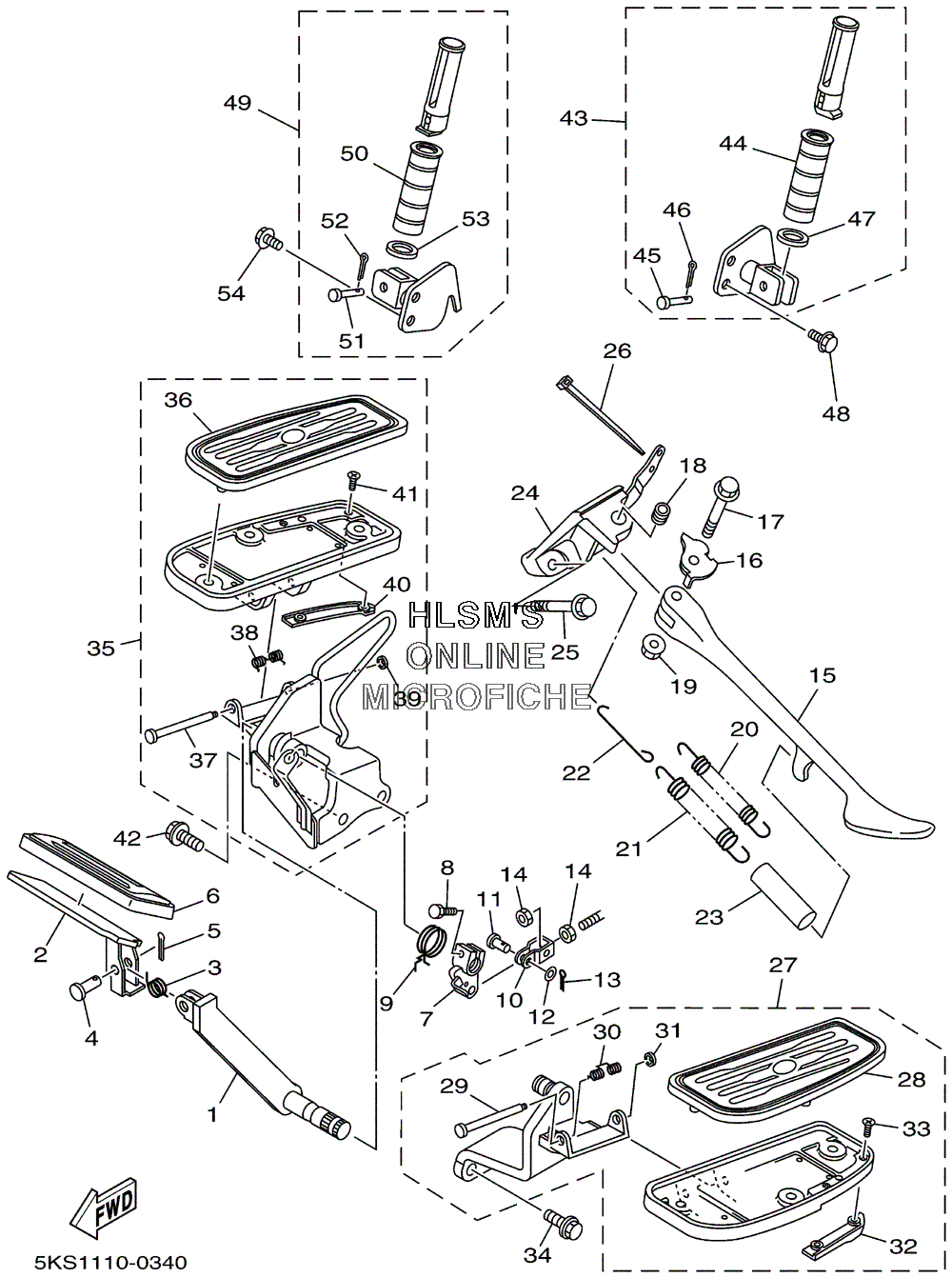

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha XVS 1100 A V-STAR CLASSIC - 2002 года выпуска`
-
№АртикулНазвание
-
15KS-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-186B1-00 SPRING, TORSIONSPRING, TORSION
-
491701-06022-00 PIN, CLEVISPIN, CLEVIS
-
591401-20012-00 PIN, COTTERPIN, COTTER
-
64NK-27285-00-00 CAPCAP
-
75EL-27262-00-00 LEVERLEVER
-
897004-06020-00 BOLTBOLT
-
95EL-27216-00-00 SPRING, RETURNSPRING, RETURN
-
104BP-27222-00-00 JOINTJOINT
-
1190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-20012-00 PIN, COTTERPIN, COTTER
-
1495307-08700-00 NUTNUT
-
154KU-27311-13-00 STAND, SIDESTAND, SIDE
-
165EL-27322-01-00 WASHERWASHER
-
1790105-10012-00 BOLT, FLANGEBOLT, FLANGE
-
1890387-1003G-00 COLLARCOLLAR
-
1995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090506-23490-00 SPRING, TENSIONSPRING, TENSION
-
2190506-29507-00 SPRING, TENSIONSPRING, TENSION
-
225EL-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
2390445-16641-00 HOSE (L60)HOSE (L60)
-
245EL-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
2595817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
261UA-82591-00-00 BANDBAND
-
275KS-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
284XY-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
294NK-27427-00-00 ...SHAFT...SHAFT
-
304NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
3199001-06600-00 ...CIRCLIP...CIRCLIP
-
324WM-27496-00-00 ...MOLE 1...MOLE 1
-
3390152-05008-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
3490105-102A3-00 BOLT, FLANGEBOLT, FLANGE
-
355KS-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
364XY-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
374NK-27427-00-00 ...SHAFT...SHAFT
-
384NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
3999001-06600-00 ...CIRCLIP...CIRCLIP
-
404WM-27497-00-00 ...MOLE 2...MOLE 2
-
4190152-05008-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
4290105-102A3-00 BOLT, FLANGEBOLT, FLANGE
-
435EL-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
444WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
4591701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4691401-20012-00 ...PIN, COTTER...PIN, COTTER
-
4790201-210U0-00 ...WASHER, PLATE...WASHER, PLATE
-
4890105-082A5-00 BOLT, FLANGEBOLT, FLANGE
-
495EL-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
504WM-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
5191701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
5291401-20012-00 ...PIN, COTTER...PIN, COTTER
-
5390201-210U0-00 ...WASHER, PLATE...WASHER, PLATE
-
5490105-082A5-00 BOLT, FLANGEBOLT, FLANGE
