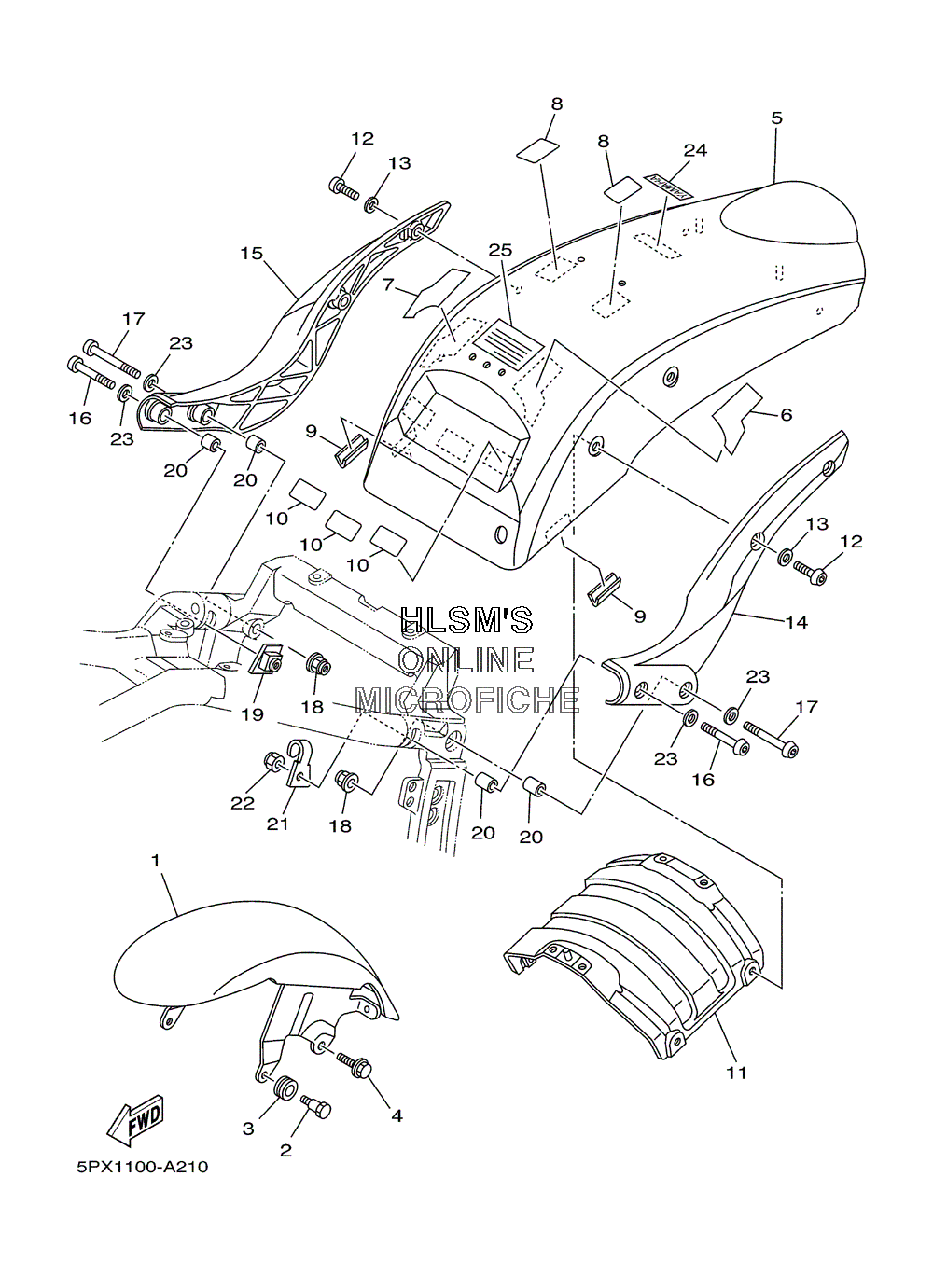

FENDER - FRONT / REAR для Yamaha XV 1700 PC ROAD STAR WARRIOR - 2002 года выпуска`
-
№АртикулНазвание
-
15PX-YK215-00-P1 FRONT FENDER COMP. (DARK GRAY METALLIC (DNMA))FRONT FENDER COMP. (DARK GRAY METALLIC (DNMA))
-
15PX-YK215-00-P0 FRONT FENDER COMP. (DARK VIOLET METALLIC (DVMA))FRONT FENDER COMP. (DARK VIOLET METALLIC (DVMA))
-
15PX-YK215-00-P2 FRONT FENDER COMP. (VIVID RED (VRC7))FRONT FENDER COMP. (VIVID RED (VRC7))
-
290109-08020-00 BOLTBOLT
-
390480-15397-00 GROMMETGROMMET
-
495027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
55PX-YK216-00-P1 REAR FENDER C0MP. (DARK GRAY METALLIC (DNMA))REAR FENDER C0MP. (DARK GRAY METALLIC (DNMA))
-
55PX-YK216-00-P2 REAR FENDER C0MP. (VIVID RED (VRC7))REAR FENDER C0MP. (VIVID RED (VRC7))
-
55PX-YK216-00-P0 REAR FENDER C0MP. (DARK VIOLET METALLIC (DVMA))REAR FENDER C0MP. (DARK VIOLET METALLIC (DVMA))
-
65PX-2173M-00-00 SEAL 3SEAL 3
-
75PX-2173N-00-00 SEAL 4SEAL 4
-
85PX-21669-00-00 SEALSEAL
-
93VD-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
105PX-21669-00-00 SEALSEAL
-
115PX-21643-00-00 STAY, REARSTAY, REAR
-
1292014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1392990-08200-00 WASHER, PLAINWASHER, PLAIN
-
145PX-21613-00-P0 STAY, FENDER 1 (MAT BLACK (MBL2))STAY, FENDER 1 (MAT BLACK (MBL2))
-
155PX-21614-00-P0 STAY, FENDER 2 (MAT BLACK (MBL2))STAY, FENDER 2 (MAT BLACK (MBL2))
-
1692014-10060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790111-10005-00 BOLTBOLT
-
1895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
195PX-21295-00-00 NUTNUT
-
2099530-14016-00 PIN, DOWELPIN, DOWEL
-
215PX-21398-00-00 HANGER, HELMETHANGER, HELMET
-
2290185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390201-10M63-00 WASHER, PLATEWASHER, PLATE
-
2499247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
255PX-2179V-00-00 PLATE, EPA 1(NON CALIFORNIA)PLATE, EPA 1(NON CALIFORNIA)
-
255PX-2179R-00-00 PLATE, EPA 2 (CALIFORNIA)PLATE, EPA 2 (CALIFORNIA)
