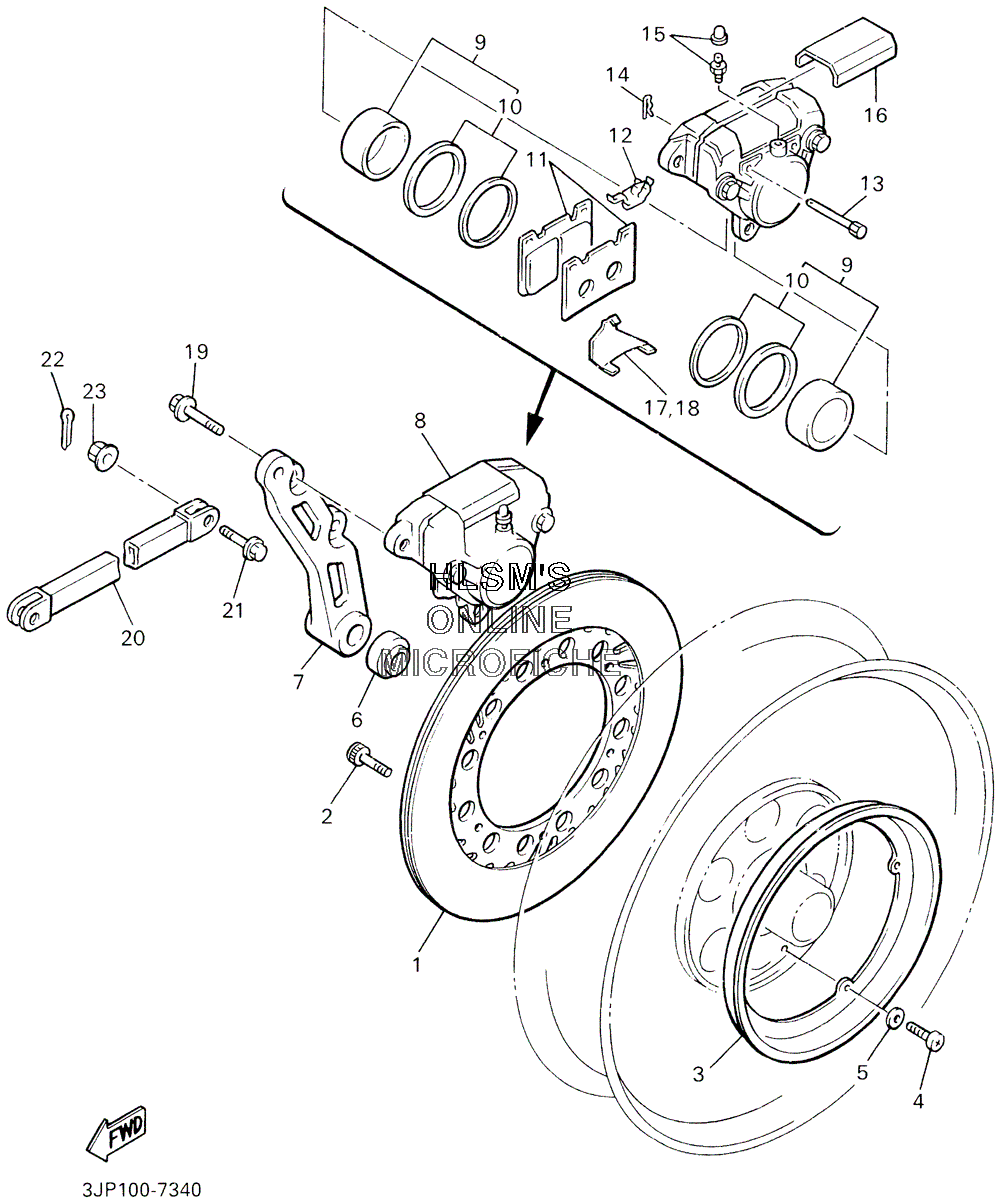

BRAKE - REAR CALIPER для Yamaha VMX 1200 V-MAX - 2002 года выпуска`
-
№АртикулНазвание
-
13JP-2582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290109-083G4-00 BOLTBOLT
-
31FK-25327-00-00 COVER, PLATECOVER, PLATE
-
498507-05020-00 SCREWSCREW
-
592907-05600-00 WASHER, PLATEWASHER, PLATE
-
690387-200J2-00 COLLARCOLLAR
-
71FK-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
84BH-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
931A-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
1031A-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
111FK-W0046-01-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
1226H-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
133HE-25924-00-00 ...PIN, PAD...PIN, PAD
-
143GM-25925-00-00 ...CLIP...CLIP
-
151J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
1641Y-25836-00-00 ...COVER, DUST...COVER, DUST
-
171FK-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
181FK-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1990105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2036Y-25371-00-00 BAR, TENSIONBAR, TENSION
-
2195814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2291490-20025-00 PIN, COTTERPIN, COTTER
-
2390179-08491-00 NUT, FLANGENUT, FLANGE
